Emission Control System - Except Evolution & SPORTBACK
›
Diagnosis
Emission Control System - Except Evolution & SPORTBACK: Diagnosis

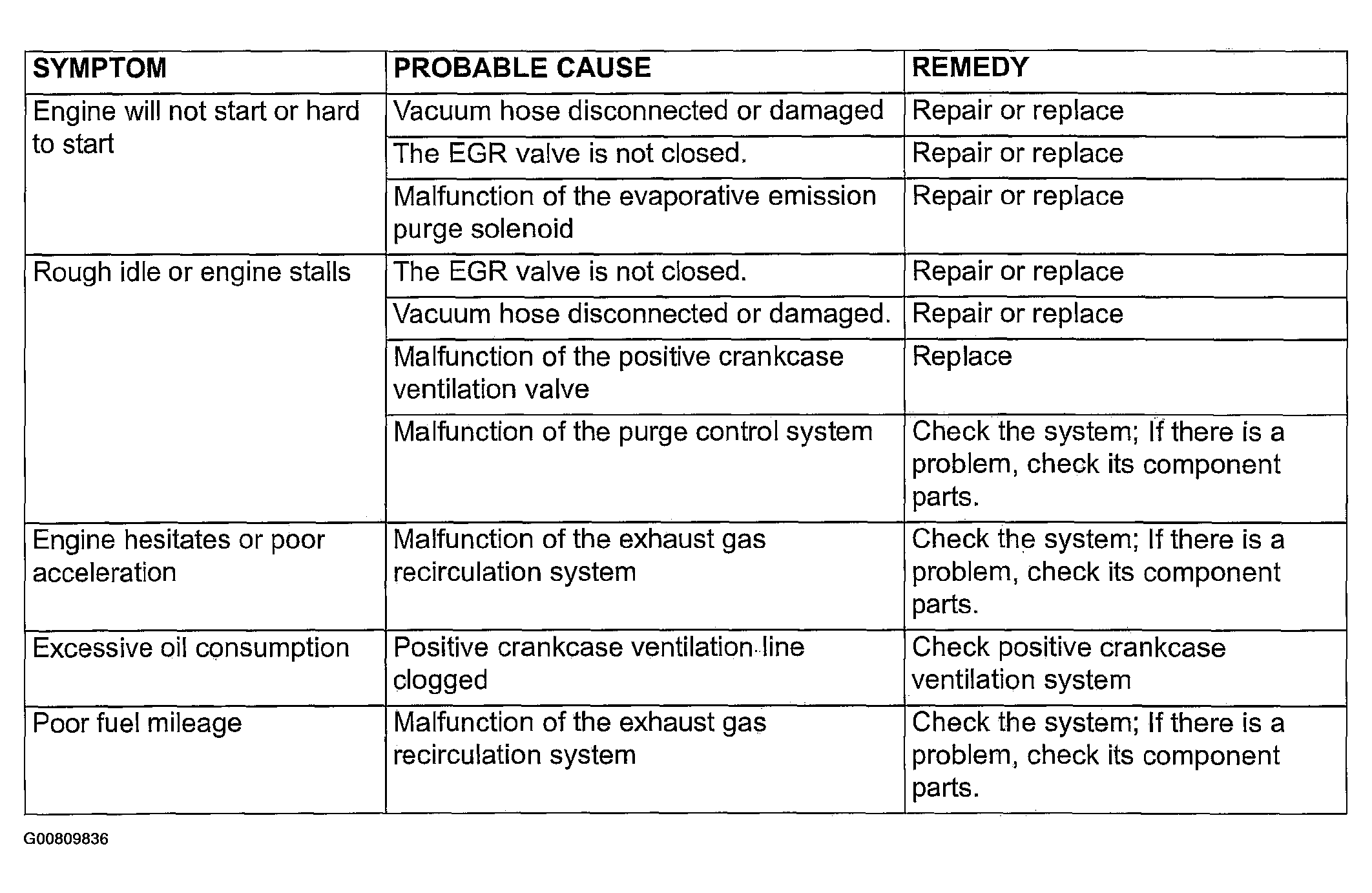

Fig 1: Diagnosis Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
