Accelerator Pedal Position Sensor <2.4L Engine>
›
Removal And Installation <2.4L Engine>
Removal And Installation <2.4L Engine>

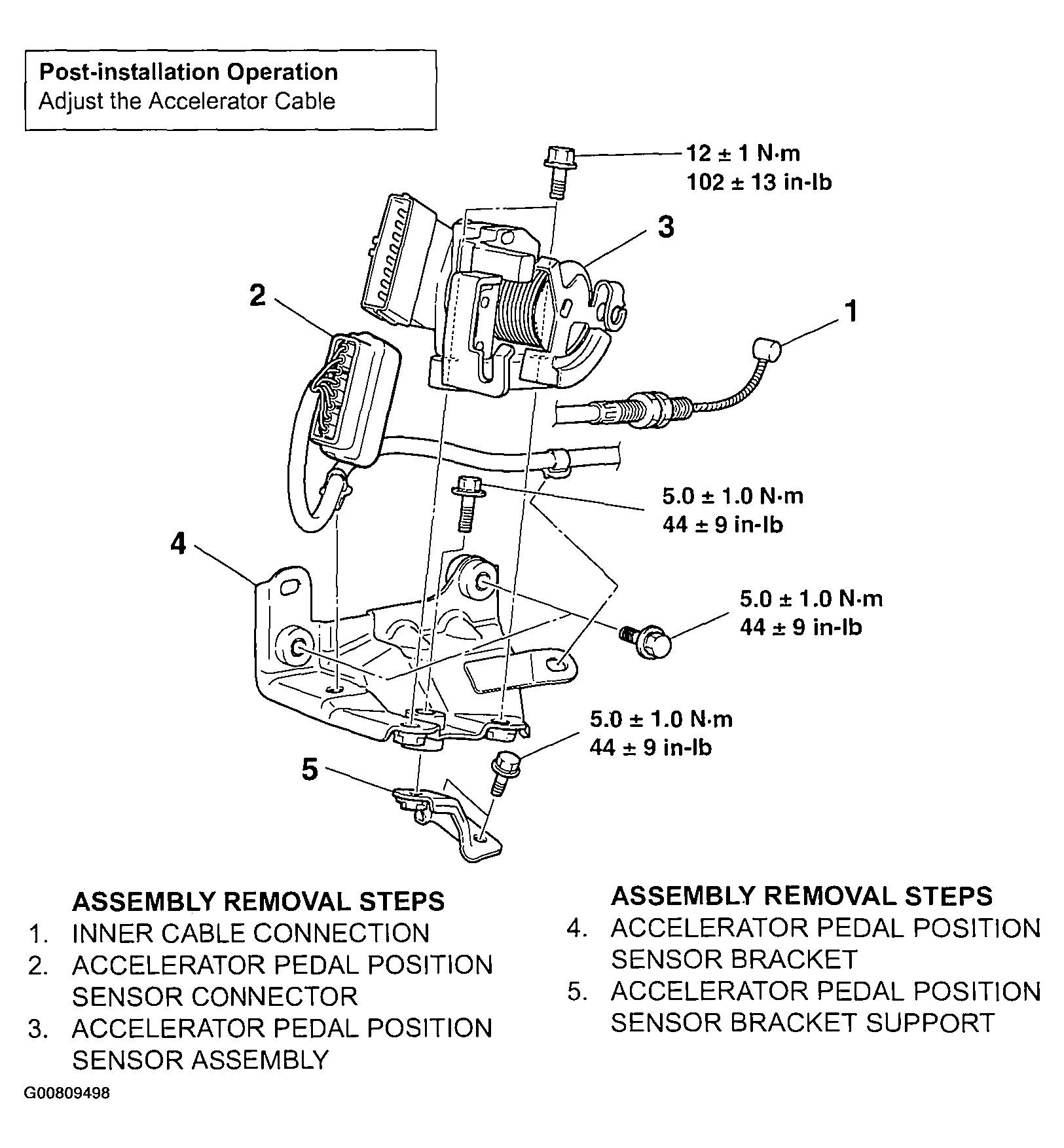

Fig 1: Removing And Installing Accelerator Pedal Position Sensor Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
