Operating The Transmitter Unlock Button Press Twice

WARNING: This page is about a different variant/trim than selected.

When the transmitter unlock button is pressed twice, the ETACS-ECU energizes its door unlock relay to operate the driver's door lock actuator and the other door lock actuators for 0.25 second each in succession. Then, the doors will be unlocked.

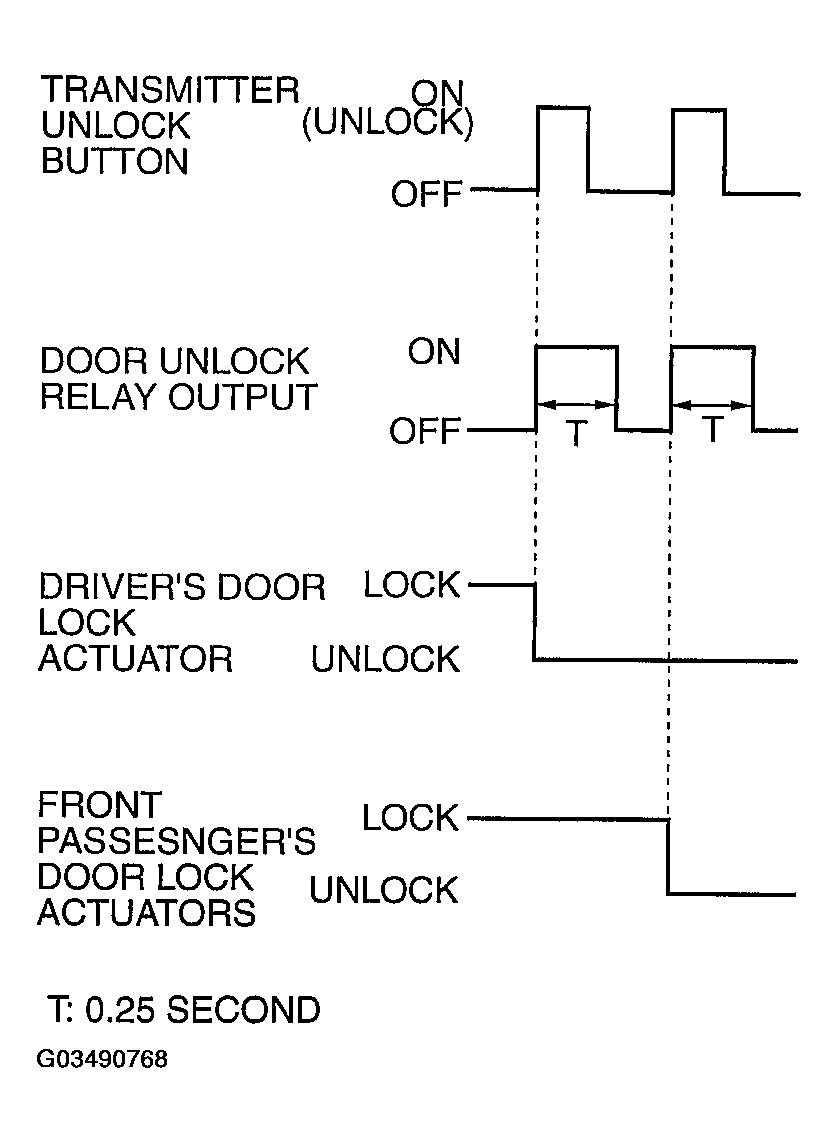

Fig 1: Identifying Transmitter Unlock Button Function (Press Twice)
G03490768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
