>>C<< Spring Pin Installation

  1. Align the pin holes in the shift rail and shift fork.
  2. Insert the new spring pin. Push it in as shown so that the slit and center axis of the rail are aligned.

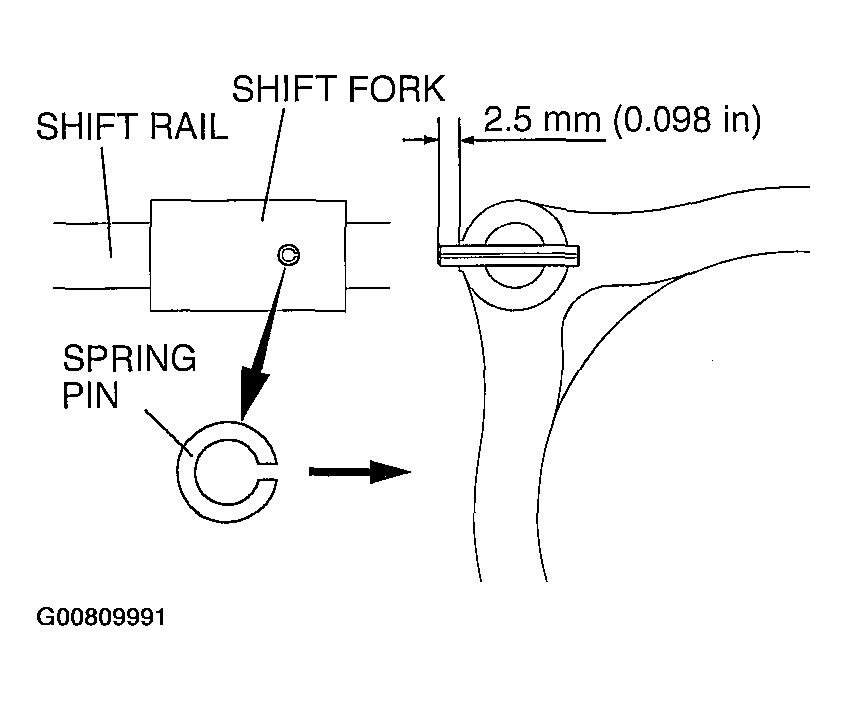

    Fig 1: Aligning Pin Holes In Shift Rail And Shift Fork
    G00809991Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
