Disassembly And Assembly: Notes

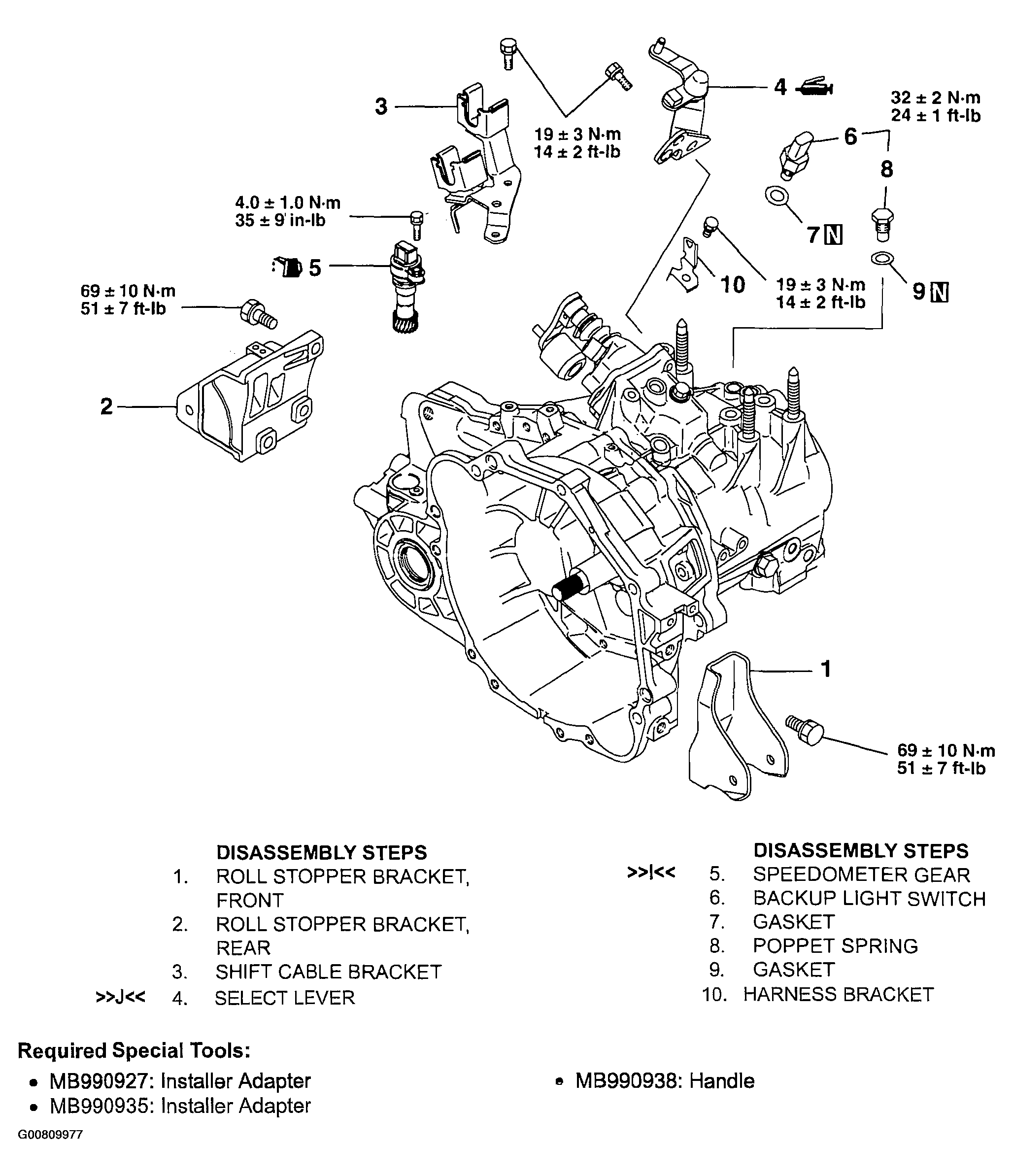

Fig 1: Disassembling And Assembling Transaxle (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

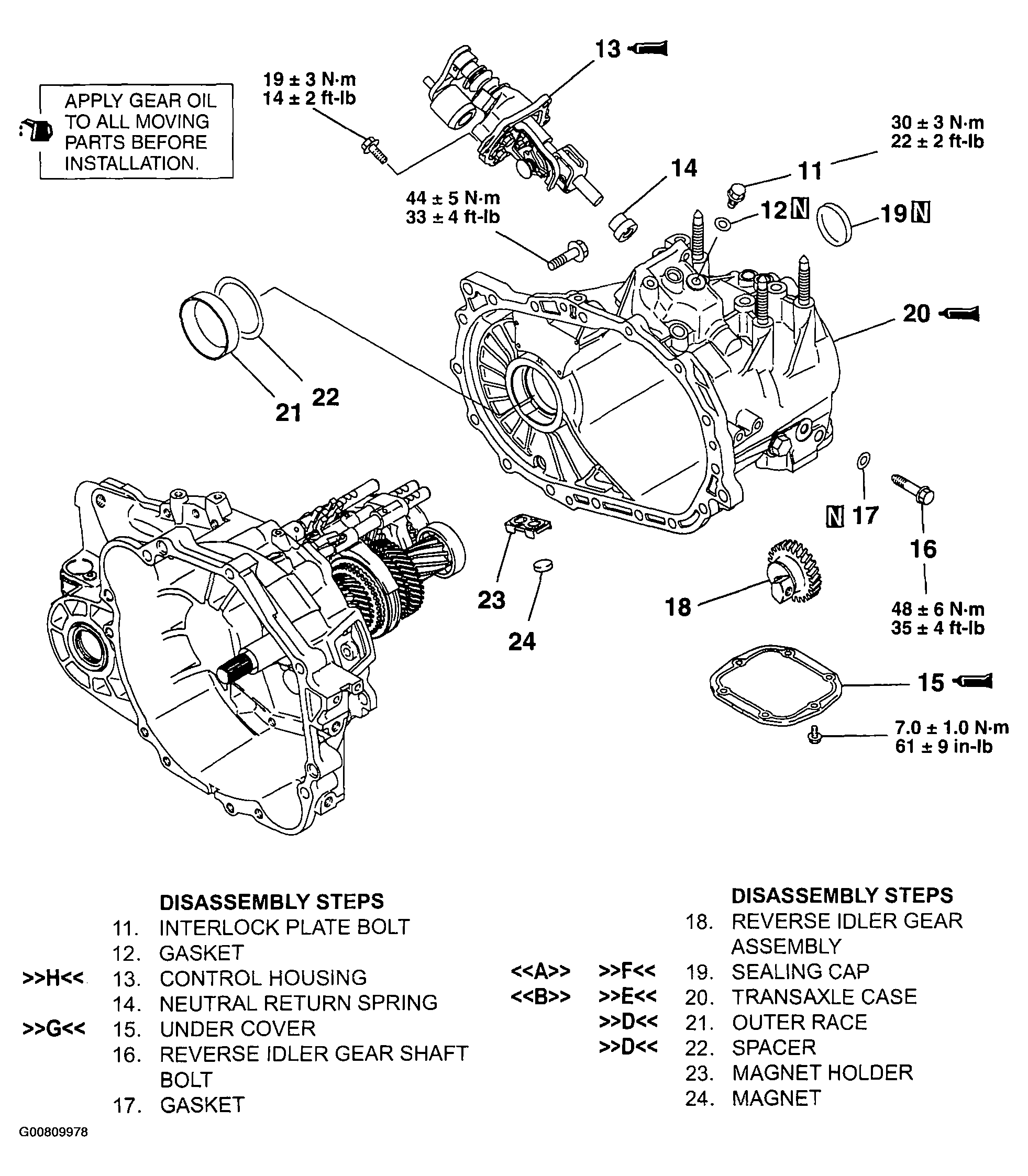

Fig 2: Disassembling And Assembling Transaxle (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

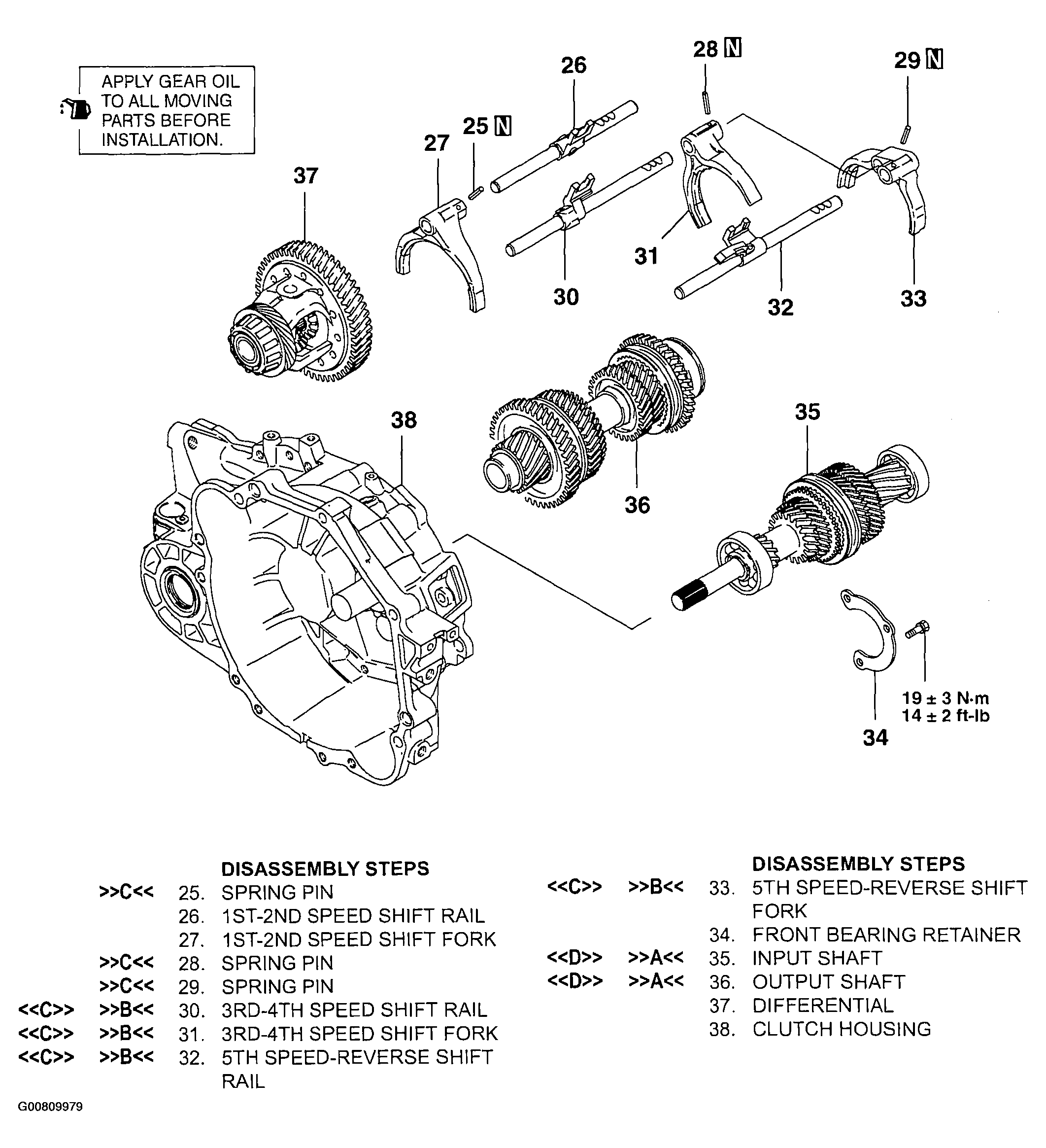

Fig 3: Disassembling And Assembling Transaxle (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
