Manual Transaxle Overhaul - Except Evolution
›
Transmission Case
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

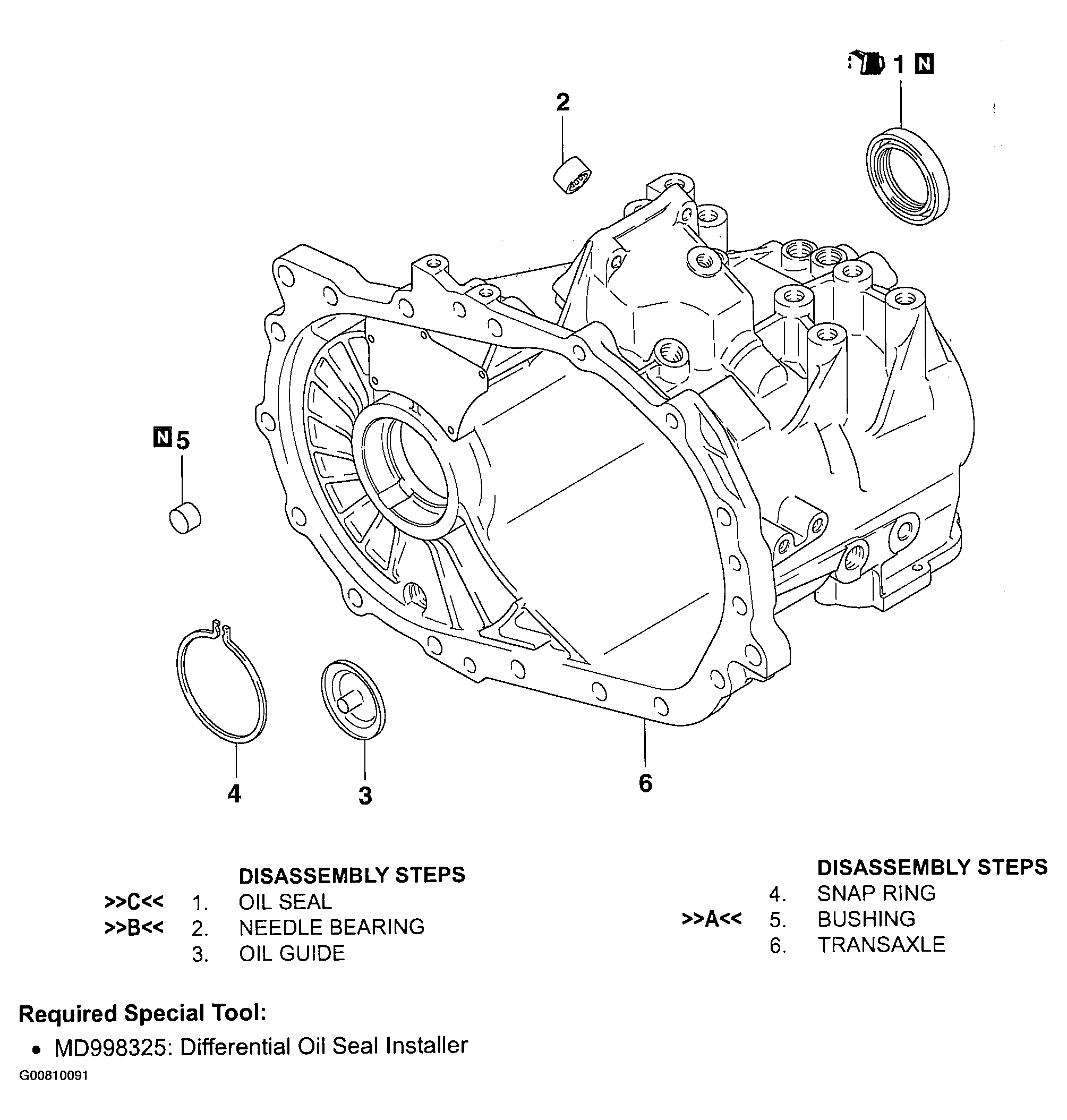

Fig 1: Disassembling And Assembling Transmission Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
