Removal And Installation: Notes

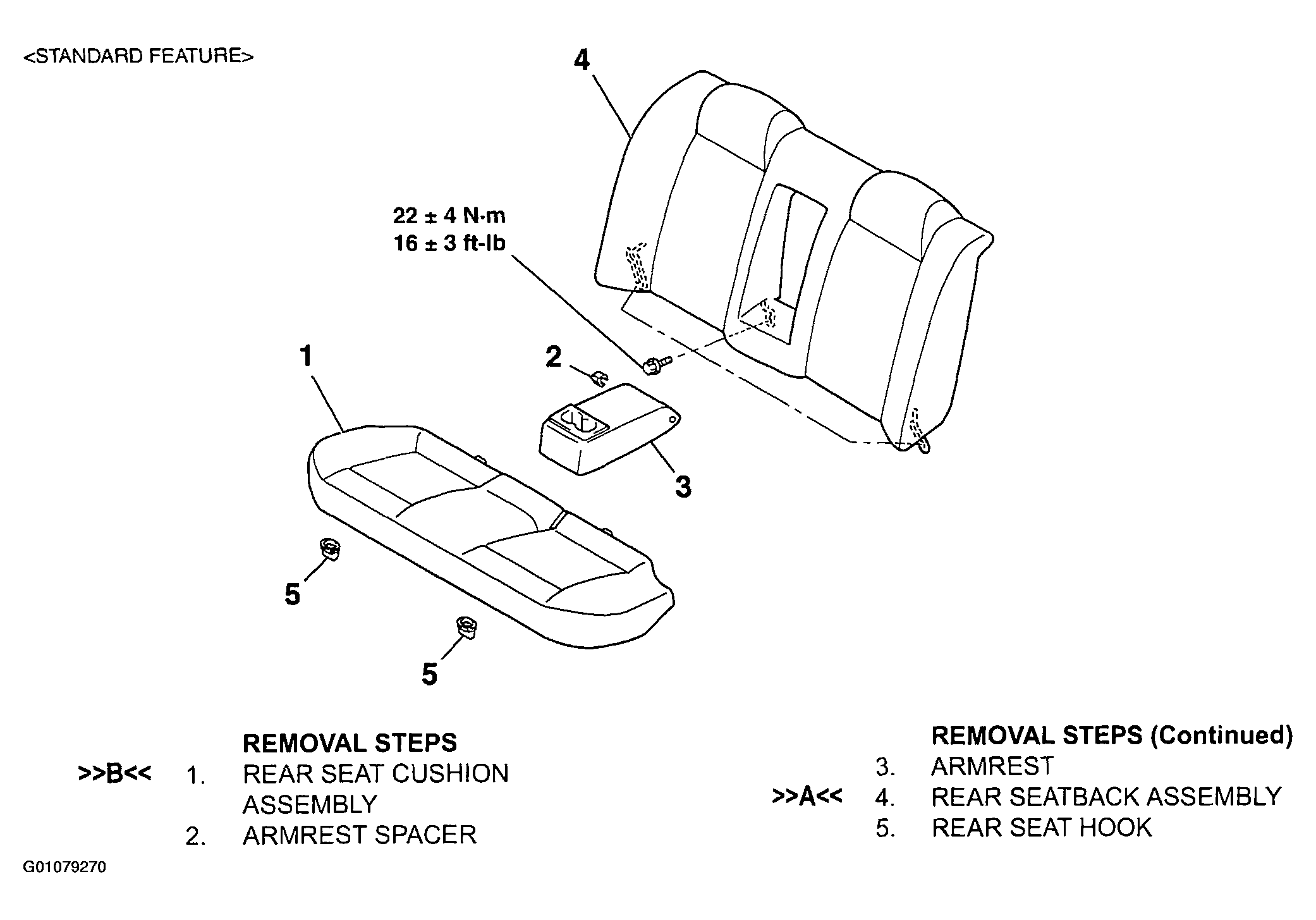

Fig 1: Removing Rear Seat Assembly (Standard)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

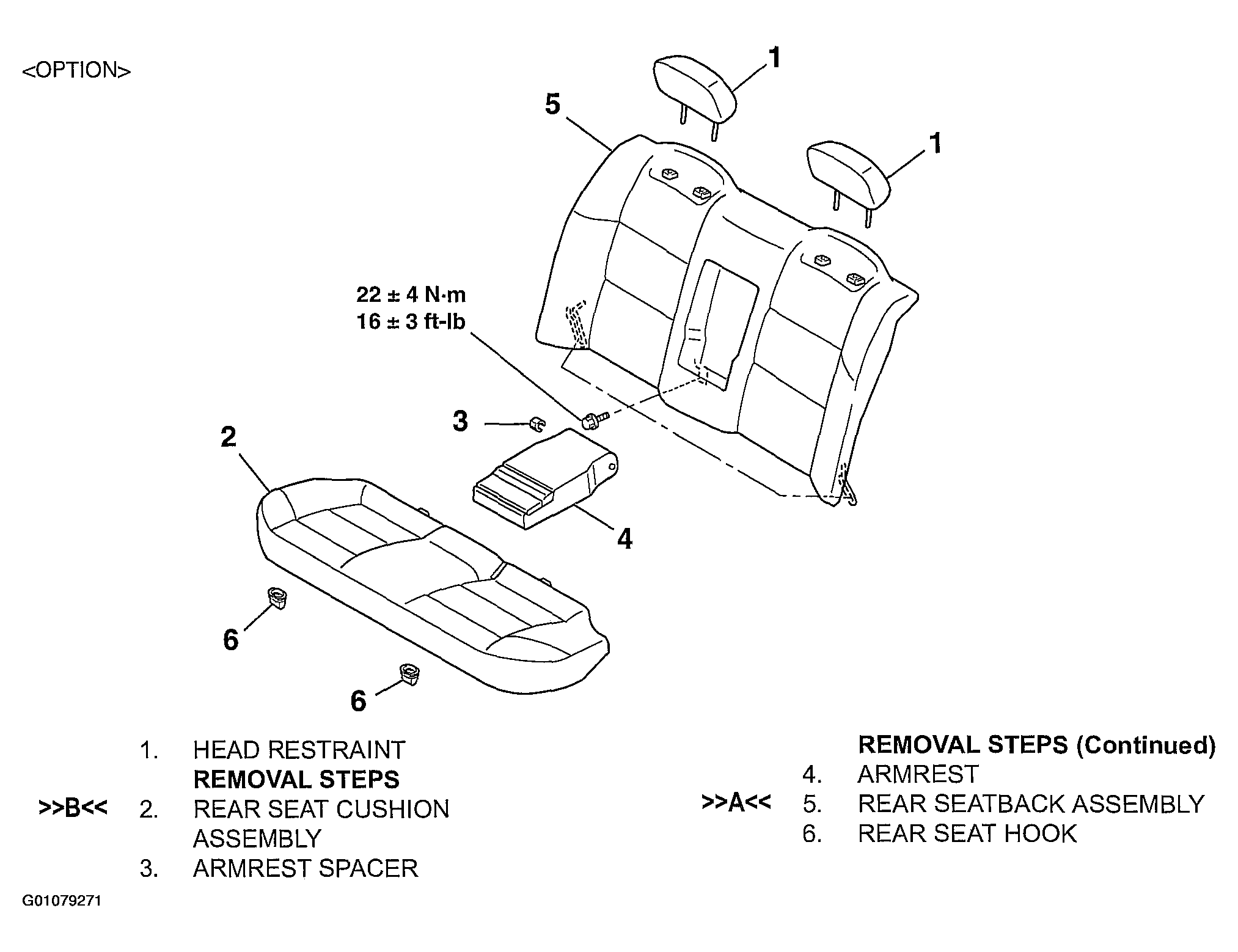

Fig 2: Removing Rear Seat Assembly (Option)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
