Door Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

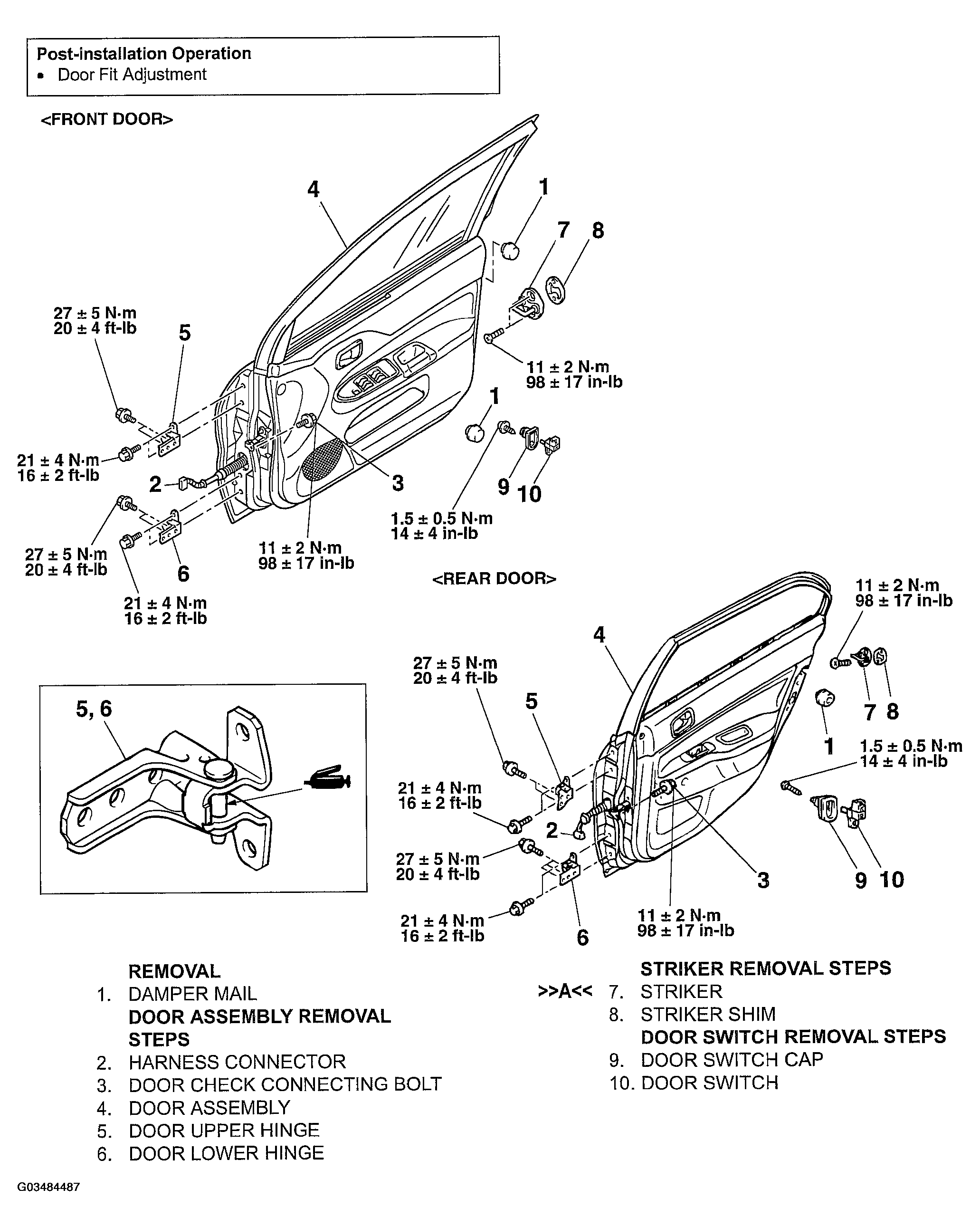

Fig 1: Exploded View Of Front Door Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
