OEM Connector End Views - Evolution
›
Connector End Views
›
Combination Meter Connector C-02 Connector End View
Combination Meter Connector C-02 Connector End View

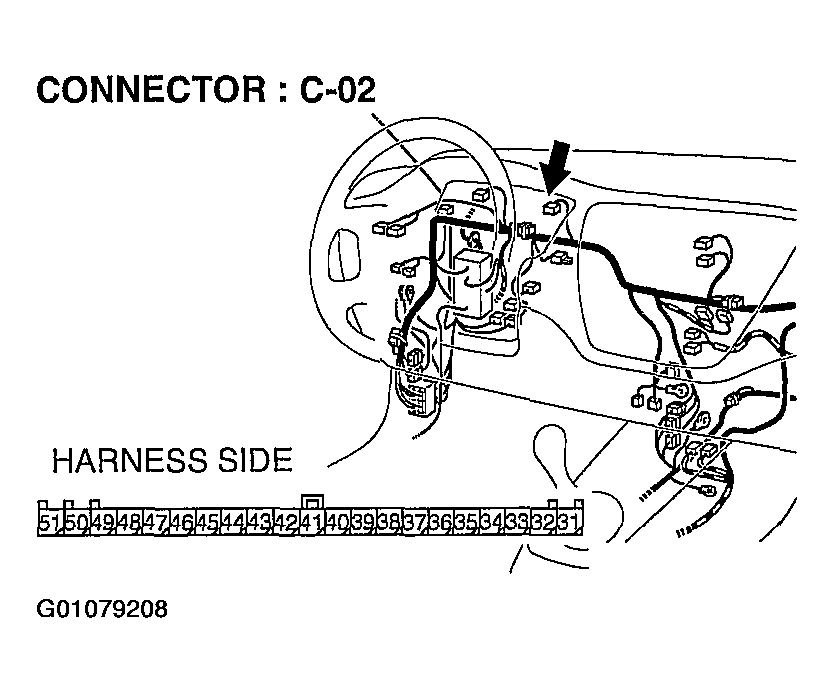

Fig 1: Combination Meter Connector C-02 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
