OEM Connector End Views - Evolution
›
Connector End Views
›
Vehicle Speed Sensor Connector B-04 Connector End View
Vehicle Speed Sensor Connector B-04 Connector End View

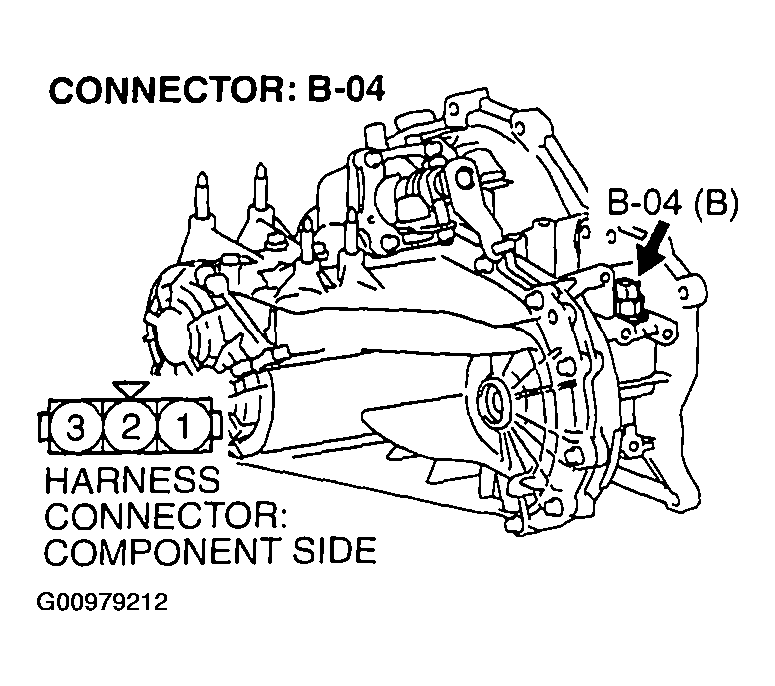

Fig 1: Vehicle Speed Sensor Connector B-04 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
