Accessory Socket Relay Continuity Check

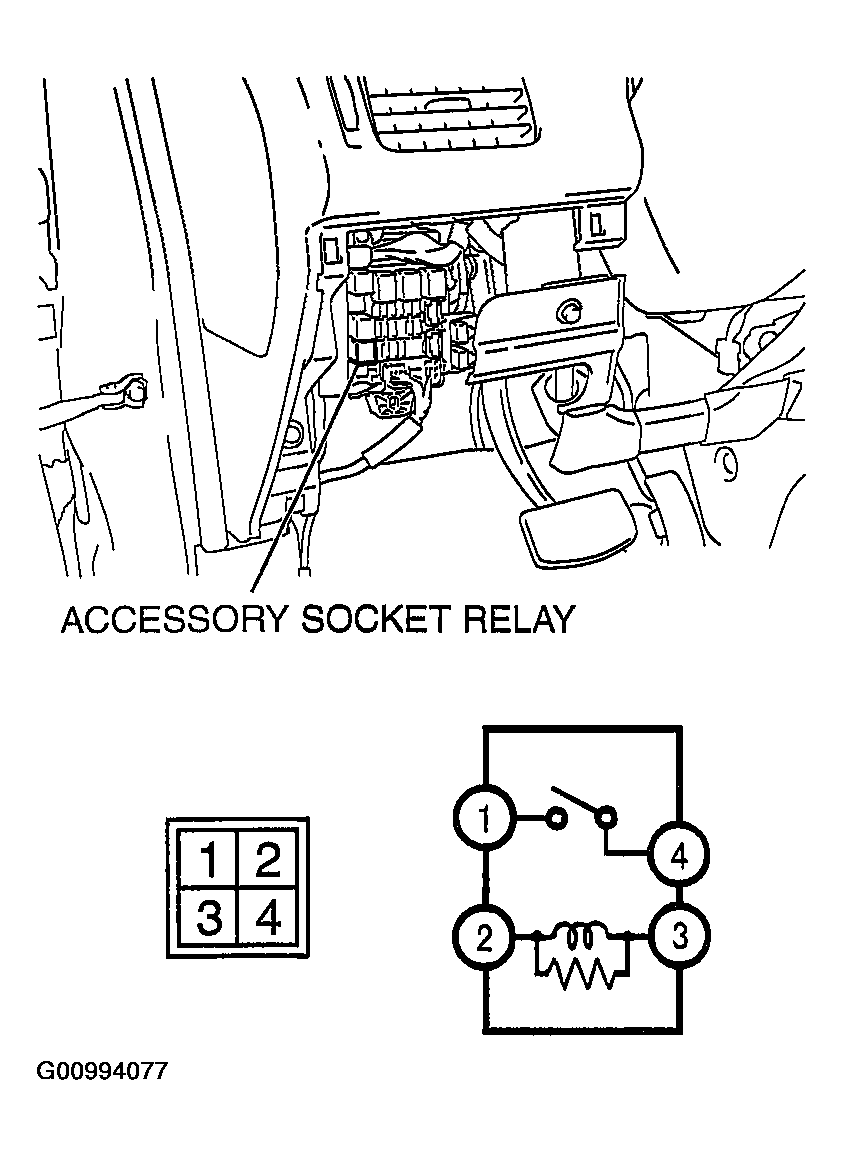

Fig 1: Identifying Accessory Socket Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

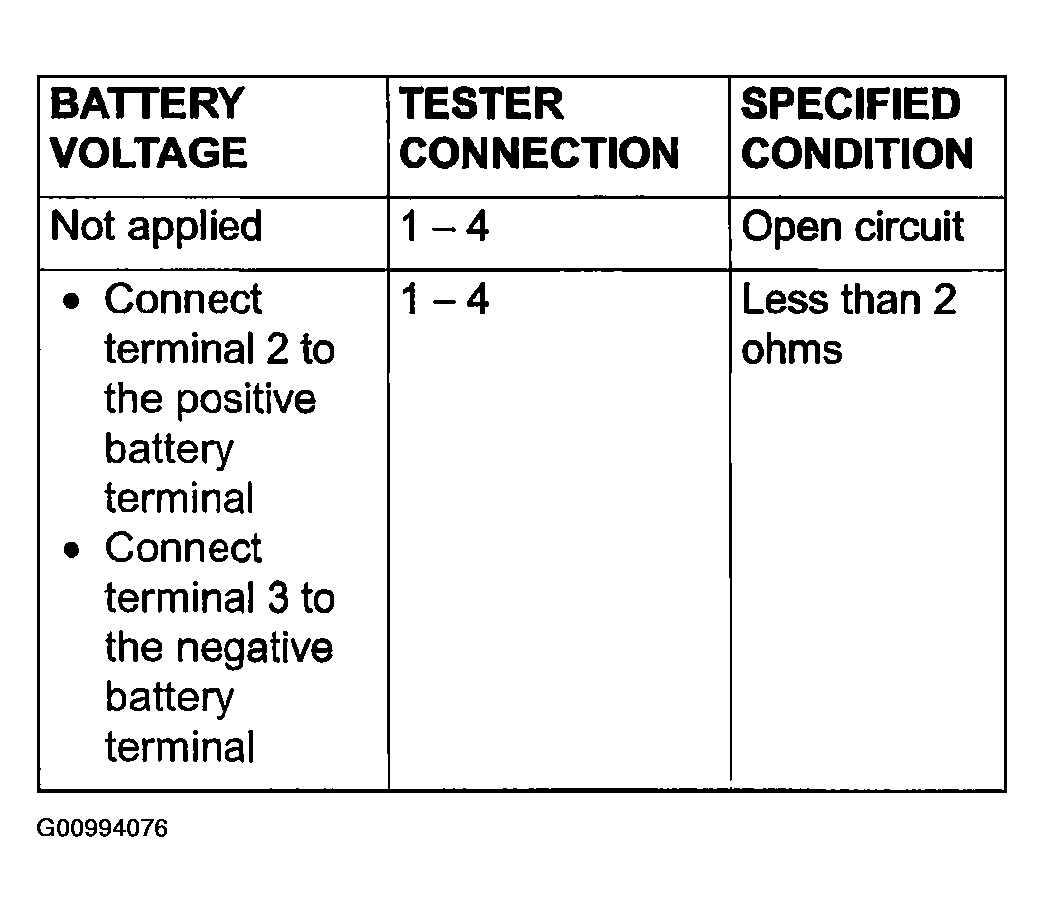

Fig 2: Identifying Battery Voltage Condition

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
