Vacuum Hose Check

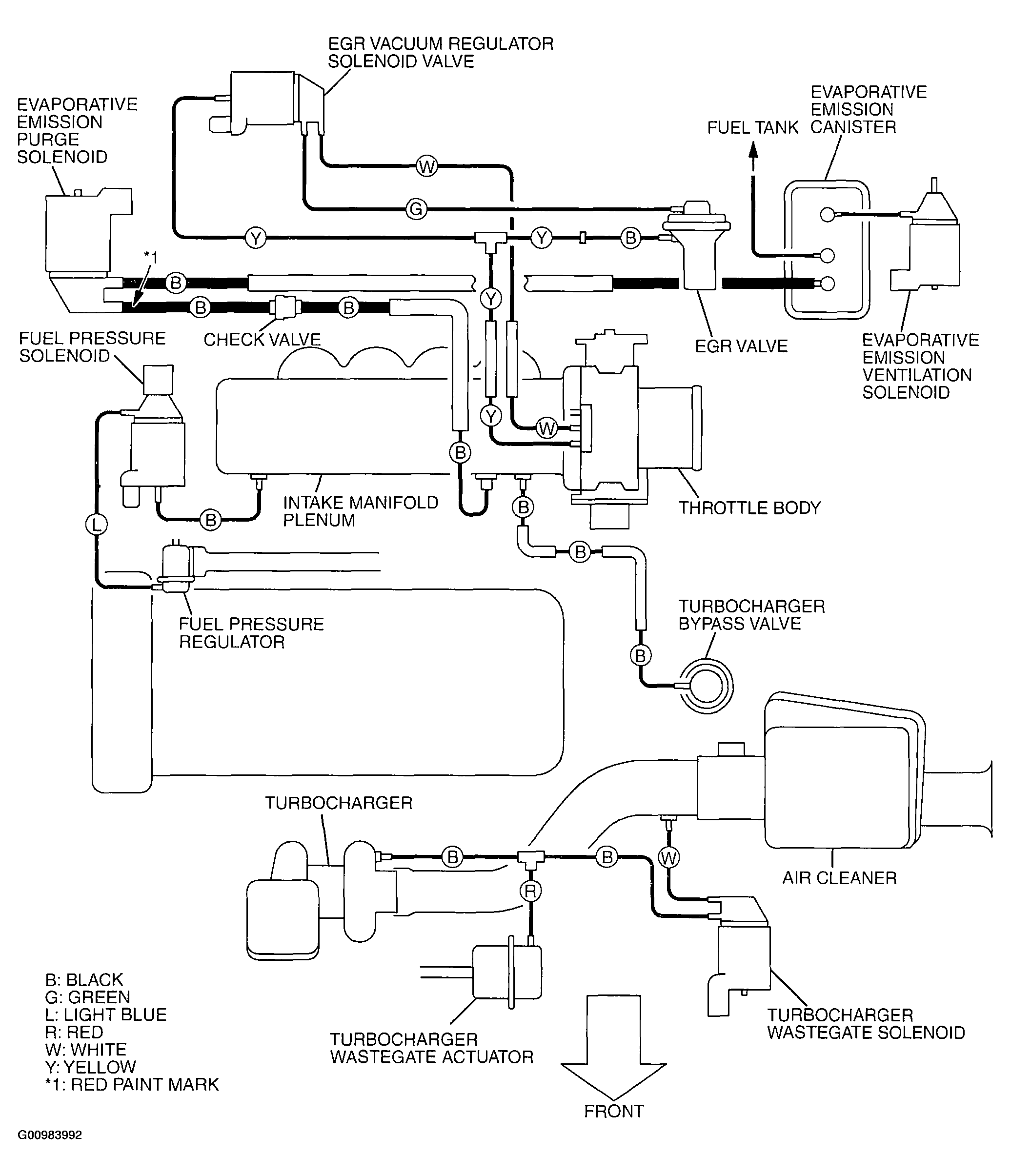

Using Figure as a guide, check that the vacuum hoses are correctly connected.
Check the connection of the vacuum hoses, (removed, loose, etc.) and confirm that there are no sharp bends or damage.
