Ignition Switch Continuity Check
WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

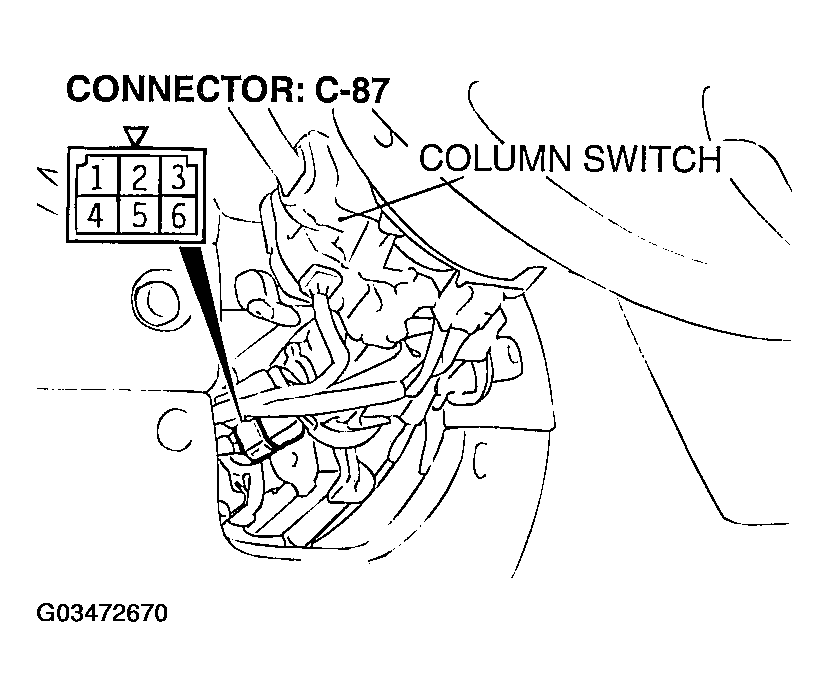

Disconnect ignition switch connector C-87 without removing the ignition switch and steering lock cylinder. Then check the continuity.
IGNITION SWITCH CONTINUITY
| SWITCH POSITION | TESTER CONNECTION | SPECIFIED CONDITION |
|---|---|---|
| "LOCK" (OFF) | 1 2 4 5 6 | Open circuit |
| "ACC" | 1 6 | Less than 2 ohm |
| "ON" | 1 2 4 6 | Less than 2 ohm |
| "START" | 1 2 5 | Less than 2 ohm |
