Fail-Safe/Backup Function

WARNING: This page is about a different variant/trim than selected.

When a malfunction of a main sensor or actuator is detected by the PCM, the transaxle is controlled by preset control logic to maintain safe conditions for driving.

The following tables show how the fail-safe/backup function affects vehicle drive ability and operation.

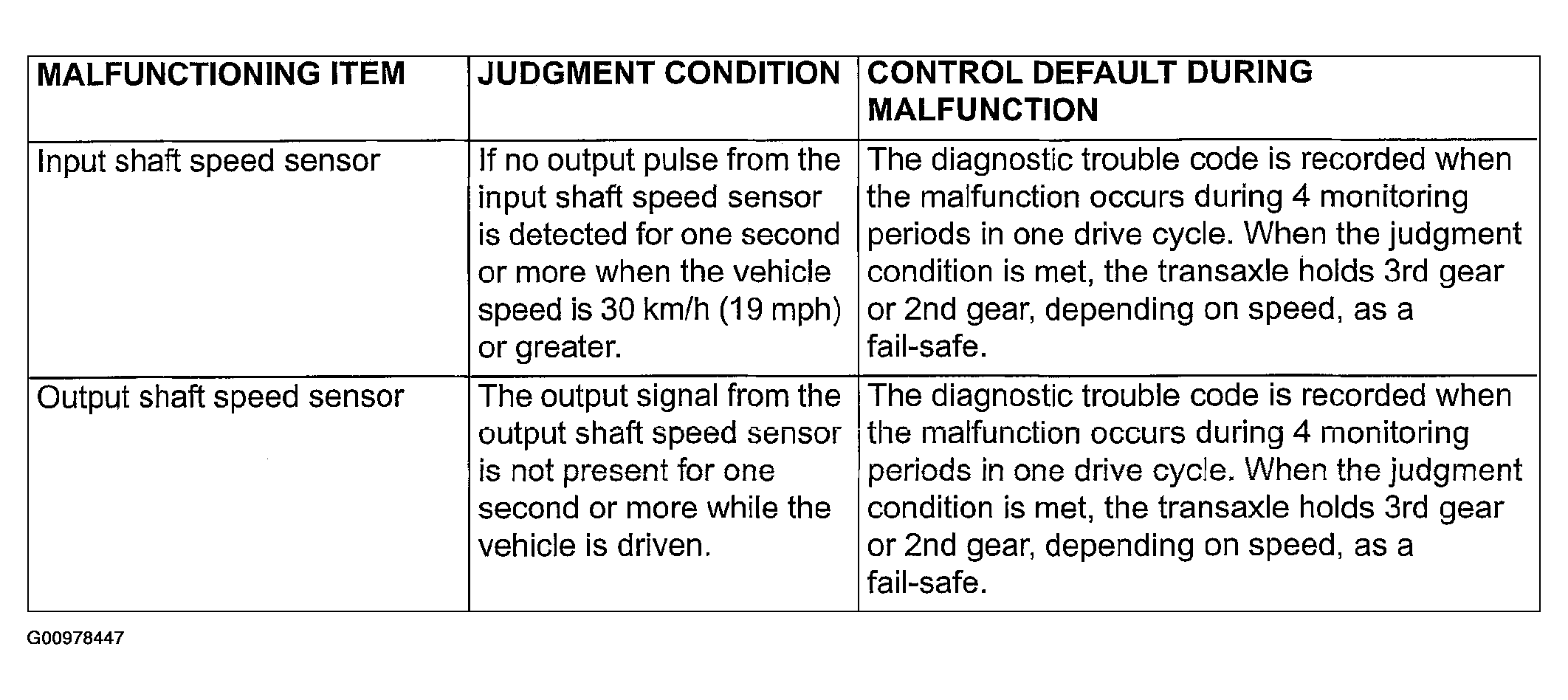

Fig 1: Fail-Safe/Backup Function Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

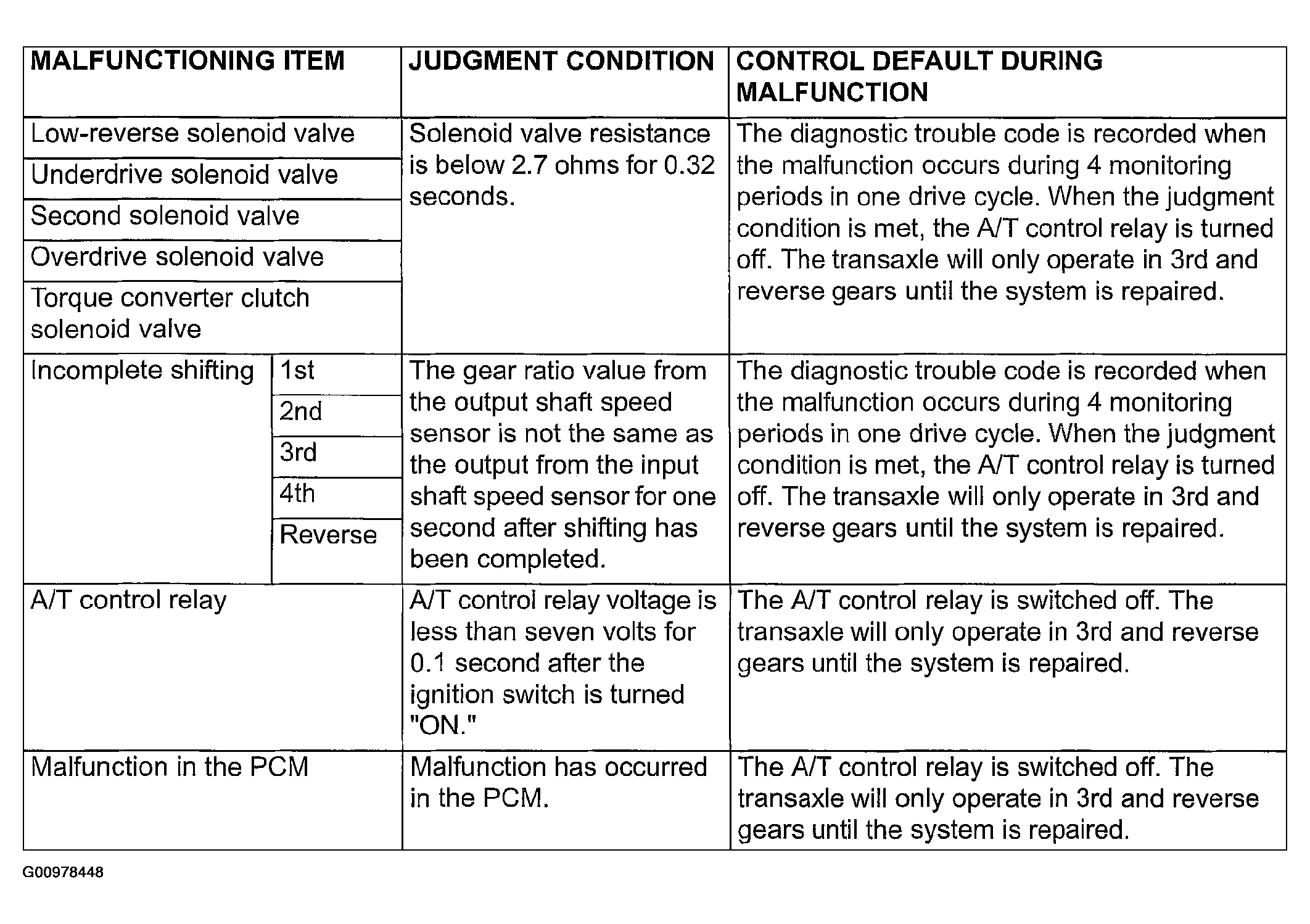

Fig 2: Fail-Safe/Backup Function Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
