Section 27 (Diagnosis SPORTBACK)
›
Automatic Transaxle Diagnosis
›
Inspection Procedure Using An Oscilloscope
›
Notes
Inspection Procedure Using An Oscilloscope: Notes
WARNING:
This page is about a different variant/trim than selected.

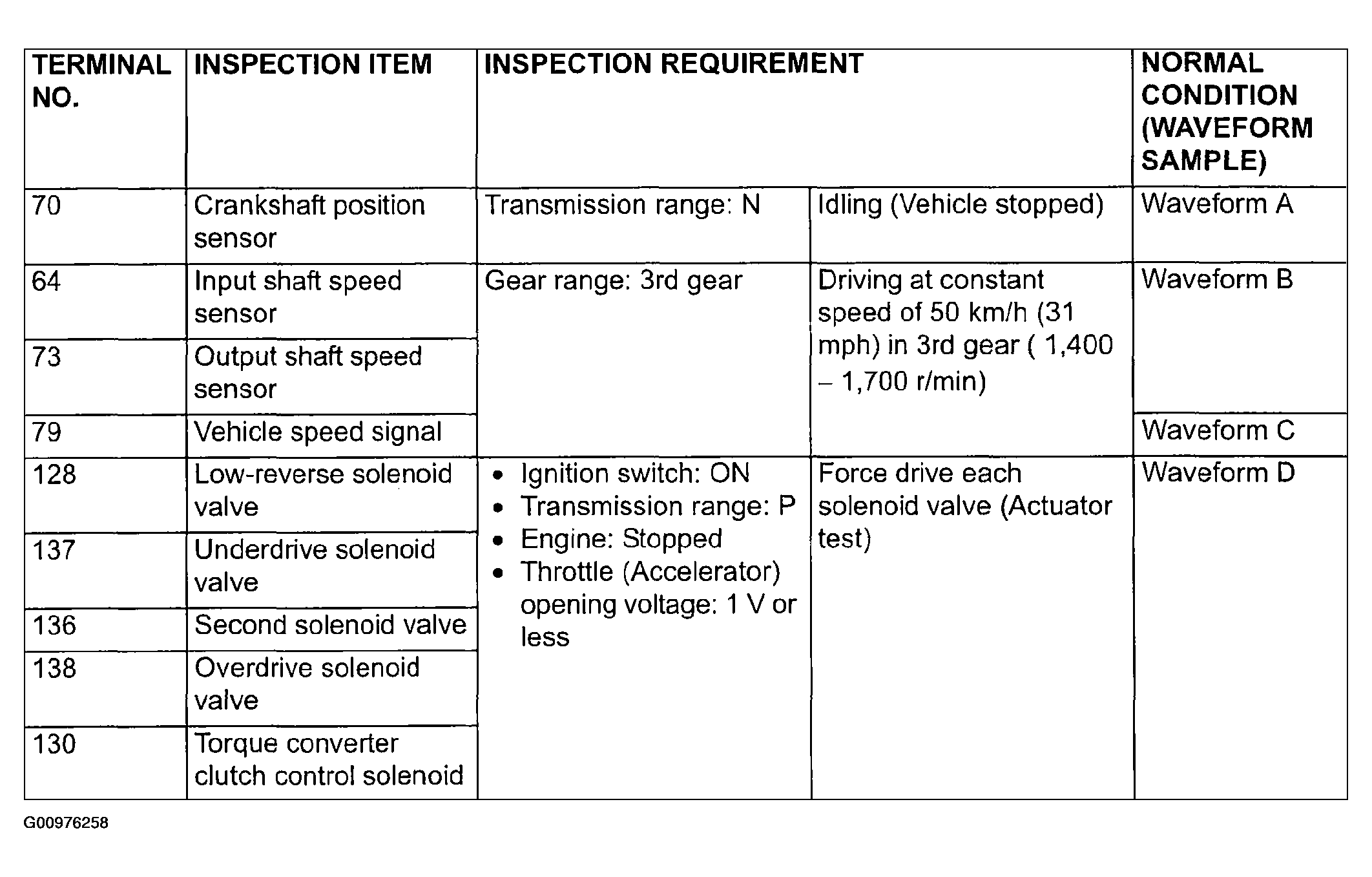

Fig 1: Waveform Requirement Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
