Section 27 (Diagnosis SPORTBACK)
›
General Description
›
Electronically Controlled System
›
Shift Pattern Control
›
Downshift Pattern
Downshift Pattern
WARNING:
This page is about a different variant/trim than selected.

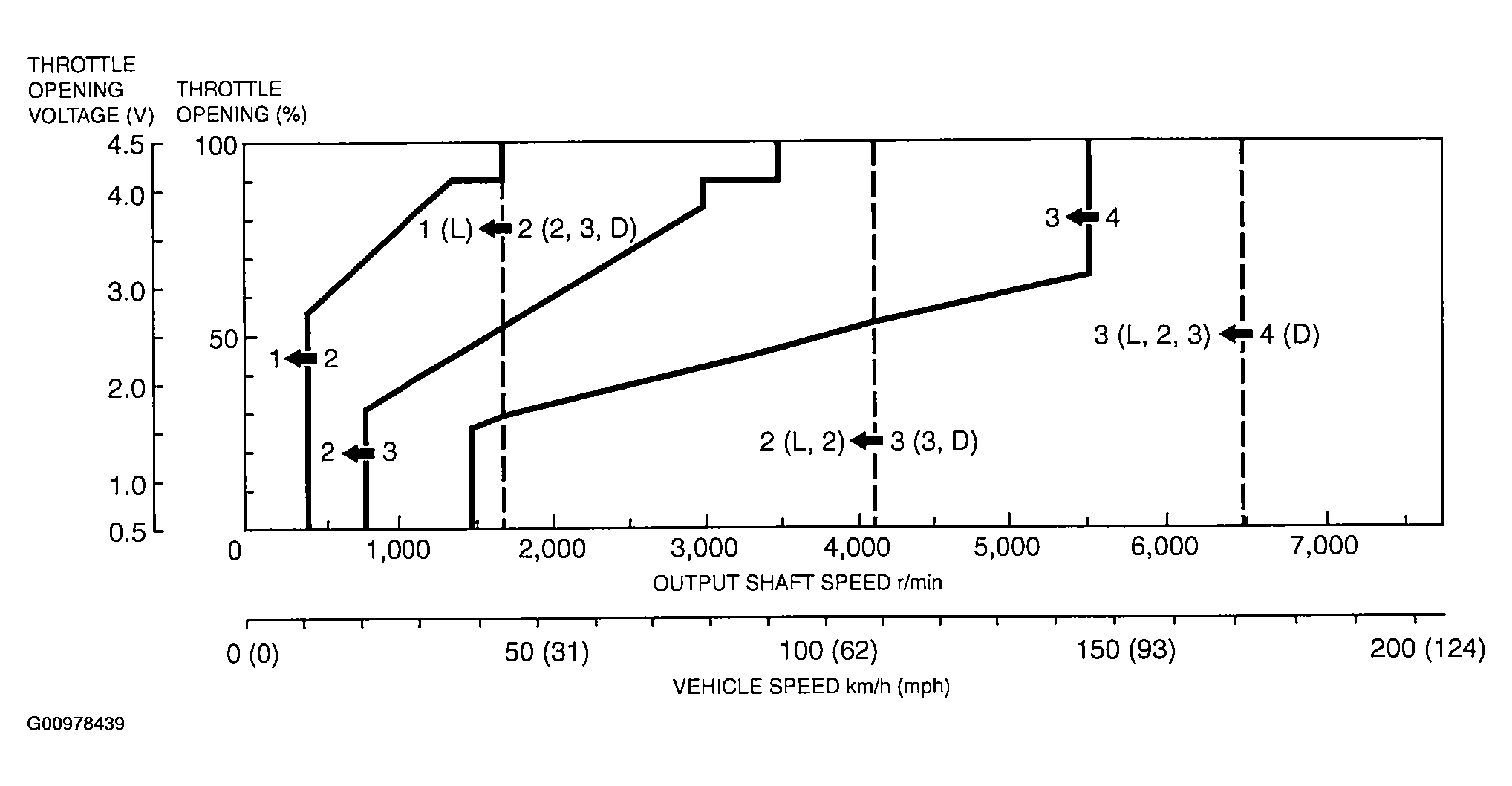

Fig 1: Downshift Pattern Graph
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
