Transmission Range Switch Check

WARNING: This page is about a different variant/trim than selected.

NOTE: For vehicles with sport mode, four positions (P, R, N, D) are used.

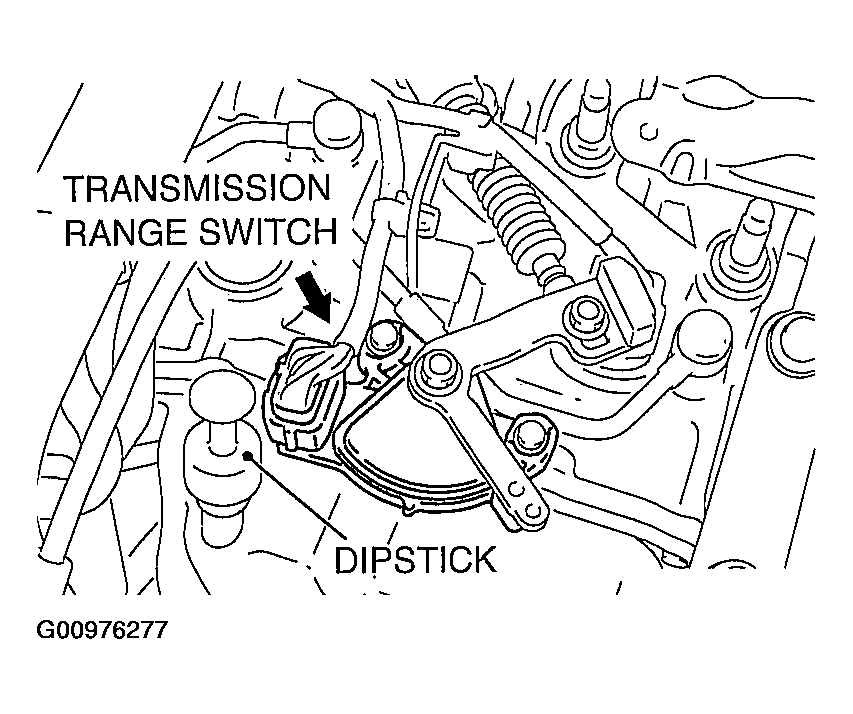

Fig 1: Identifying Transmission Range Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Transmission Range Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

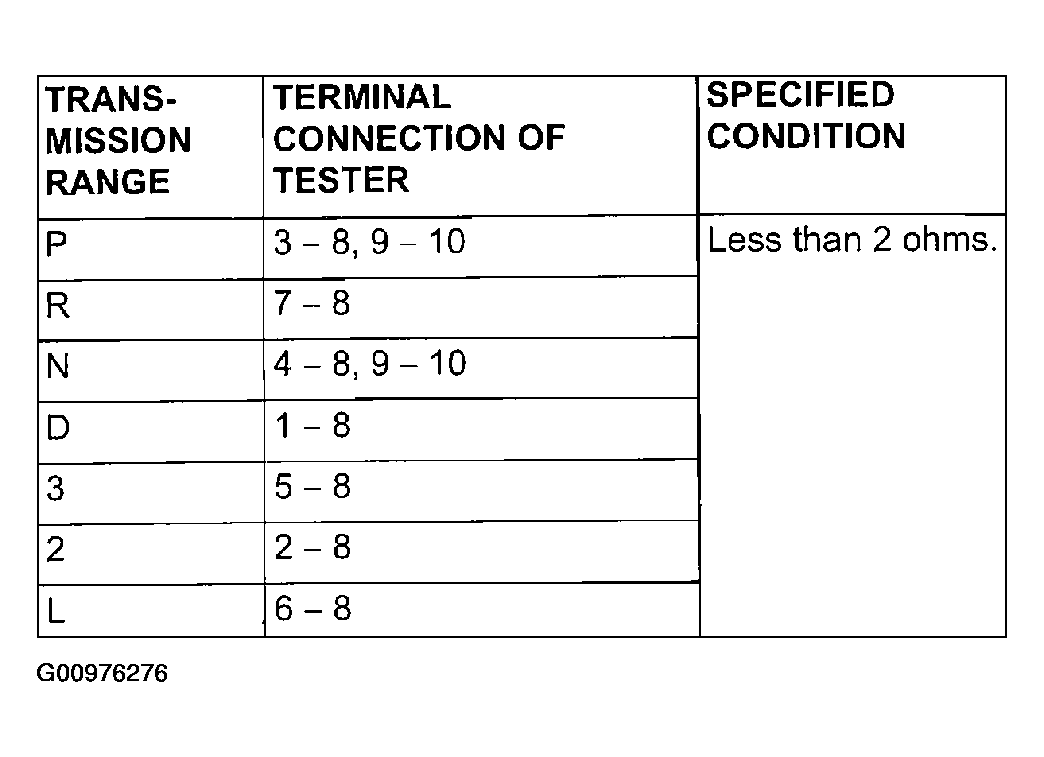

Fig 3: Transmission Range Switch Specified Resistance

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
