Section 27 (Diagnosis SPORTBACK)
›
Transaxle Control
›
Disassembly And Assembly
Disassembly And Assembly
WARNING:
This page is about a different variant/trim than selected.

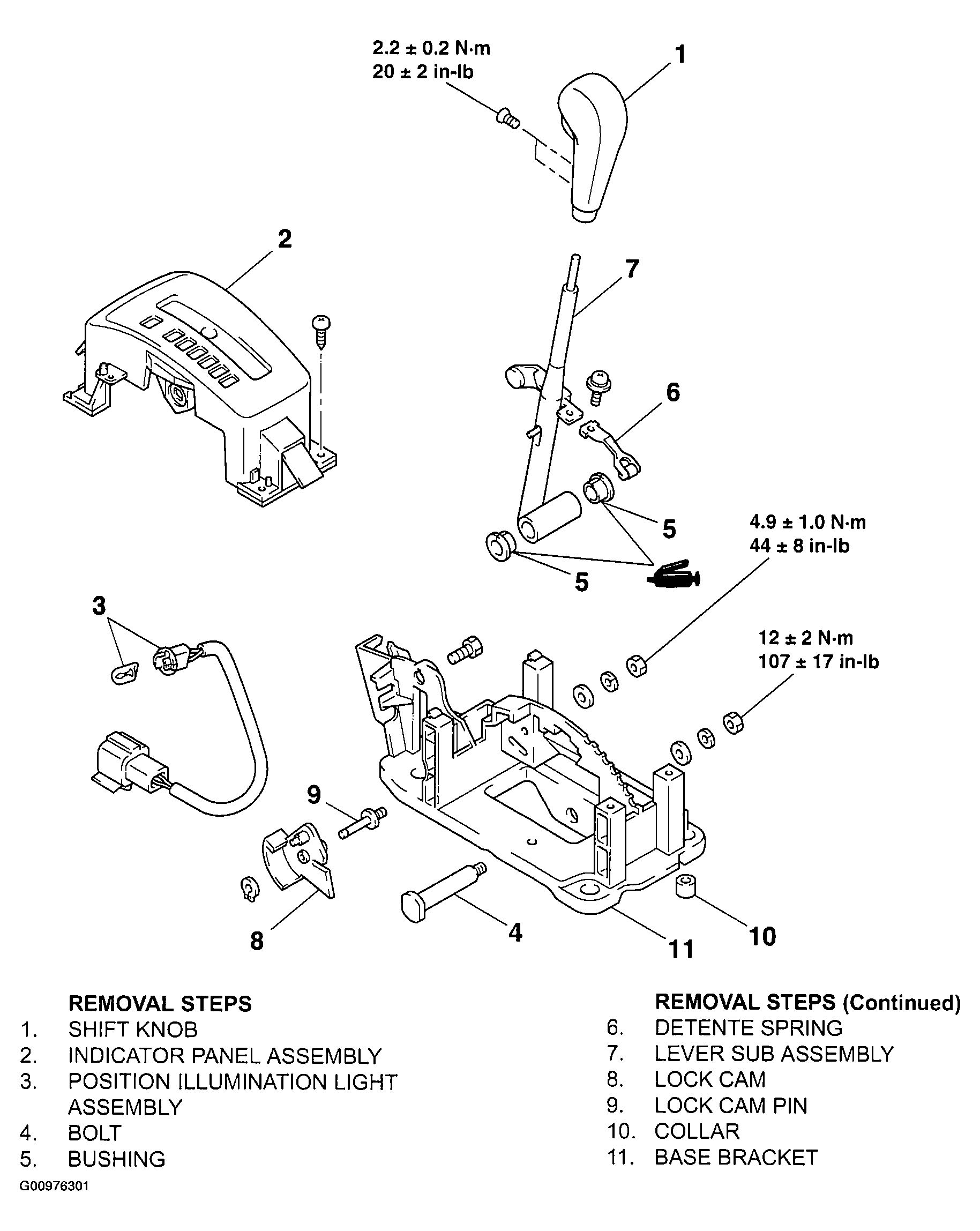

Fig 1: Exploded View Of Transaxle Control Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
