DTC 15: Auto-cruise Control Switch System: Notes

WARNING: This page is about a different variant/trim than selected.

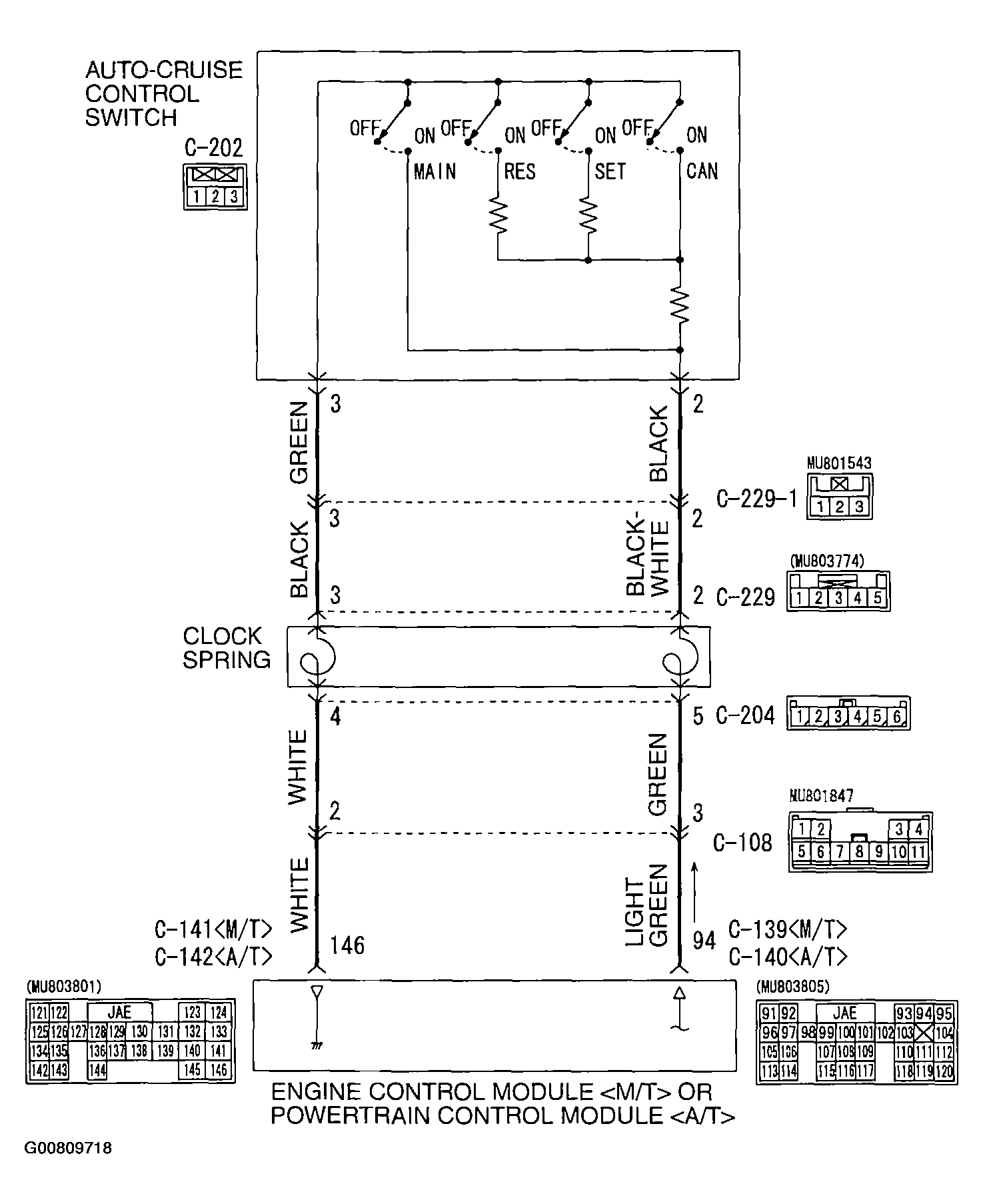

Fig 1: Auto-Cruise Control Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

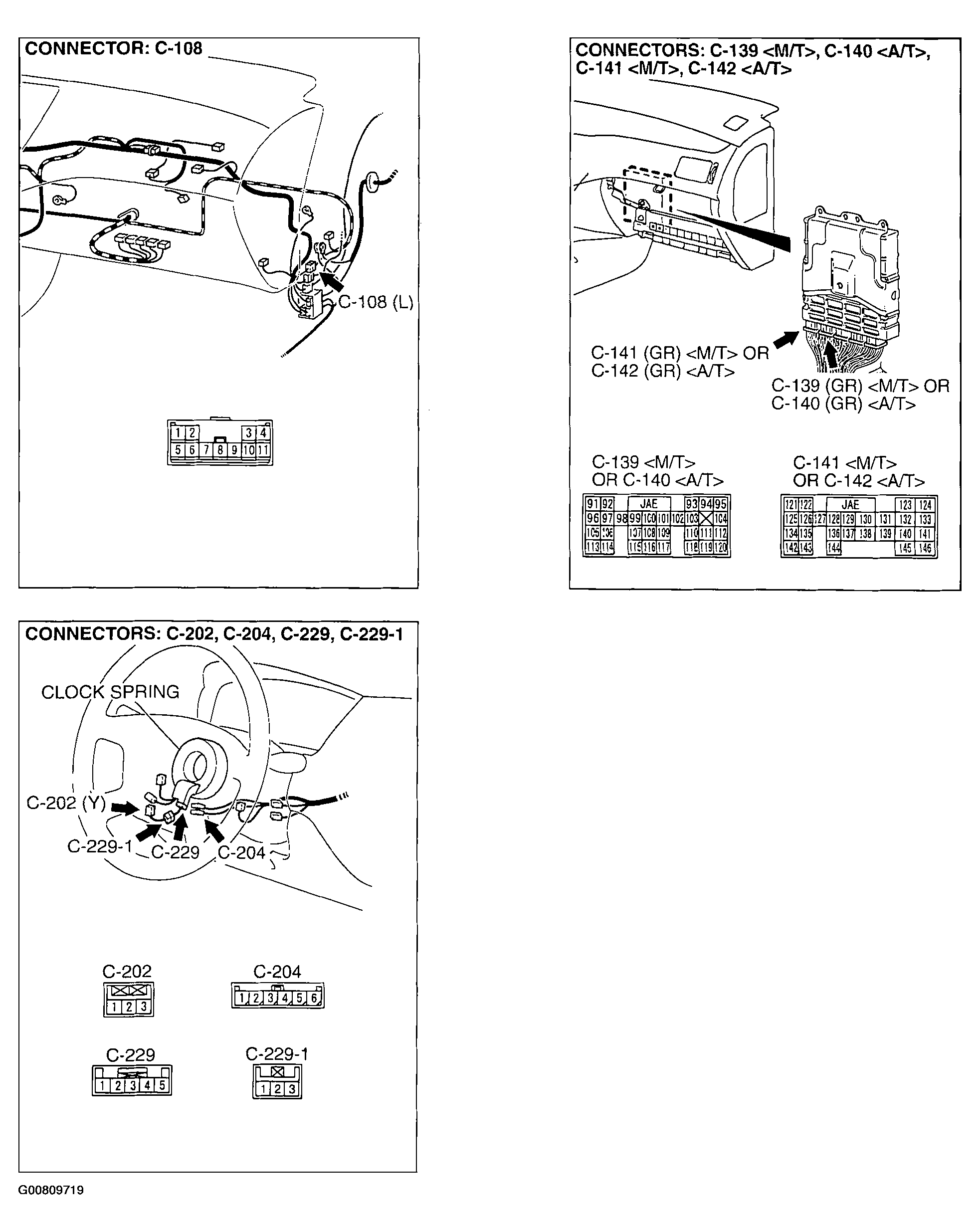

Fig 2: Identifying Connectors: C-108, C-139 (M/T), C-140 (A/T), C-141 (M/T), C-142 (A/T), C-202, C-204, C-229, C-229-1

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
