Section 51 (Instrument Panel Assembly - Except Evolution & SPORTBACK)
›
Instrument Panel Assembly
›
Disassembly And Assembly
Disassembly And Assembly
WARNING:
This page is about a different variant/trim than selected.

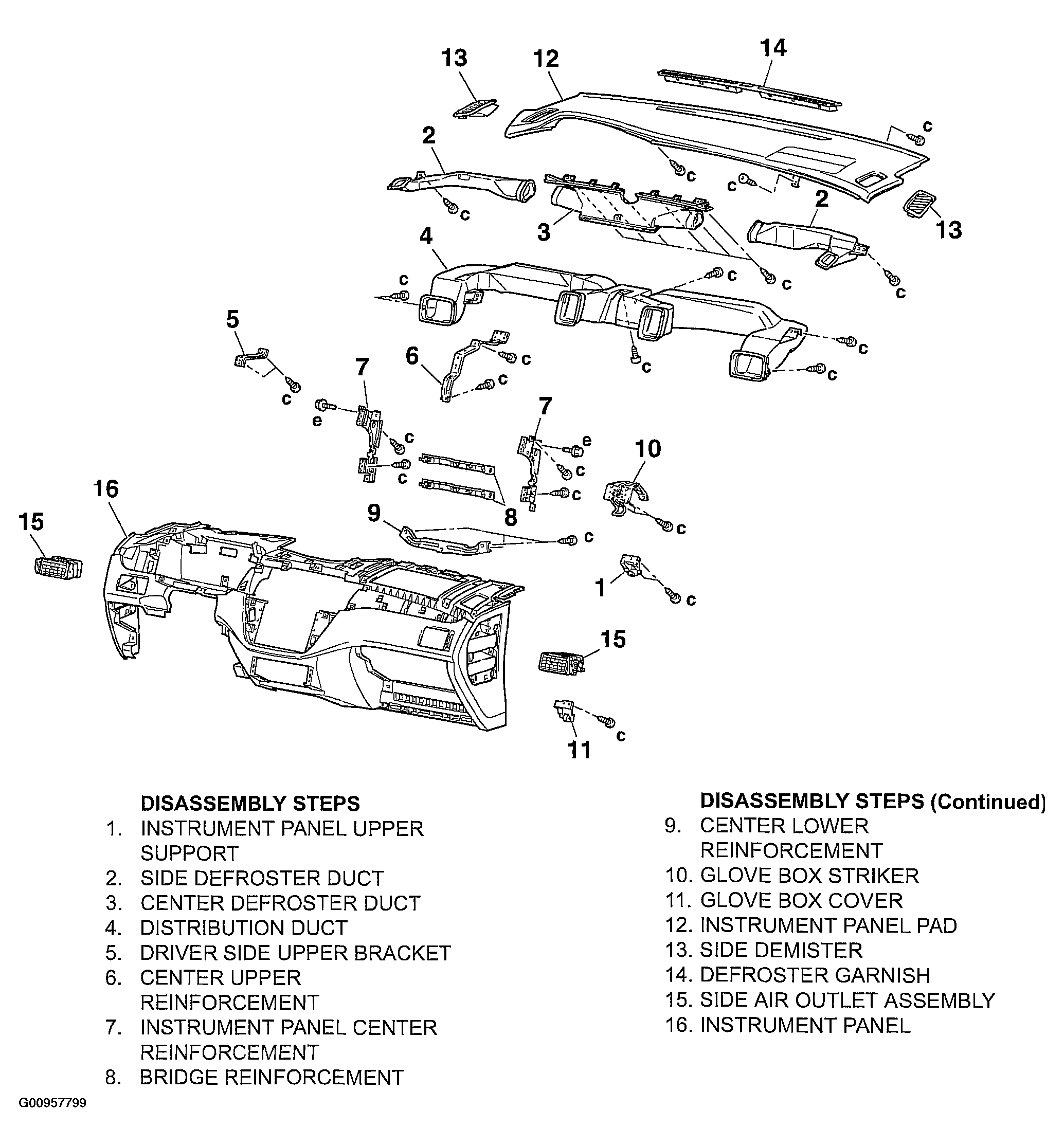

Fig 1: Identifying Instrument Panel Disassembly Steps
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
