Disassembly And Assembly

WARNING: This page is about a different variant/trim than selected.

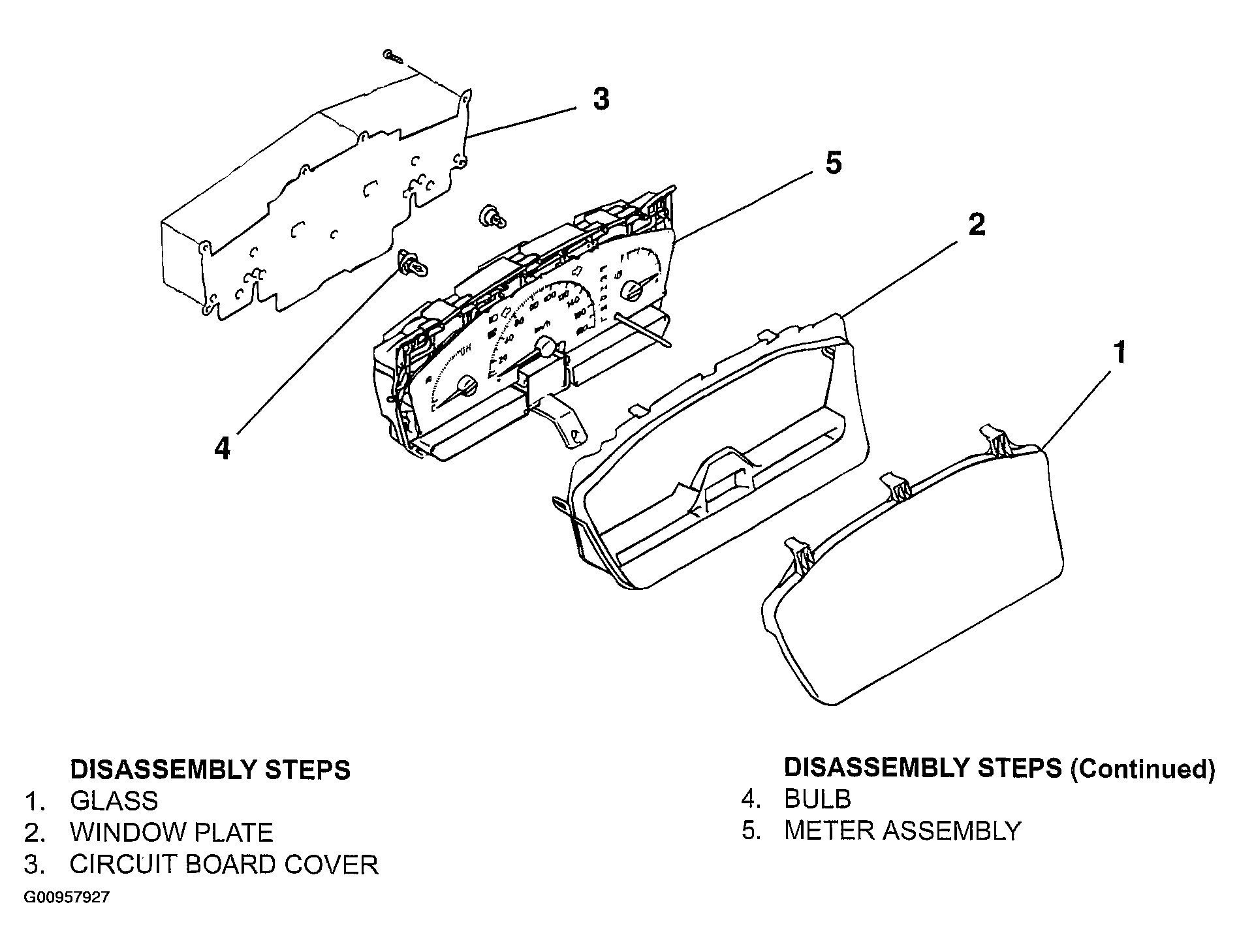

Fig 1: Exploded View Of Combination Meter Assembly Components (Vehicle Without Tachometer)
G00957927Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

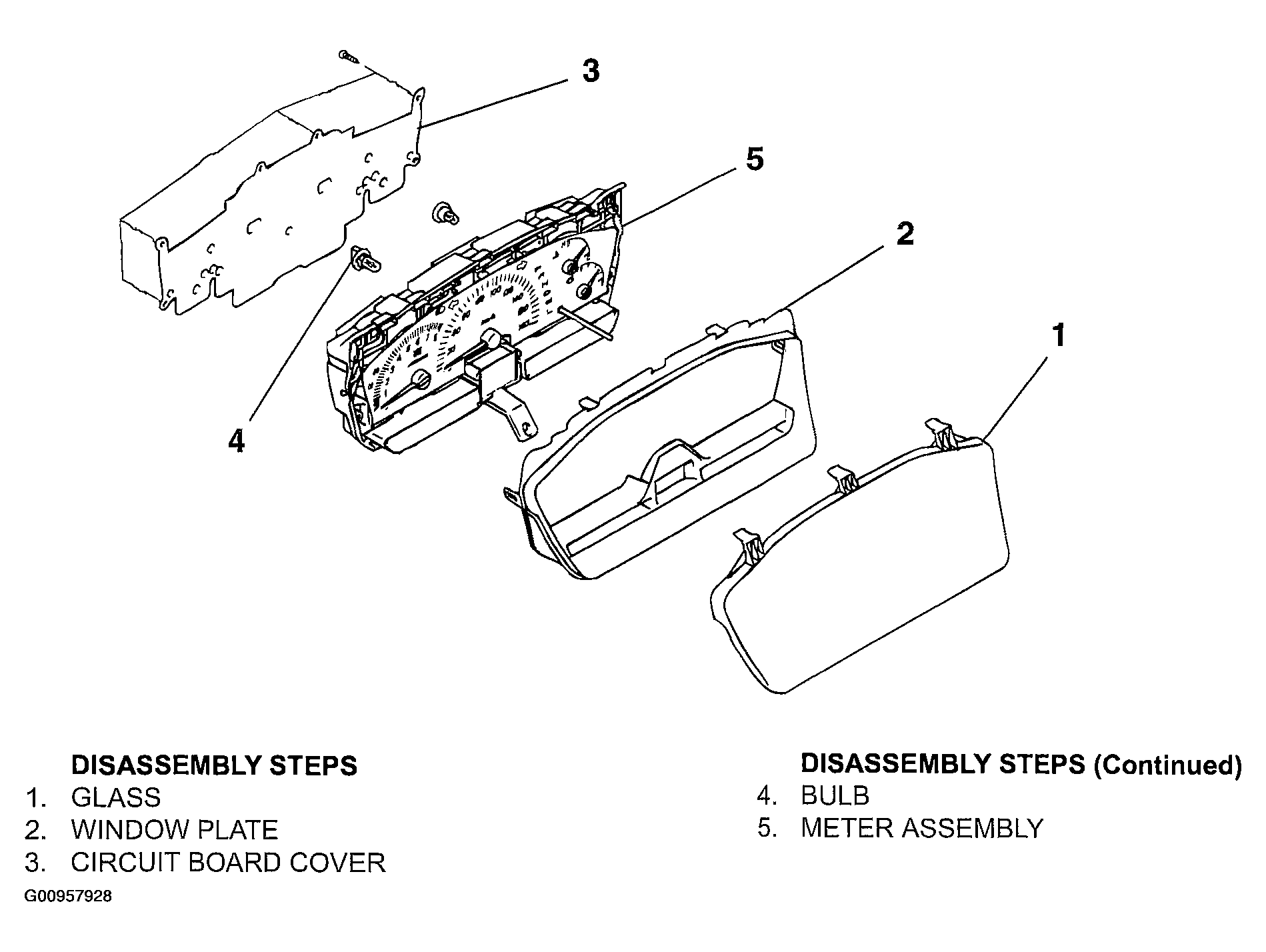

Fig 2: Exploded View Of Combination Meter Assembly Components (Vehicle With Tachometer)
G00957928Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
