INSPECTION PROCEDURE 1: Speedometer does not Work. < A/T >: Notes

WARNING: This page is about a different variant/trim than selected.

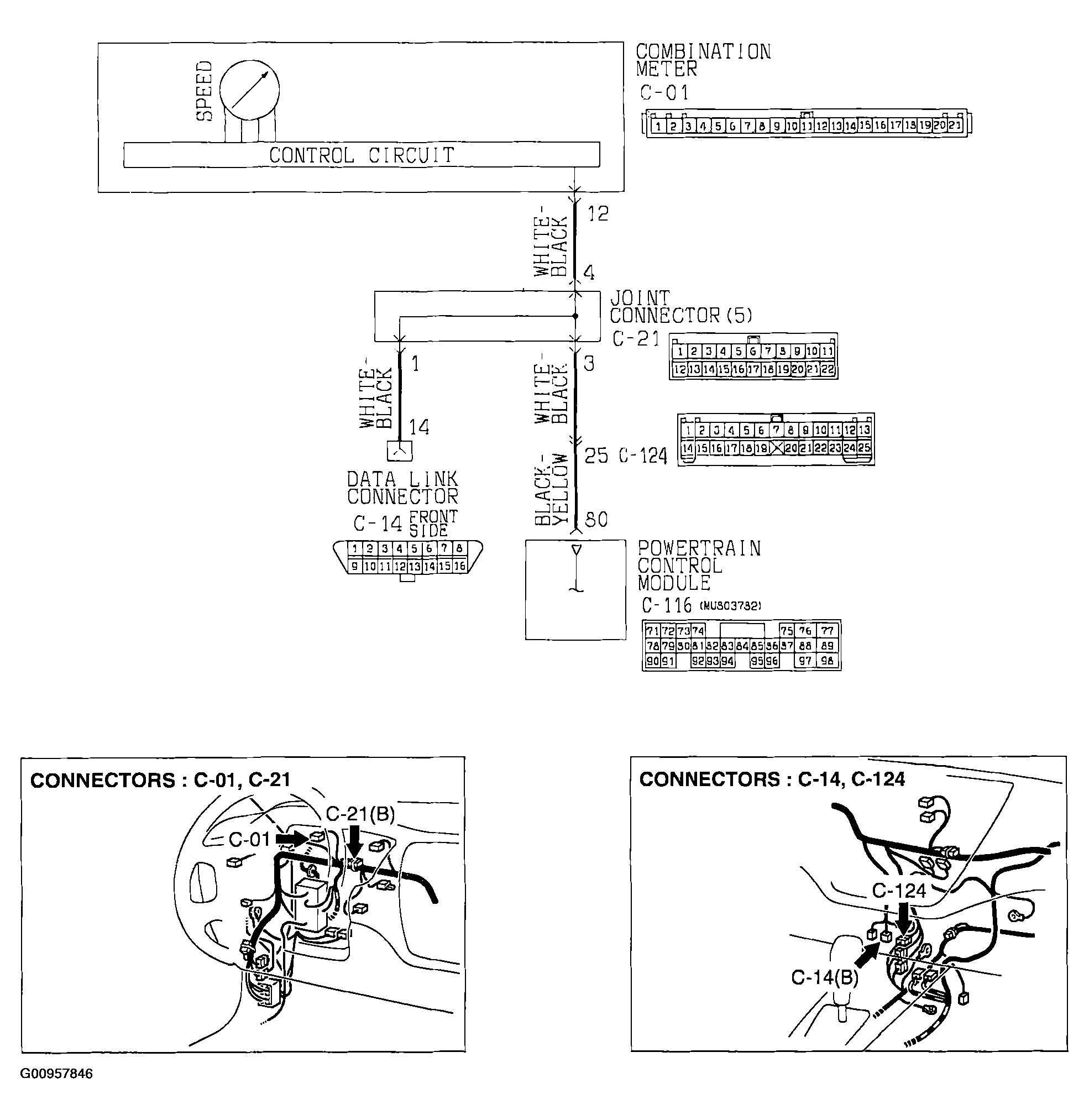

Fig 1: View Of Speedometer Circuit - A/T

G00957846

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Connector C-116

G00957847

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
