Inspection Procedure 4: Fuel Gauge Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.

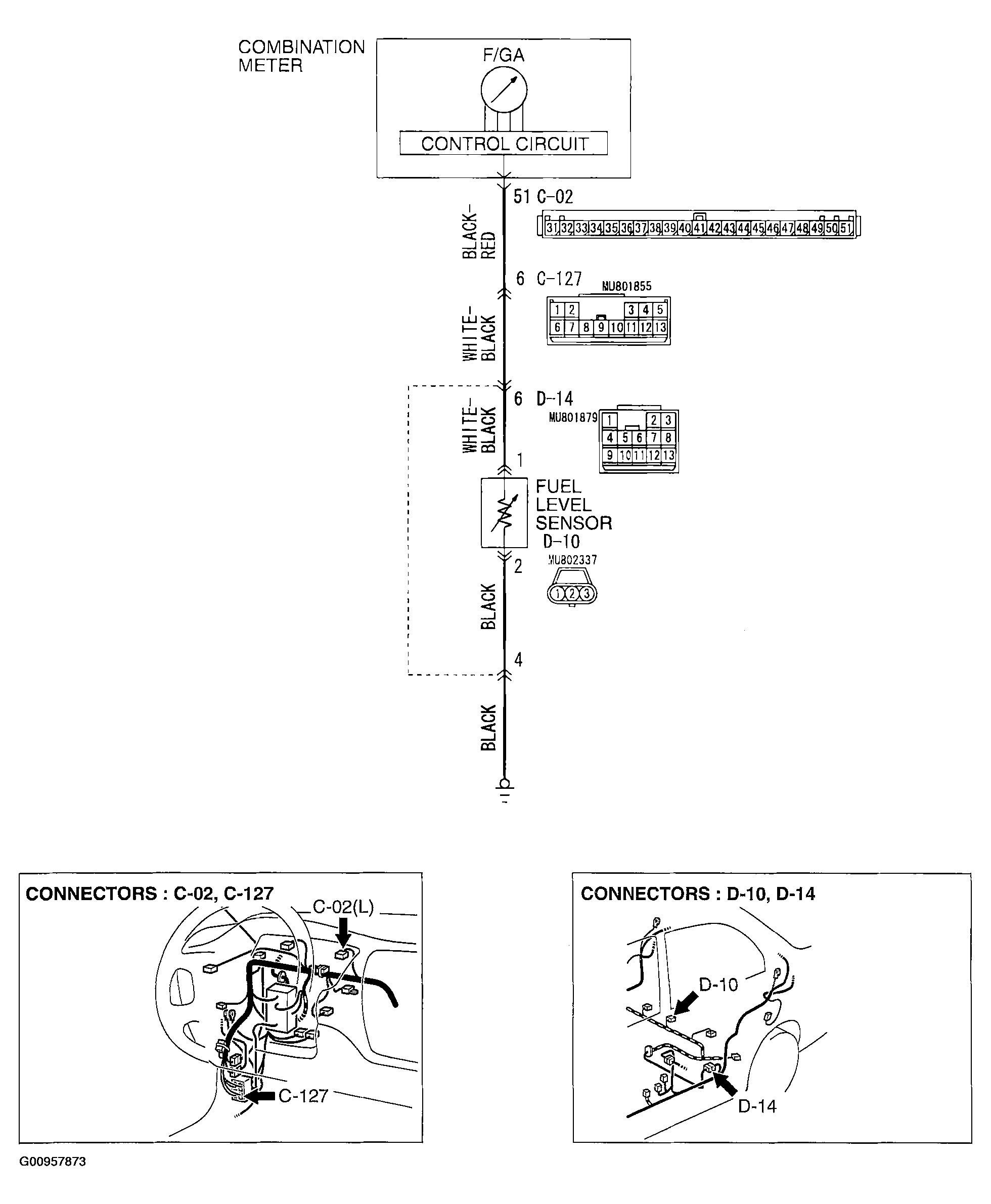

Fig 1: View Of Fuel Gauge Circuit And Connectors
G00957873Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
