Disassembly And Assembly: Notes

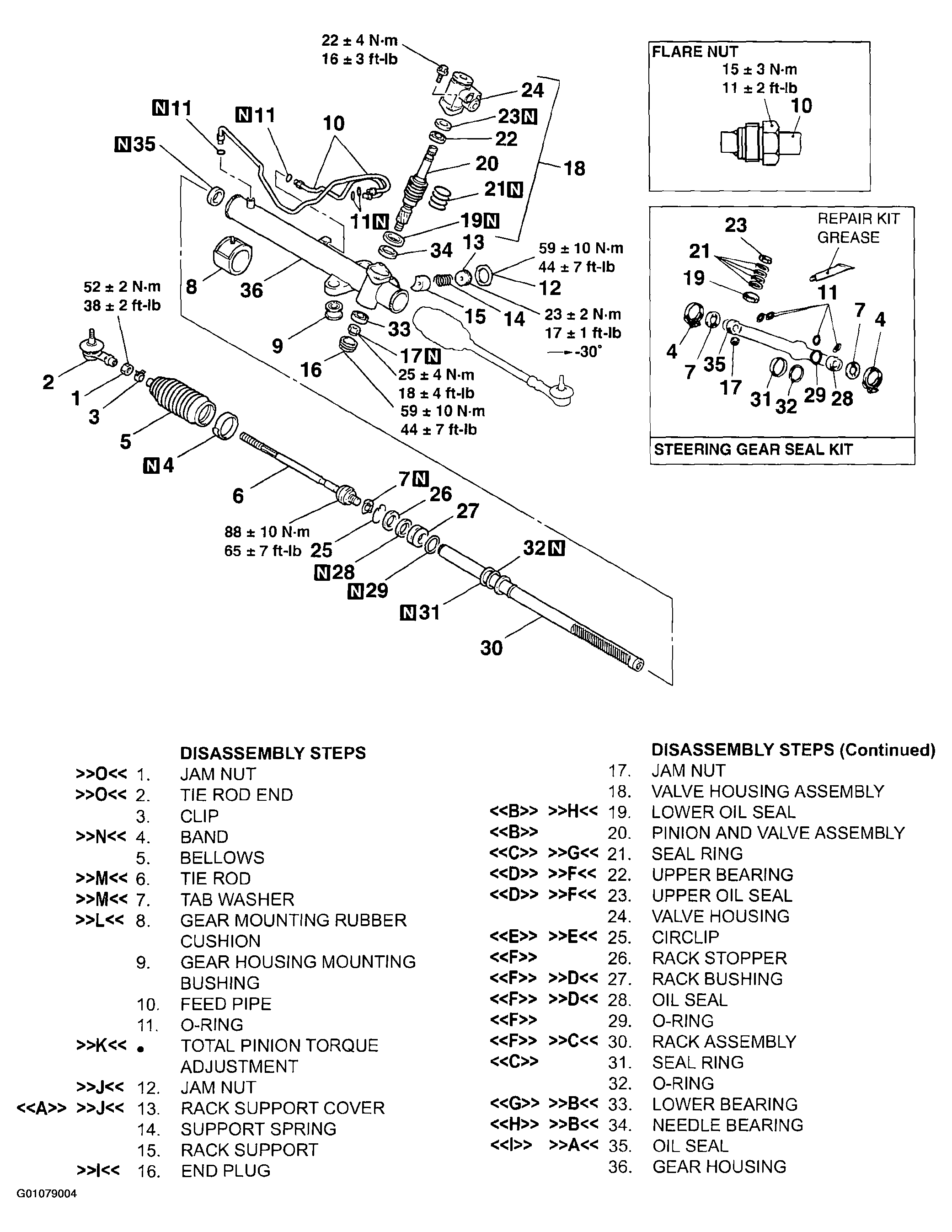

Fig 1: Disassembling Power Steering Gear And Linkage

G01079004

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990776: Front Axle Base
MB990927: Installer Adapter
MB990938: Bar (Snap-in type)
MB990939: Brass Bar
MB990941: Torque Tube Bearing Installer
MB991006: Preload Socket
MB991120: Needle Bearing Puller
MB991152: Dust Cover Installer
MB991197: Bar (Long type)
MB991199: Oil Seal and Bearing Installer
MB991203: Oil Seal and Bearing Installer
MB991214: Rack Installer
MB991317: Seal Ring Installer
MB991561: Boot Band Crimping Tool
MB991621: Rack Support Cover Wrench
