Home › Mitsubishi › 2004 › Lancer Evolution RS › Repair and Diagnosis › Steering › Power Steering - Evolution › Power Steering Oil Pump Assembly › Removal And Installation › Notes

Removal And Installation: Notes

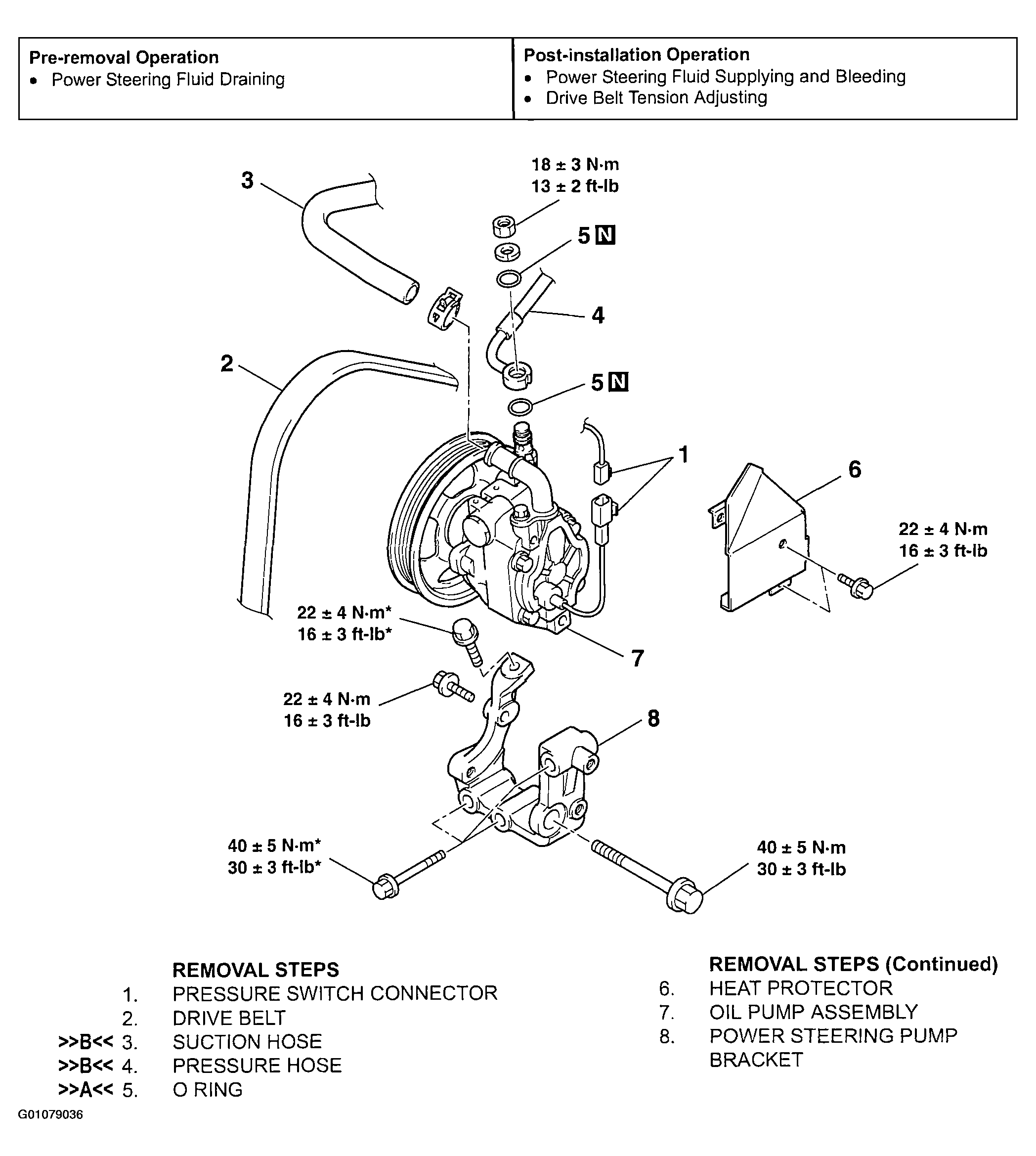

Fig 1: Removing Power Steering Oil Pump Assembly
G01079036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
