Disassembly And Assembly: Notes

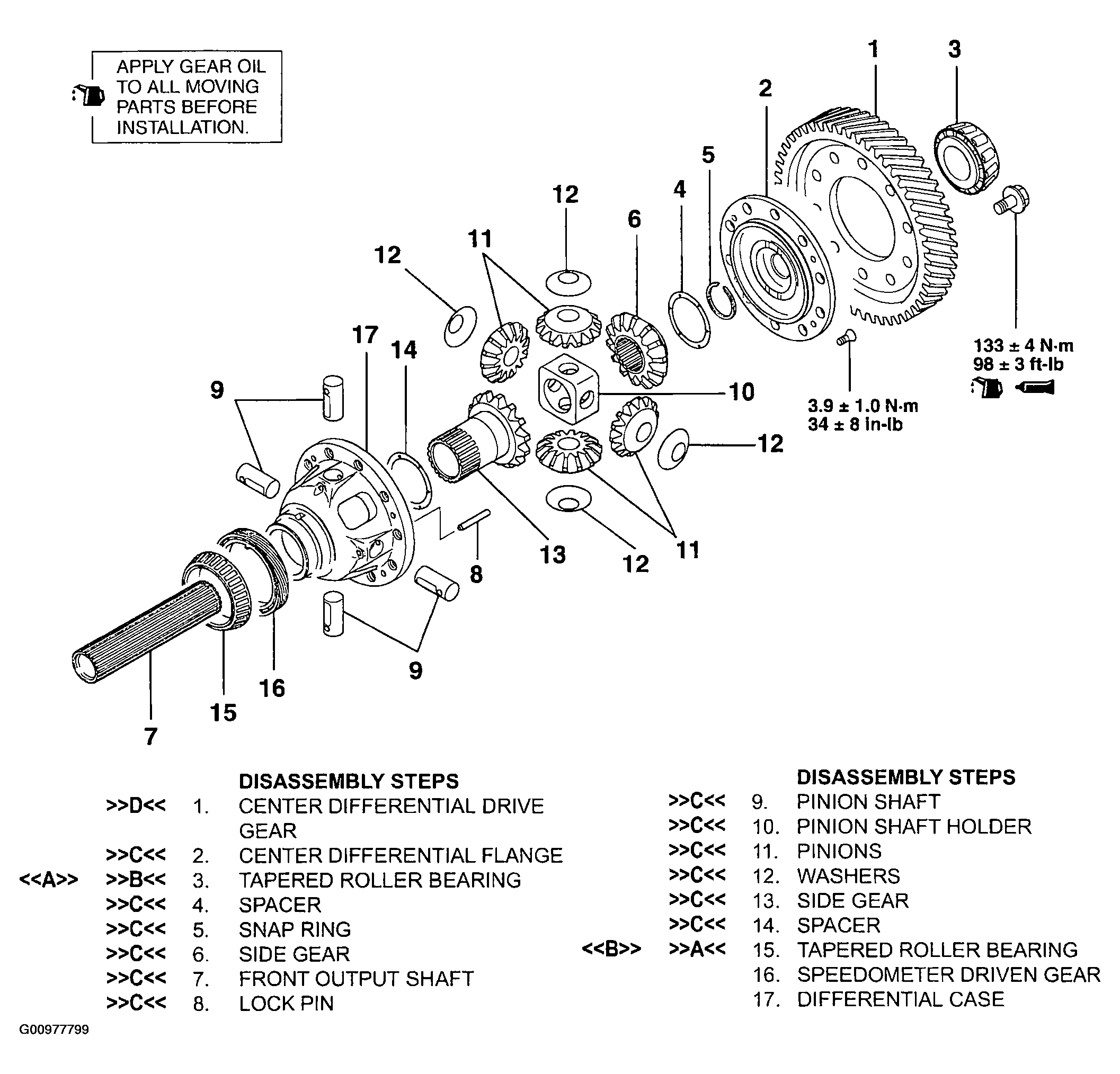

Fig 1: Identifying Centre Deferential

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• 98812: Installer Cap
• 98917: Bearing Remover
• 90930: Installer Adapter
• 98824: Installer Adapter (50)
• 90937: Installer Adapter
