Disassembly And Assembly: Notes

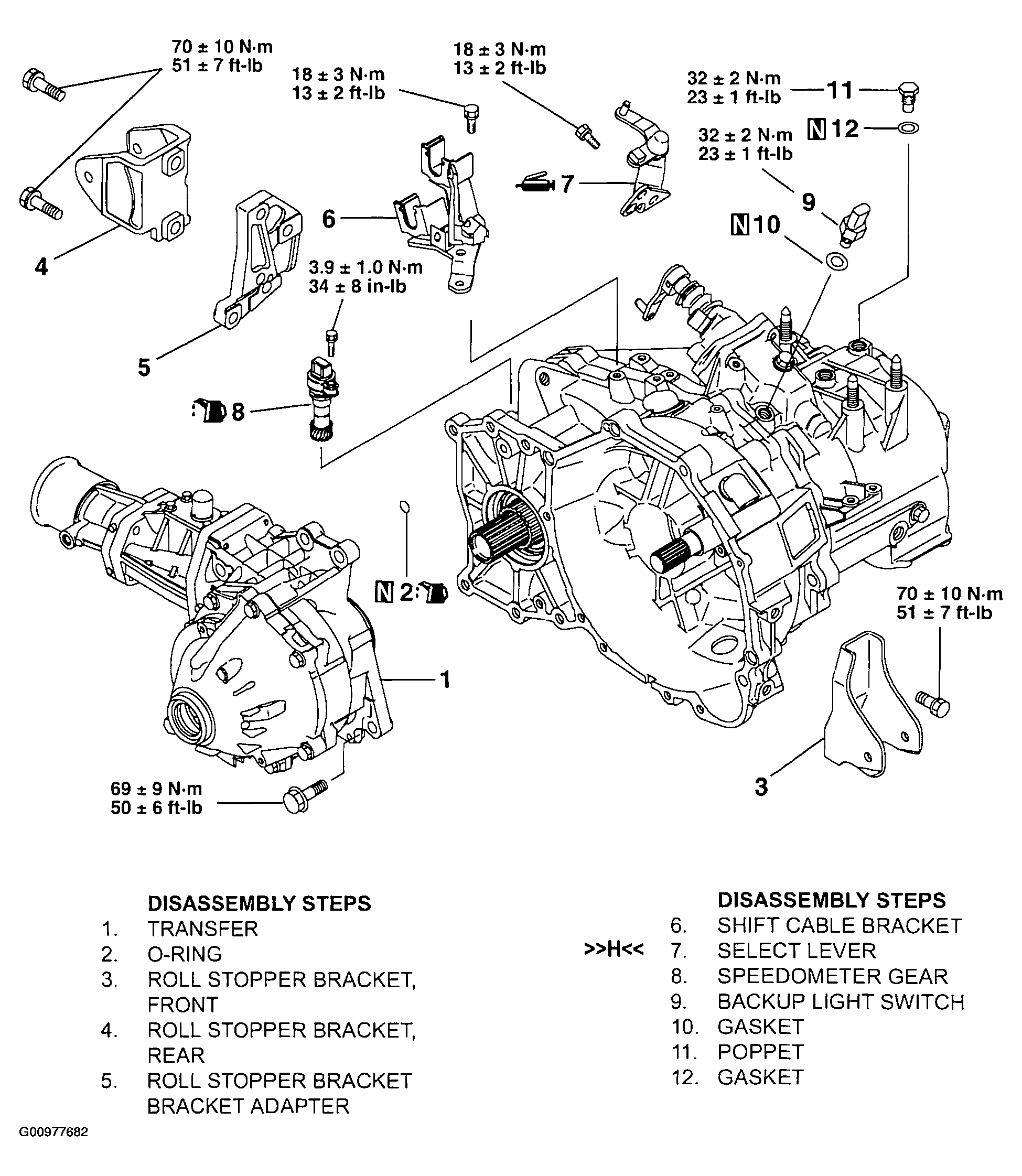

Fig 1: Identifying Transaxle (1 Of 3)
G00977682Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

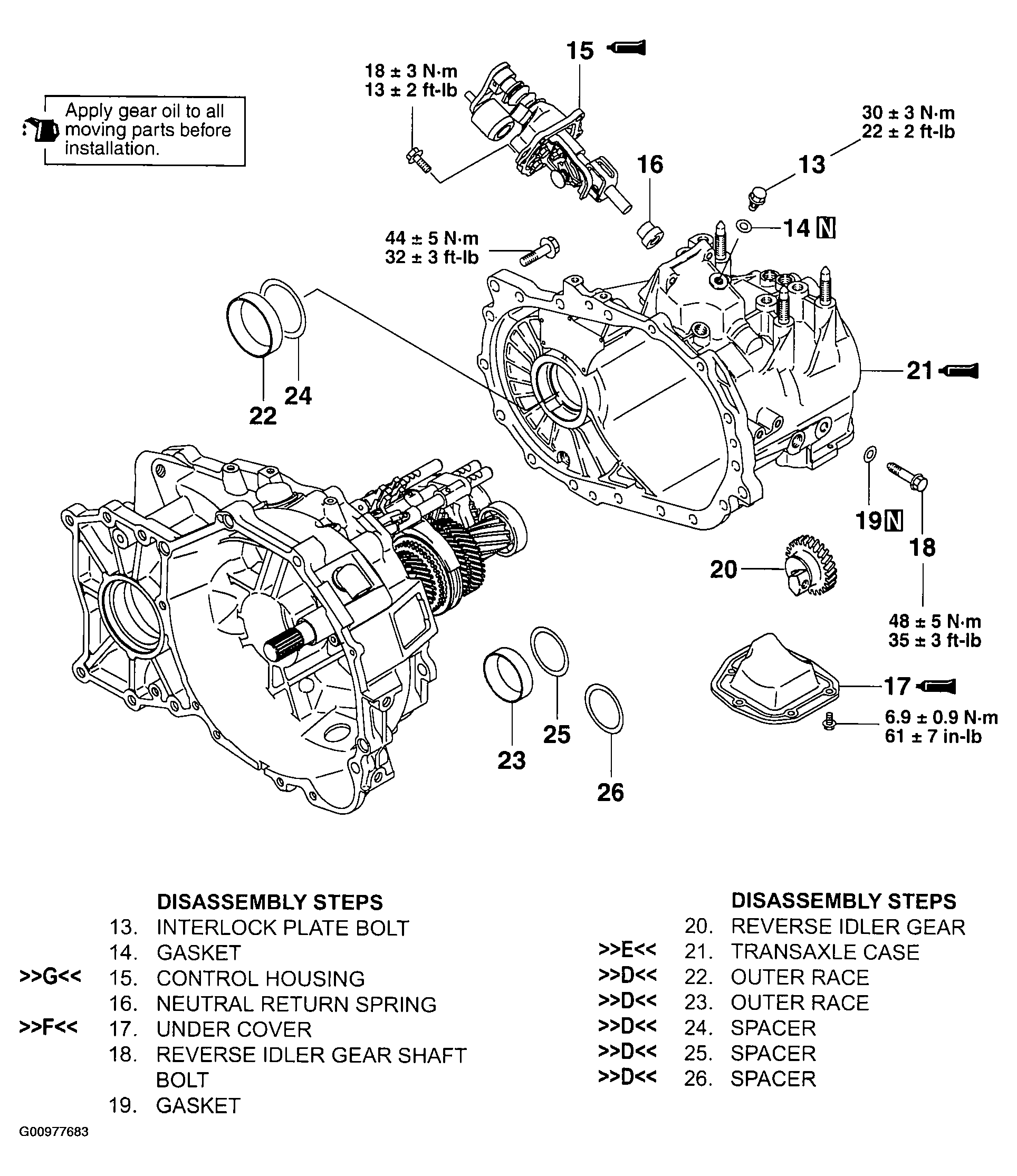

Fig 2: Identifying Transaxle (2 Of 3)
G00977683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

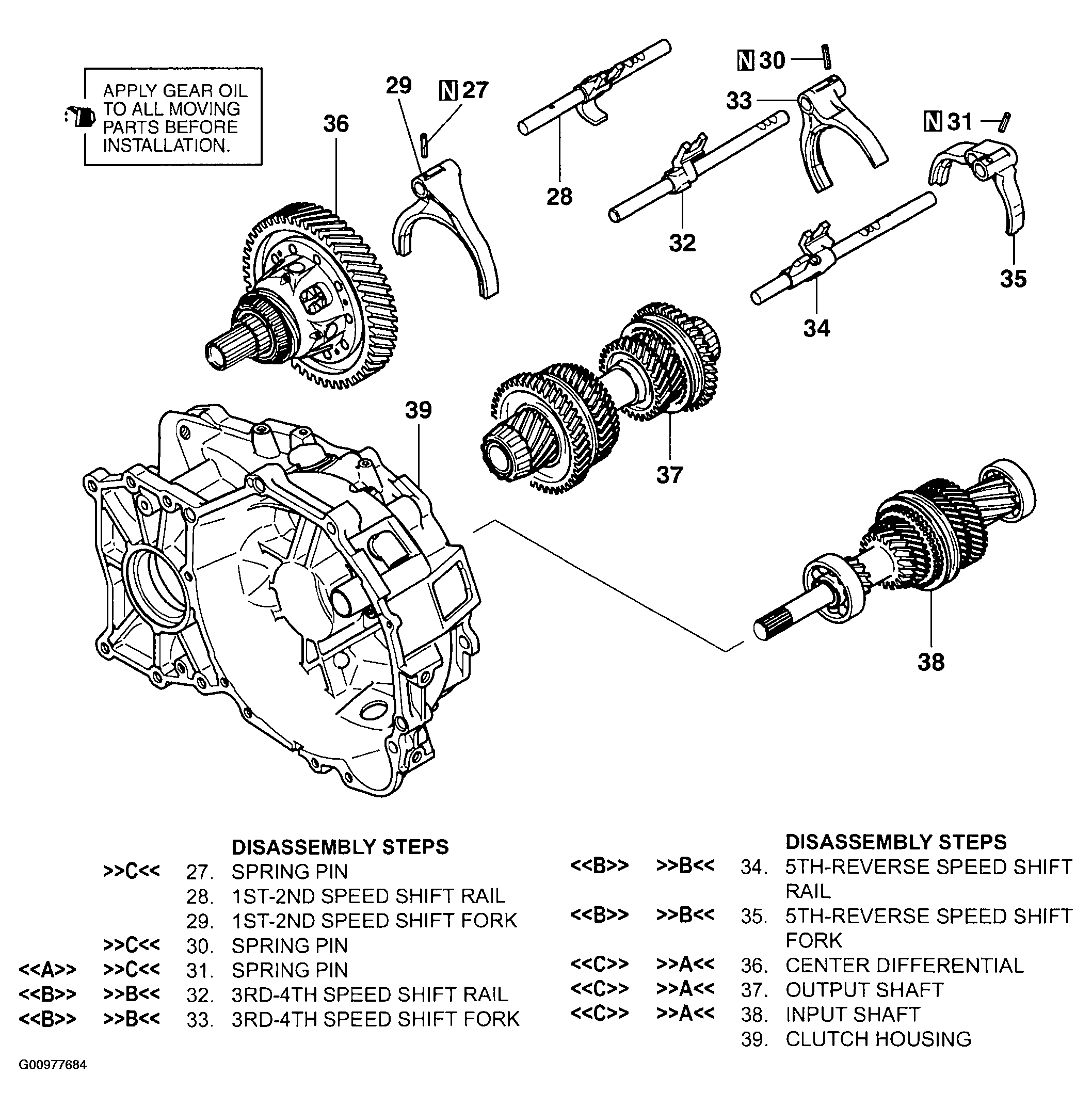

Fig 3: Identifying Transaxle (3 Of 3)
G00977684Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
