Defogger Relay Check

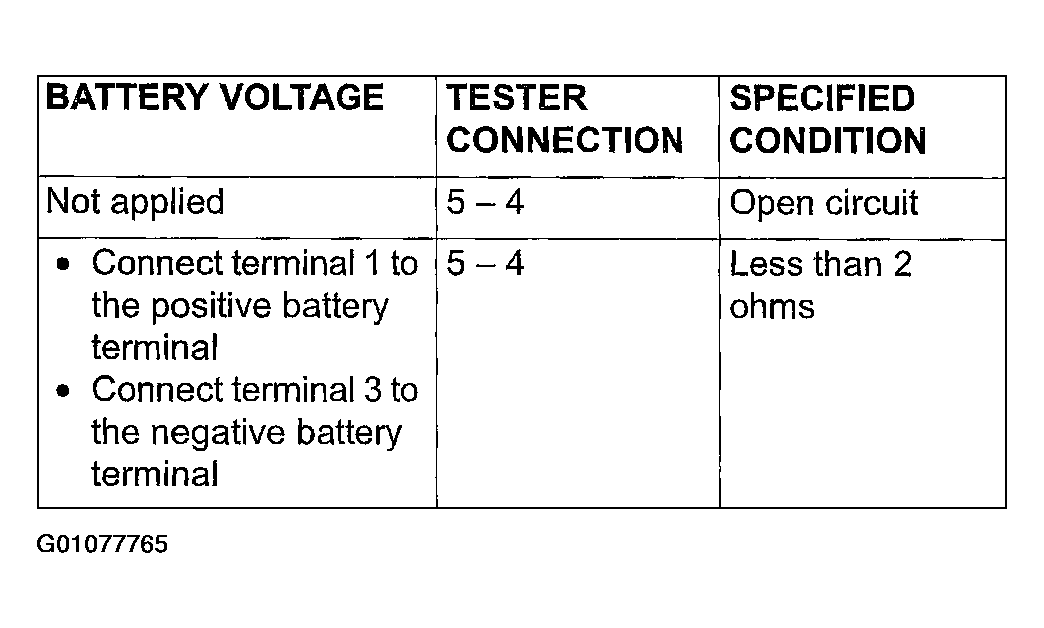

Fig 1: Identifying Tester Connector And Battery Voltage Specifications
G01077765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

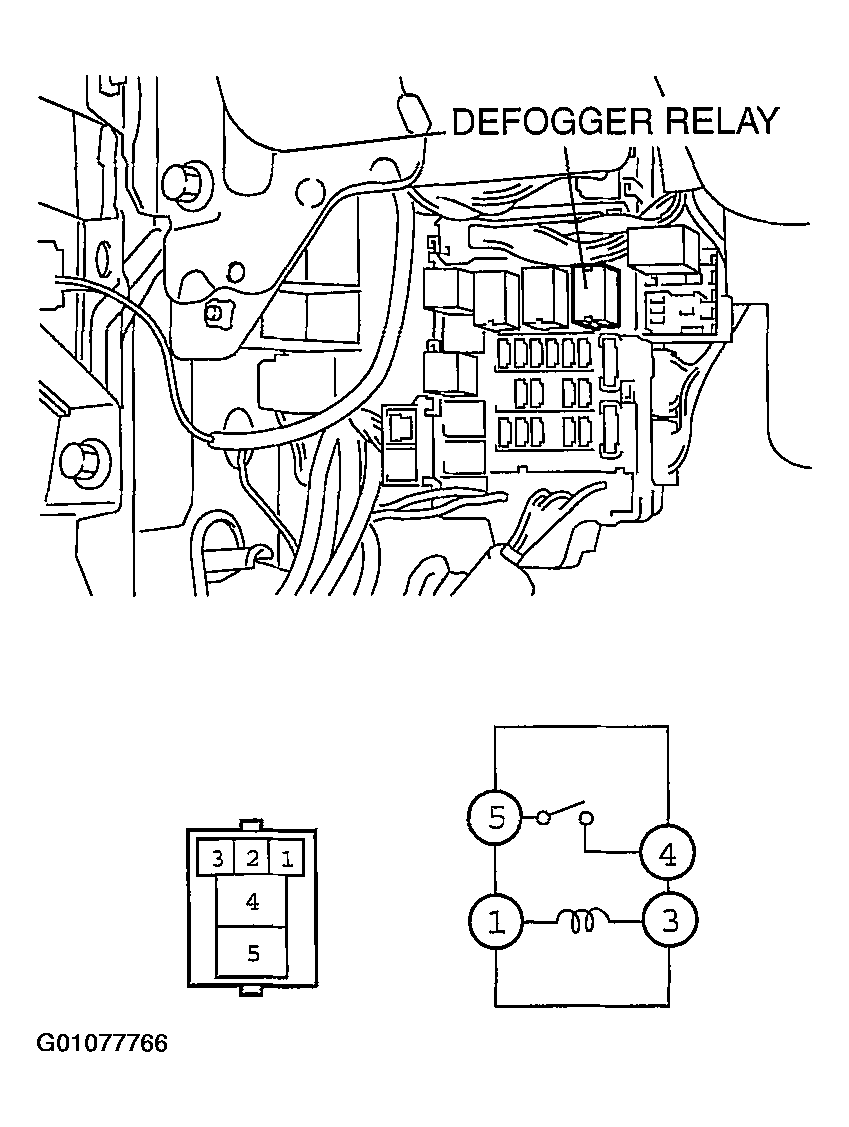

Fig 2: Locating Defogger Relay
G01077766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
