DTC 11: Transponder Communication System Or Radio Interference Of Encrypted Code: Notes

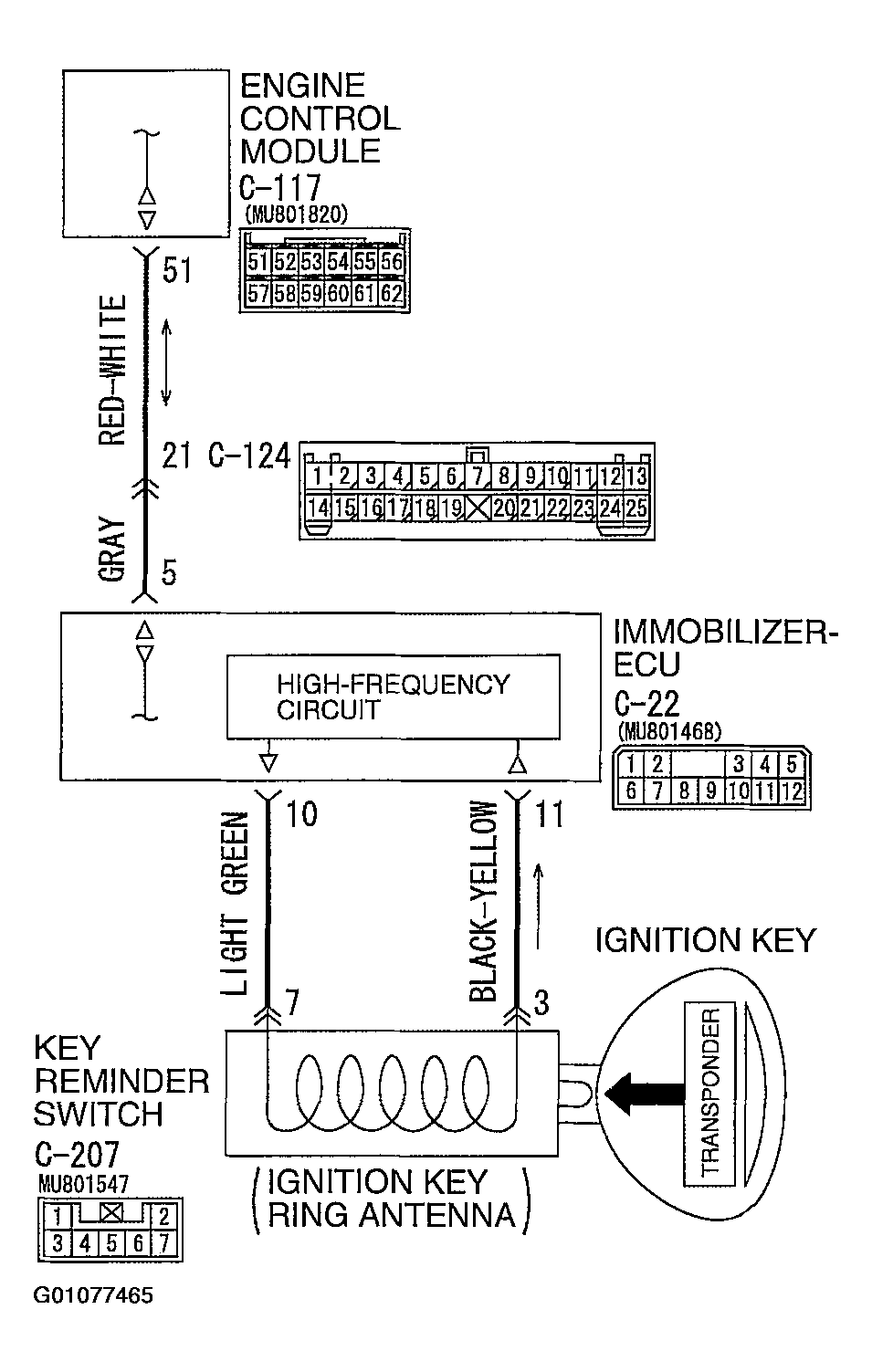

Fig 1: View Of Transponder Communication System Circuit Diagram And Connector Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

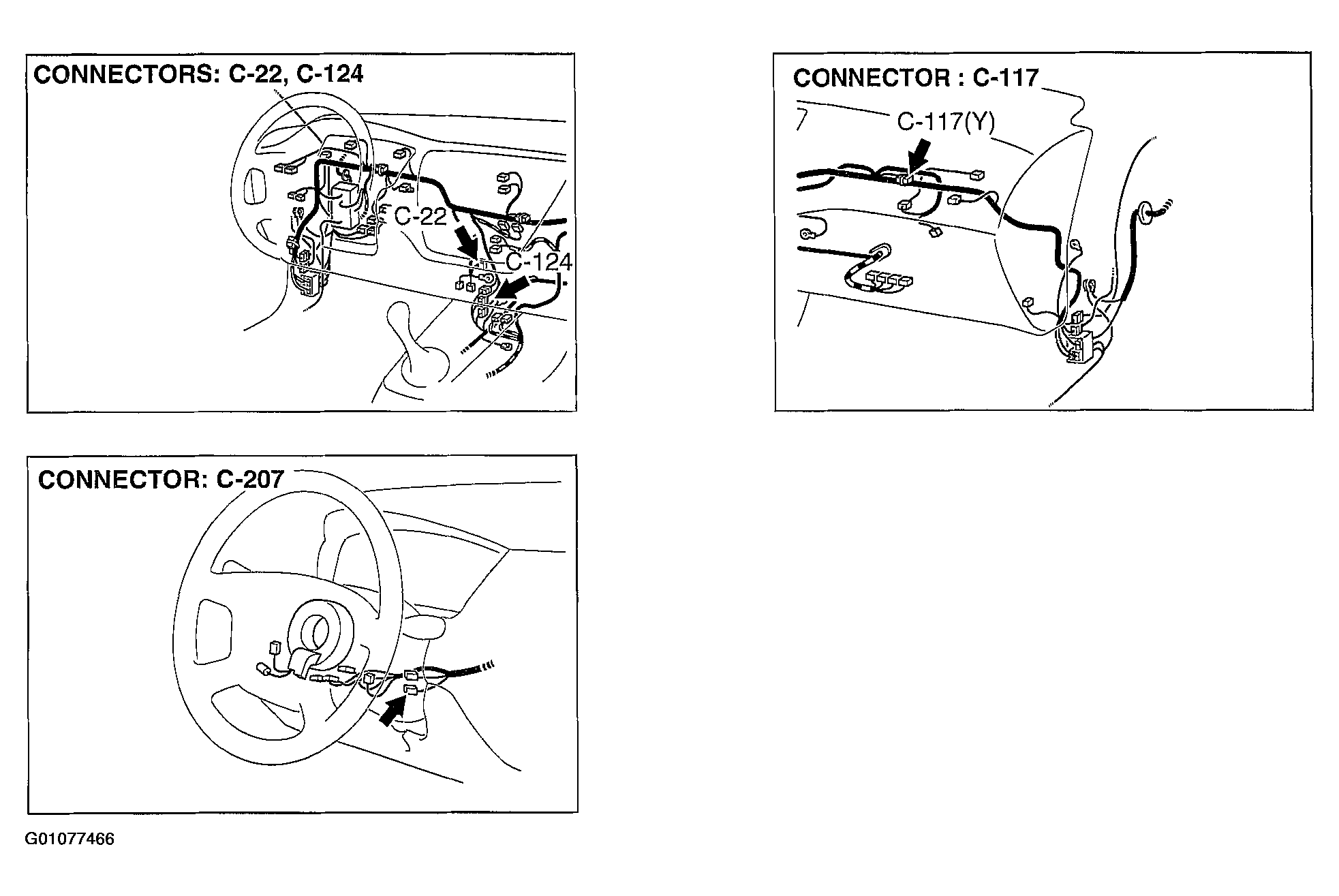

Fig 2: Identifying Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
