Disassembly And Assembly: Notes

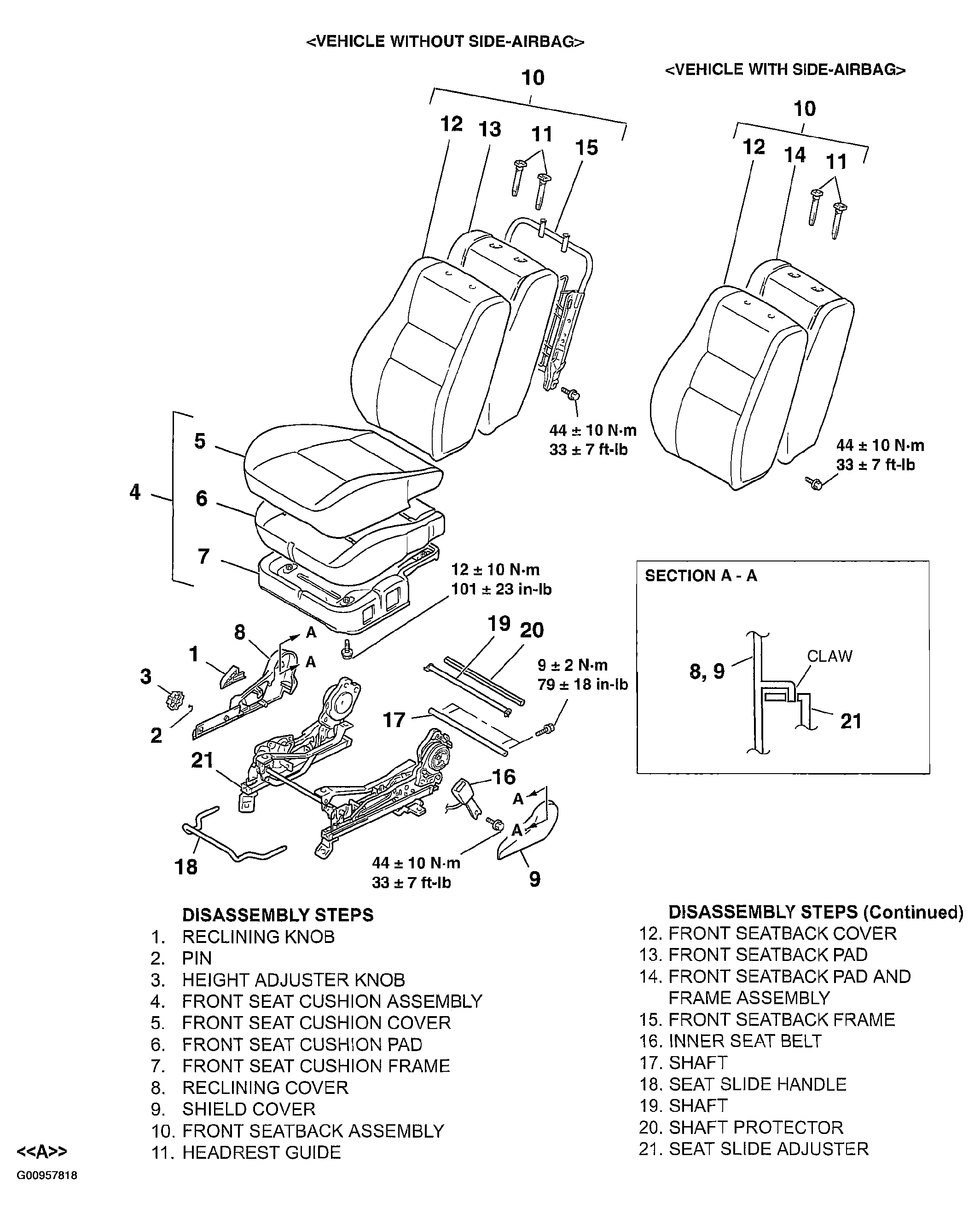

Fig 1: Installing/Removing Front Seat Assembly

G00957818

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
