Disassembly And Assembly: Notes

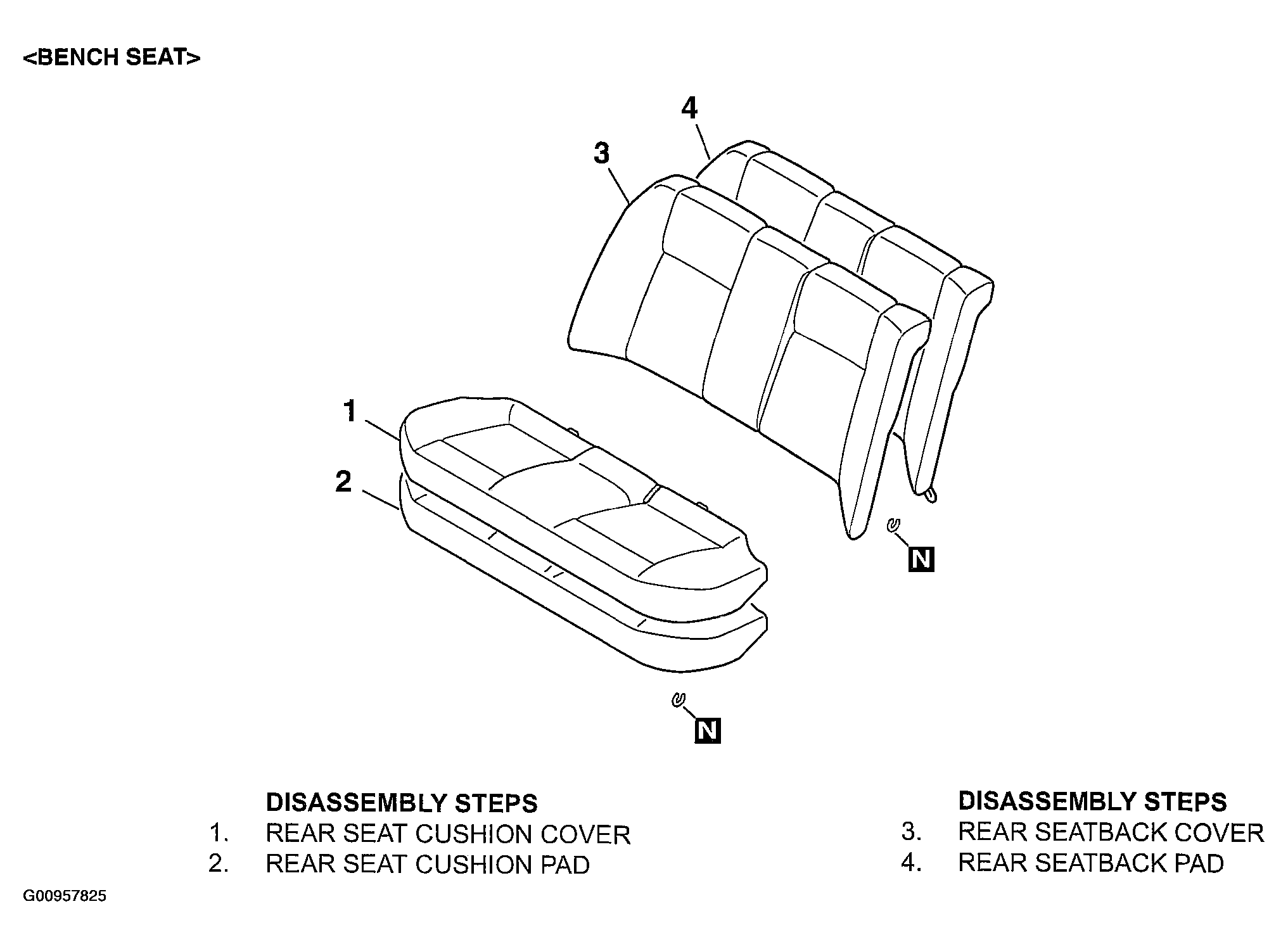

Fig 1: Disassembly Of Rear Seat Assembly (Bench Seat)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

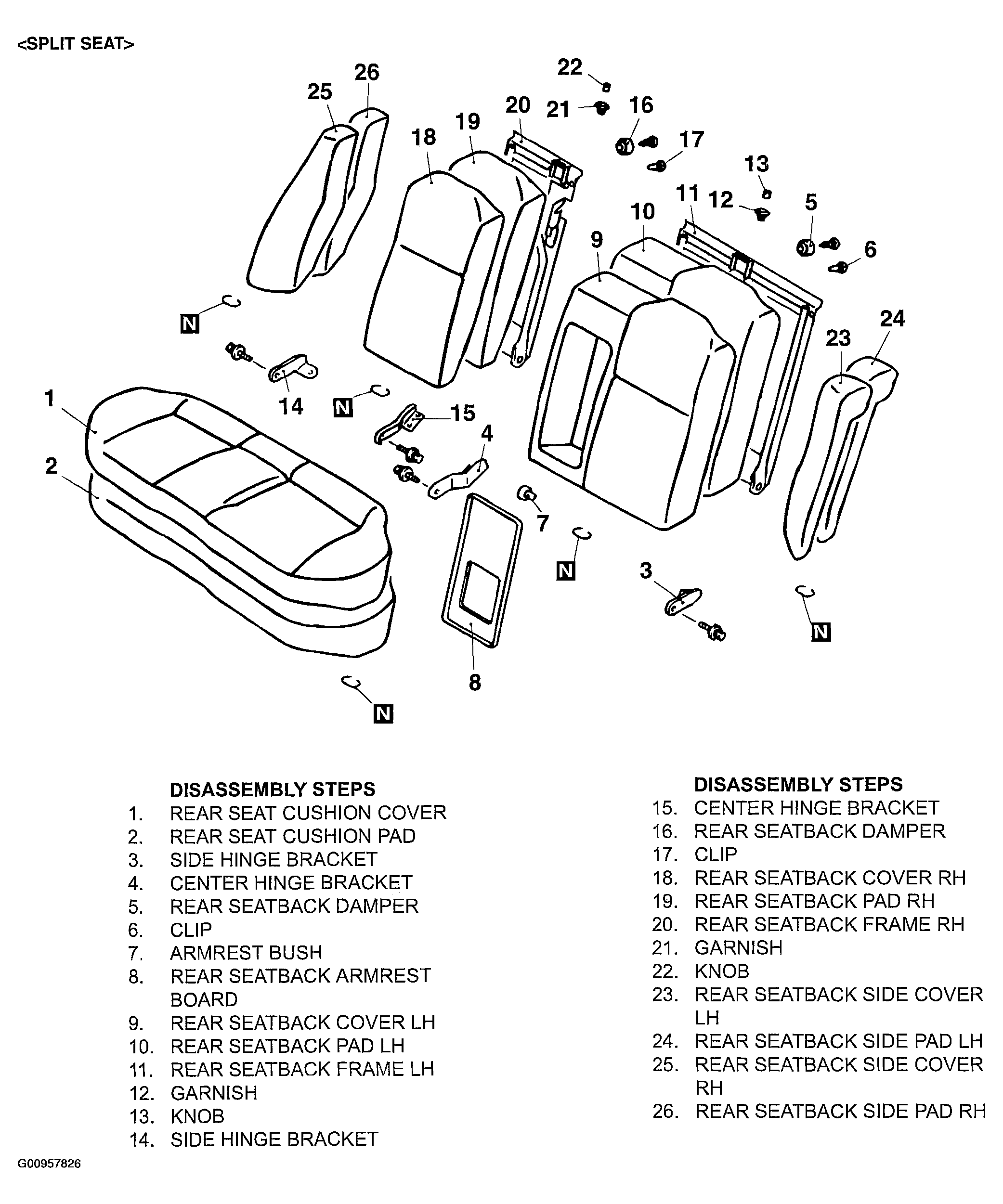

Fig 2: Disassembly Of Rear Seat Assembly (Split Seat)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
