Removal And Installation: Notes

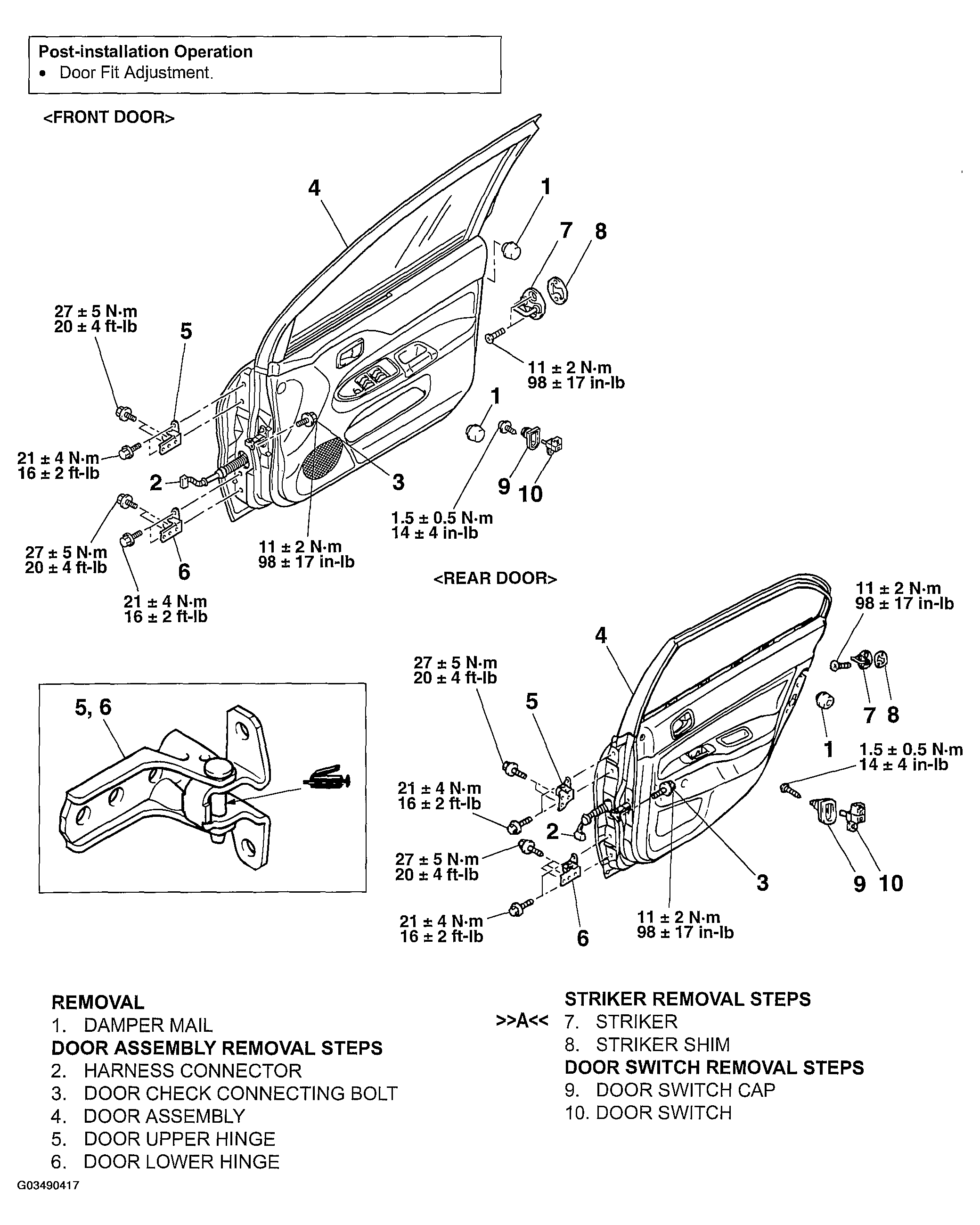

Fig 1: Exploded View Of Front Door Assembly
G03490417Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
