Connector B-07X Connector End View
Connector B-07X Connector End View

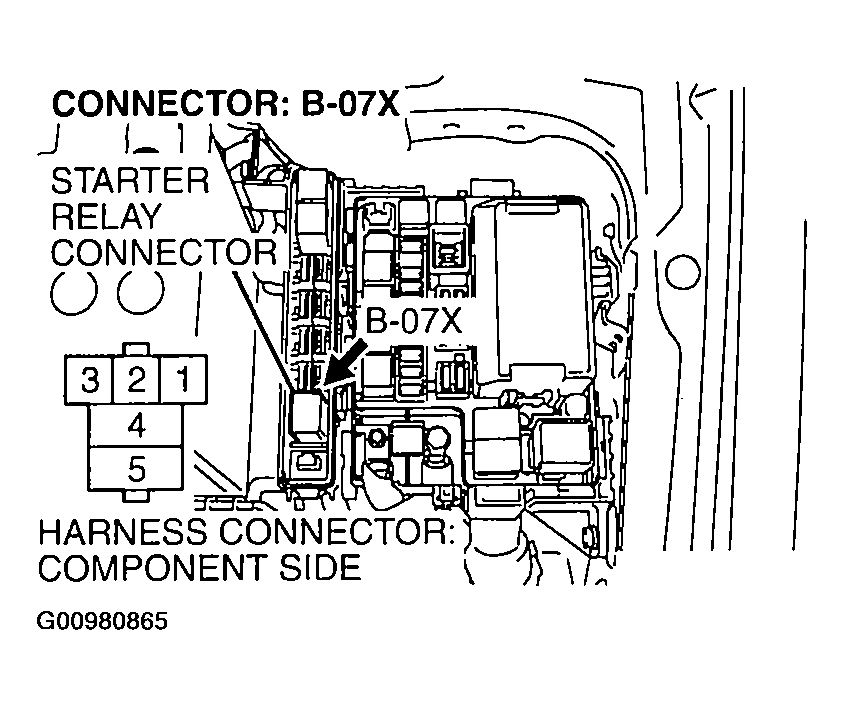

Fig 1: Connector B-07X Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
