OEM Connector End Views - Evolution
›
Connector End Views
›
Fuel Pump Connector D-12 Connector End View
Fuel Pump Connector D-12 Connector End View

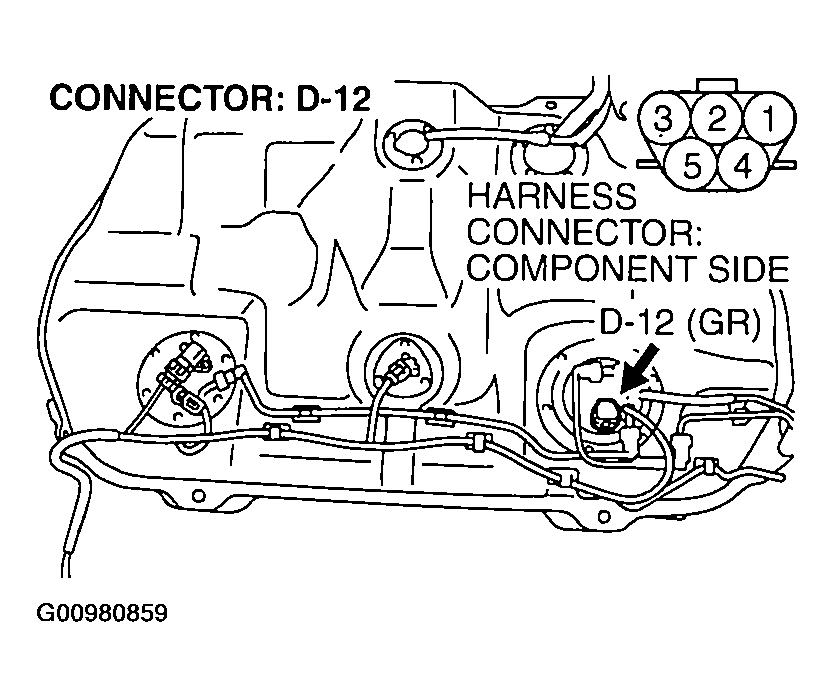

Fig 1: Fuel Pump Connector D-12 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
