OEM Connector End Views - Evolution
›
Connector End Views
›
Stoplight Switch Connector C-102 Connector End View
Stoplight Switch Connector C-102 Connector End View

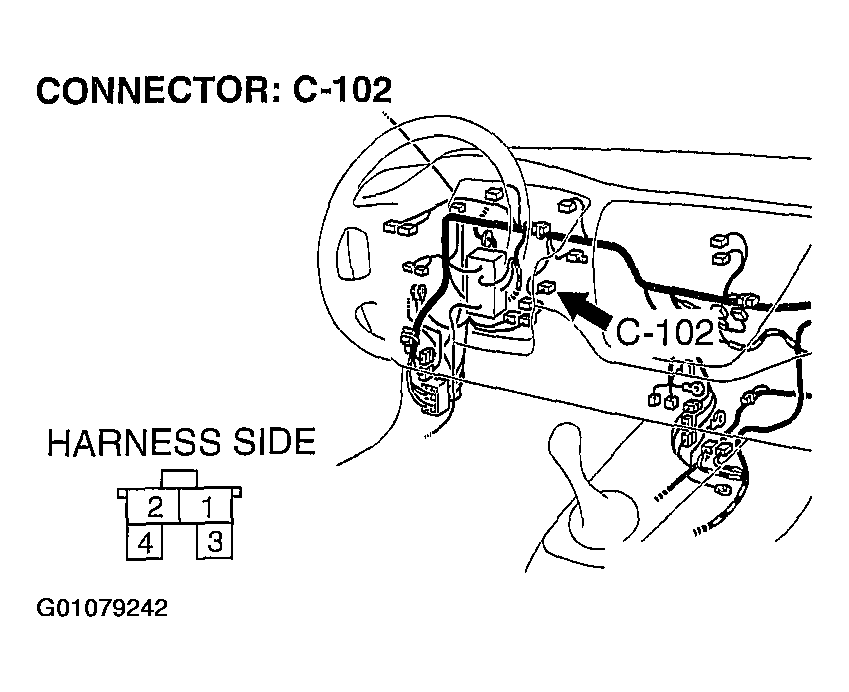

Fig 1: Stoplight Switch Connector C-102 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
