Instrument Panel Assembly - Evolution
›
Instrument Panel Assembly
›
Disassembly And Assembly
Disassembly And Assembly

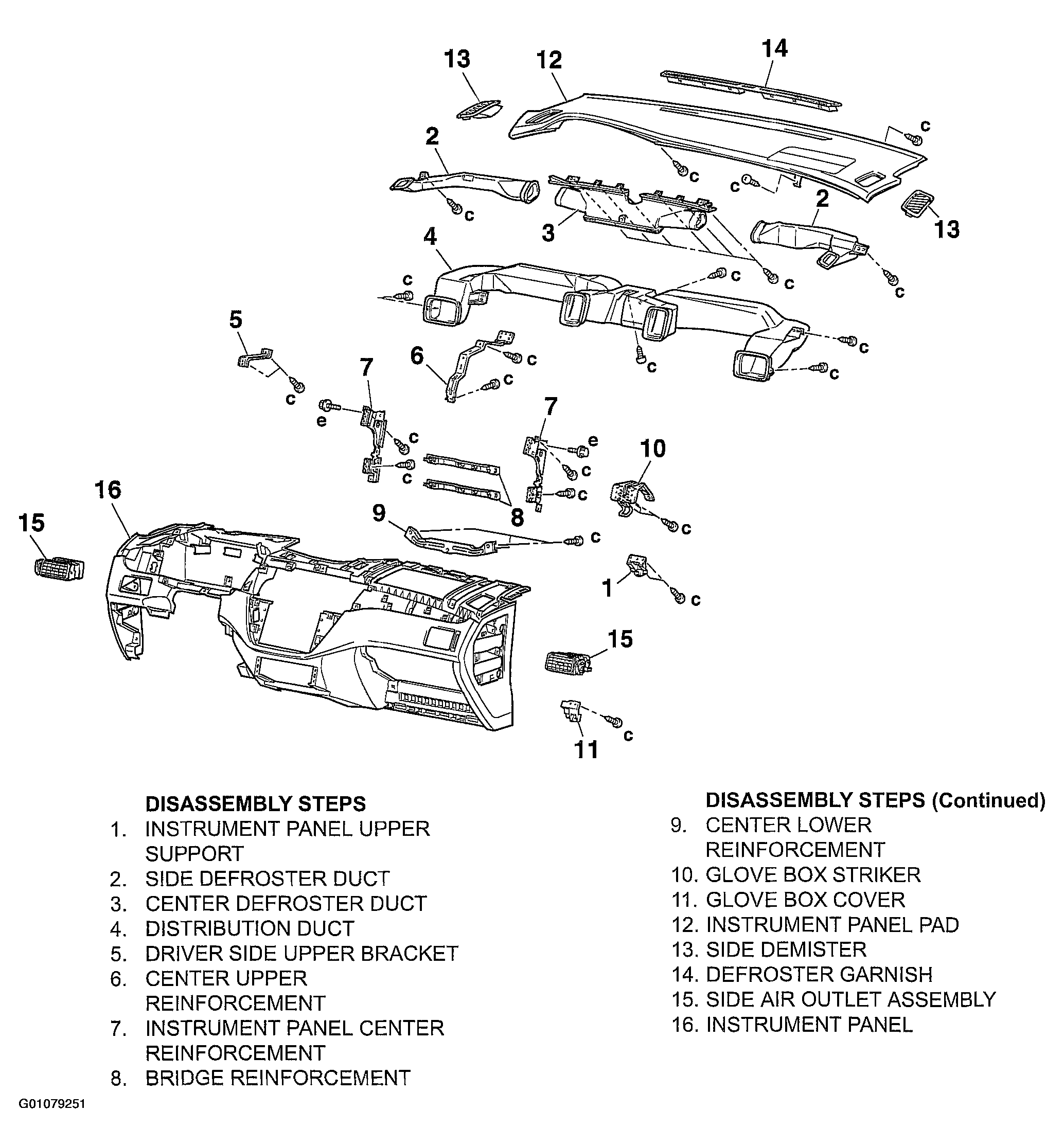

Fig 1: Identifying Instrument Panel Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
