Removal And Installation: Notes

CAUTION: If the vehicle is equipped with the Brembo^™ disc brake, during maintenance, take care not to contact the caliper with tools or parts, because the caliper paint will be scratched.

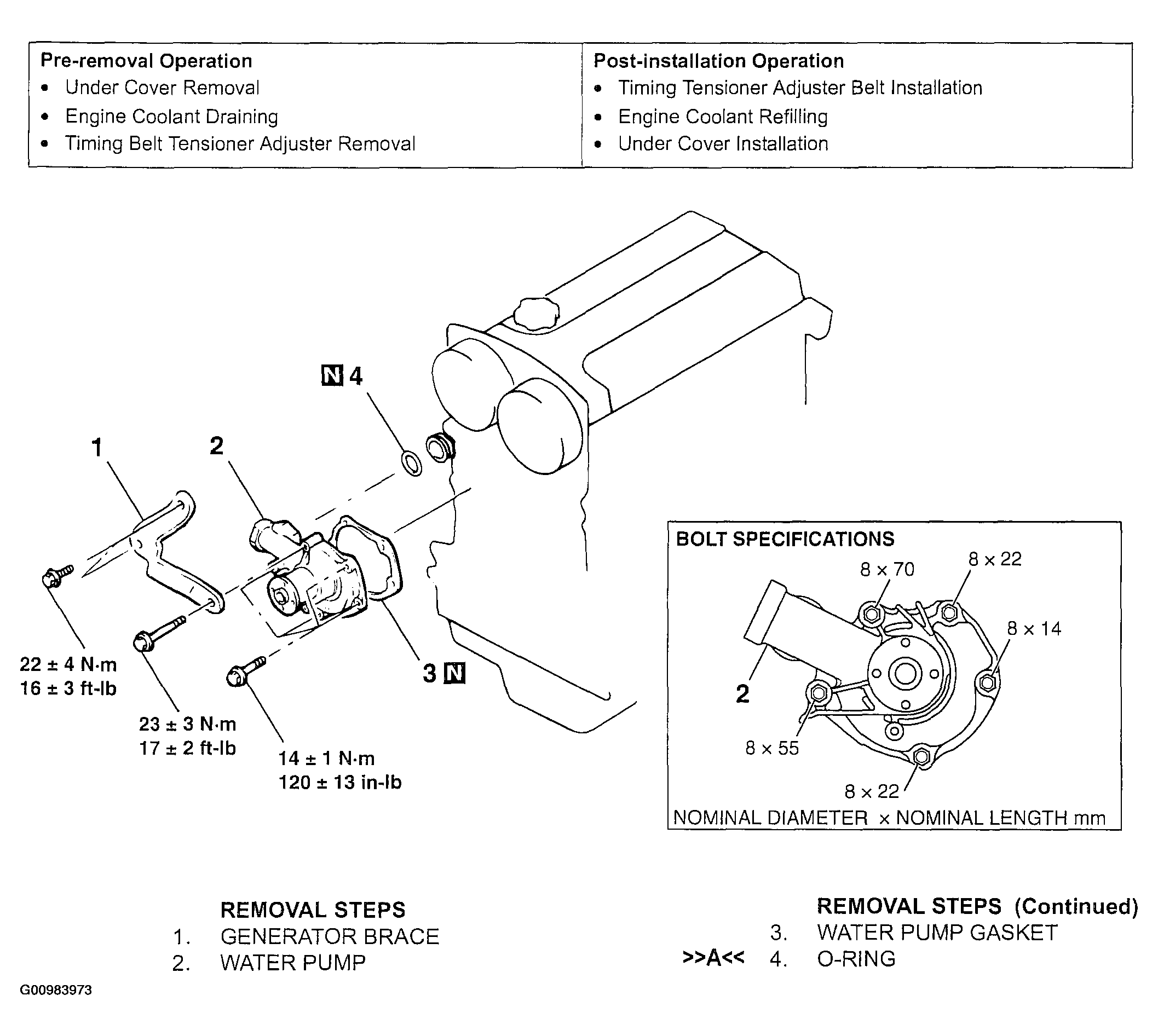

Fig 1: Removing Water Pump

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
