Home › Mitsubishi › 2004 › Lancer Evolution › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine Overhaul - 2.0L › Intake Manifold › Removal And Installation › Notes

Removal And Installation: Notes

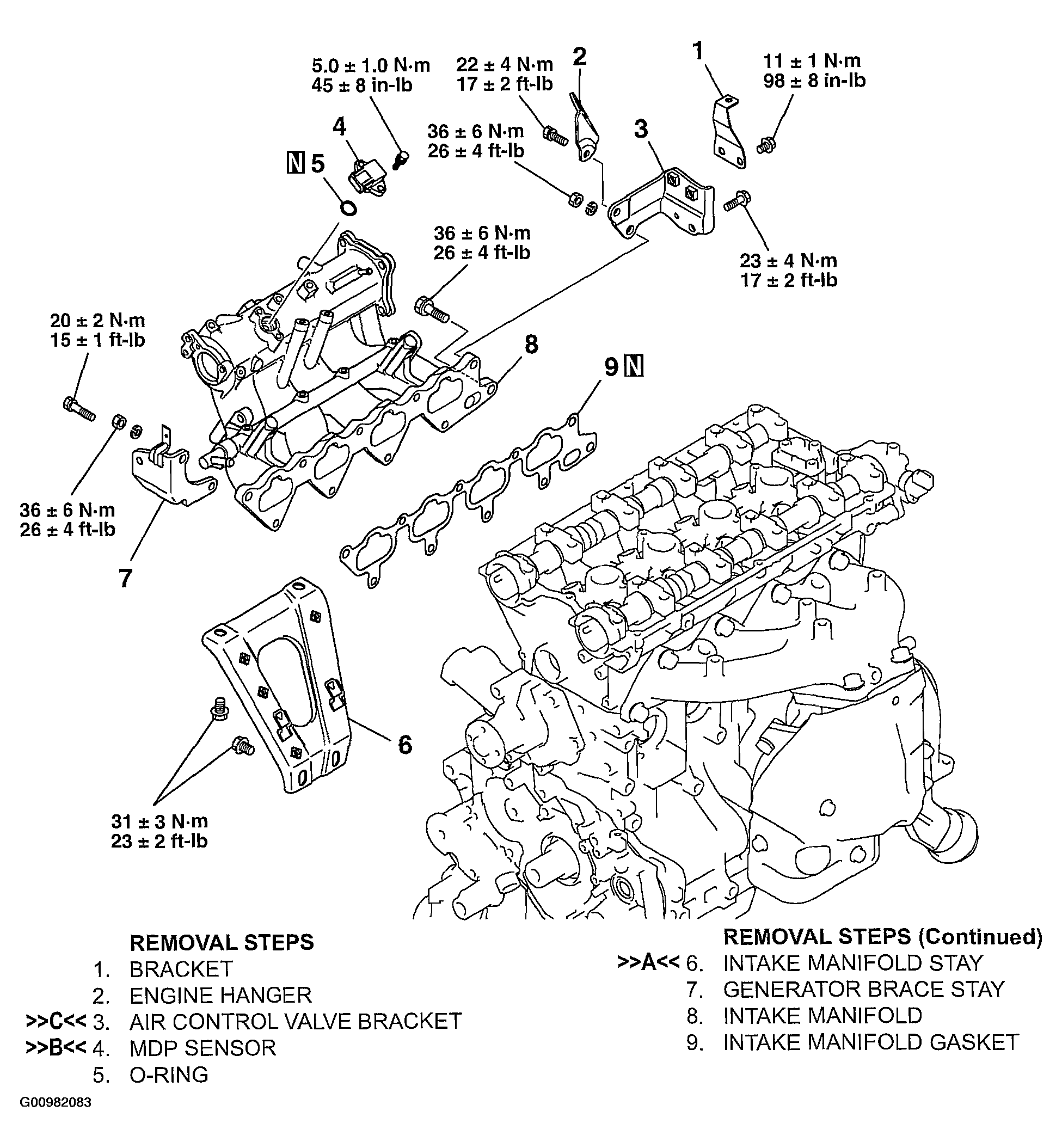

Fig 1: Exploded View Of Intake Manifold Components
G00982083Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
