Emission Control System - Evolution
›
Emission Control
›
Diagnosis
Emission Control: Diagnosis

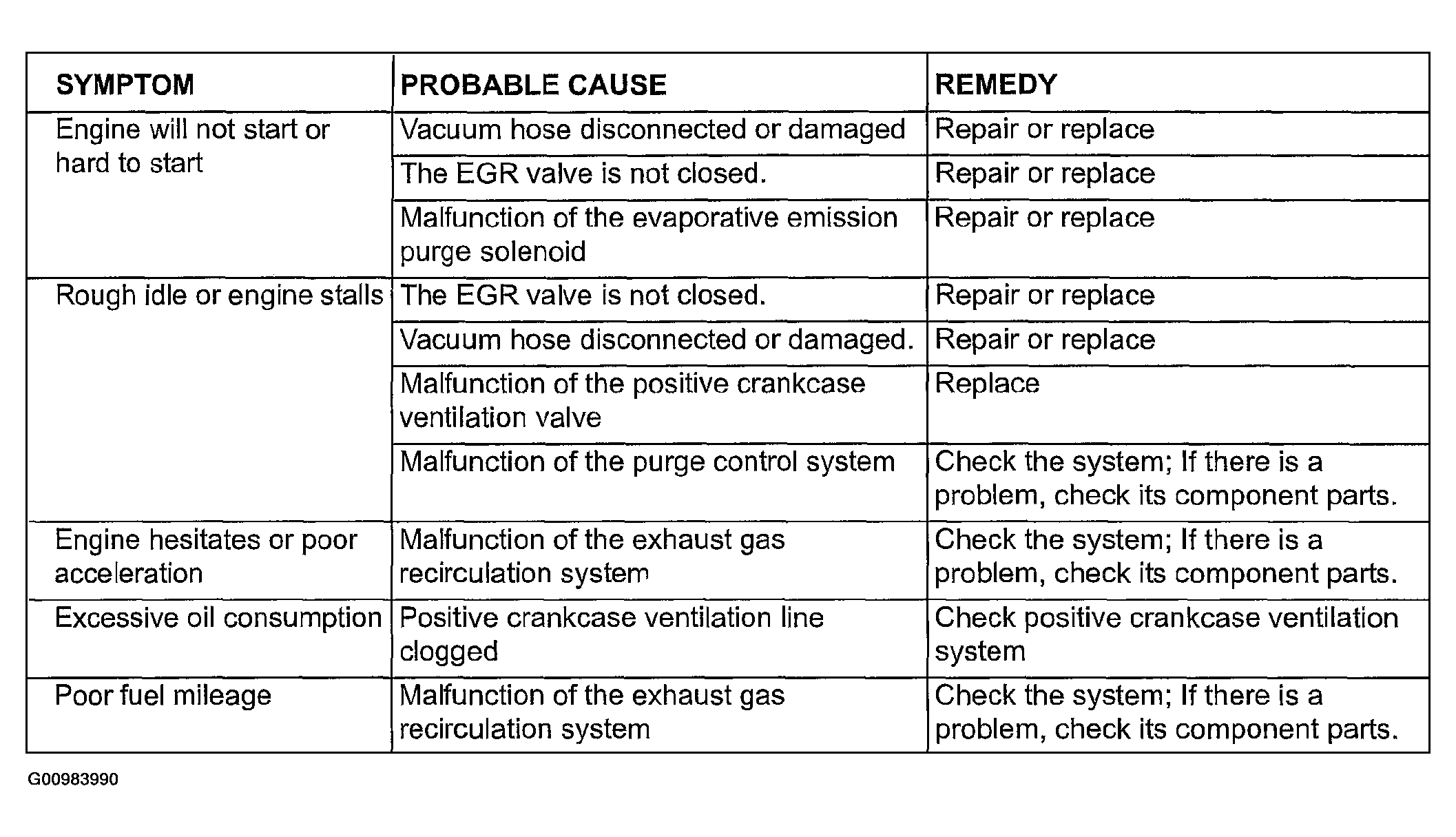

Fig 1: Identifying Emission Control Diagnosis Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
