Vacuum Circuit Diagram
Vacuum Circuit Diagram

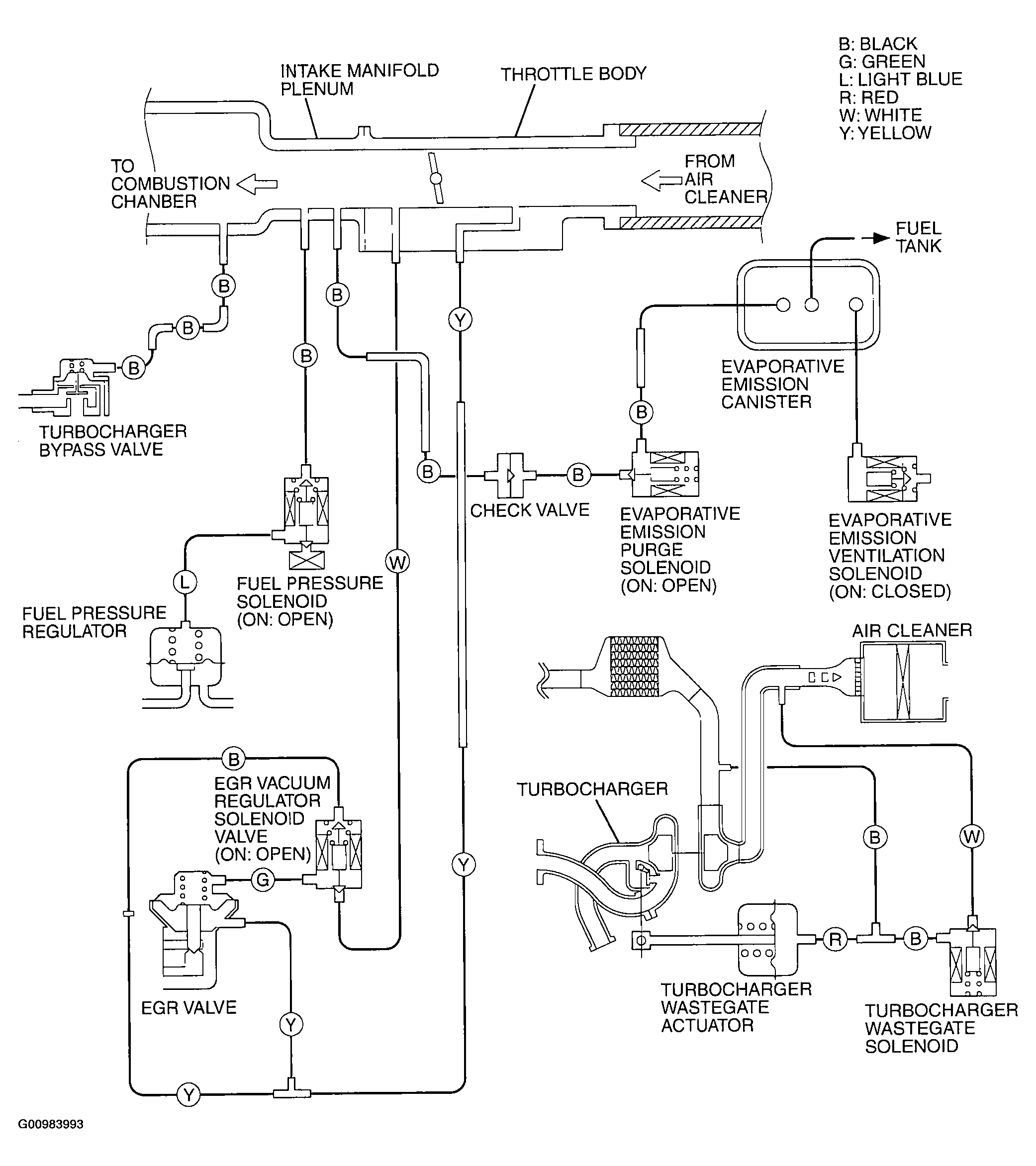

Fig 1: Identifying Vacuum Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
