Engine Control System - Evolution
›
Accelerator Cable And Pedal
›
Removal And Installation
›
Notes
Removal And Installation: Notes

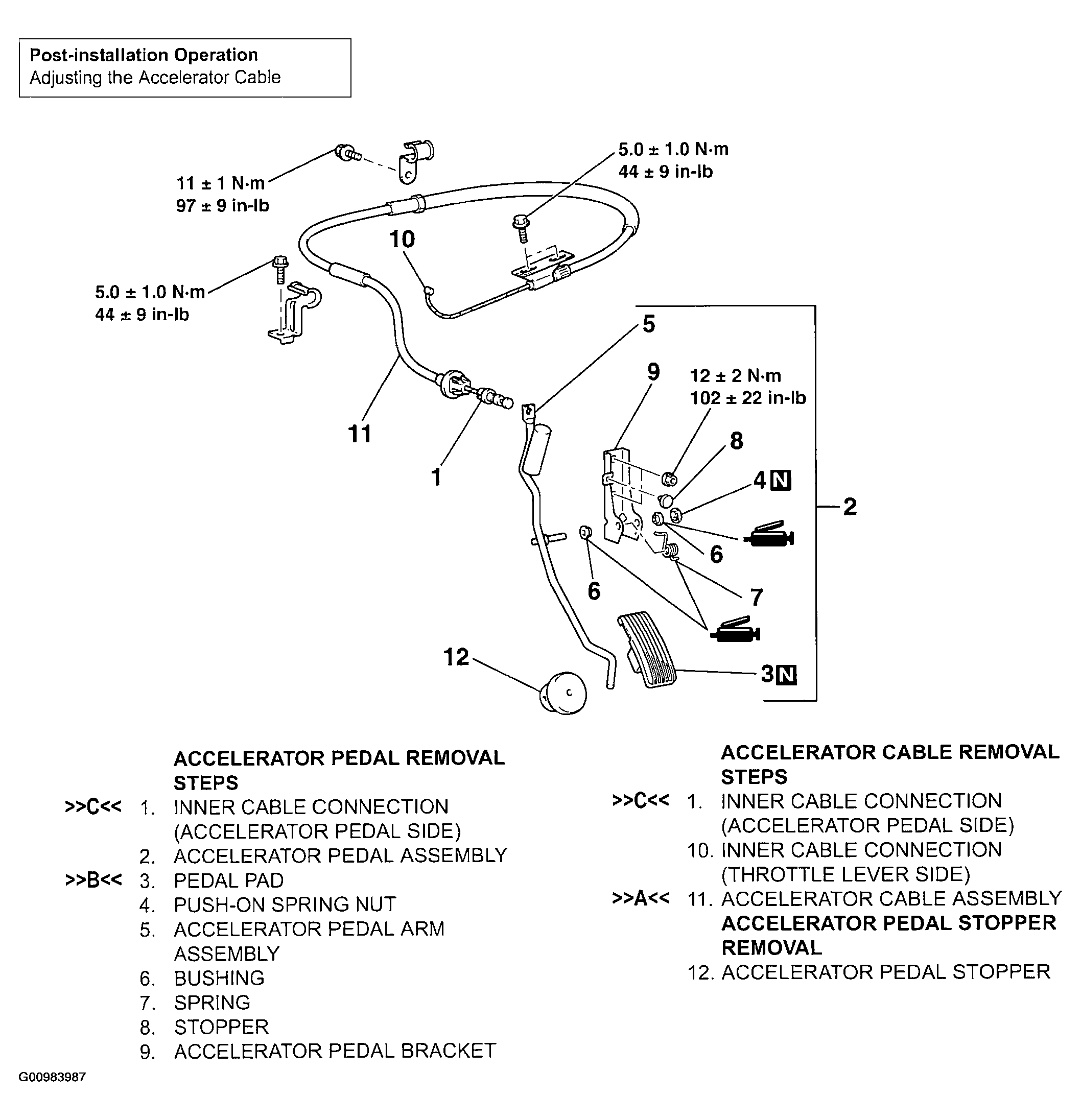

Fig 1: Identifying Accelerator Cable And Pedal Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
