Fuel Pump Module Disassembly And Assembly
›
< Fuel Pipe And Gauge Assembly>
< Fuel Pipe And Gauge Assembly>

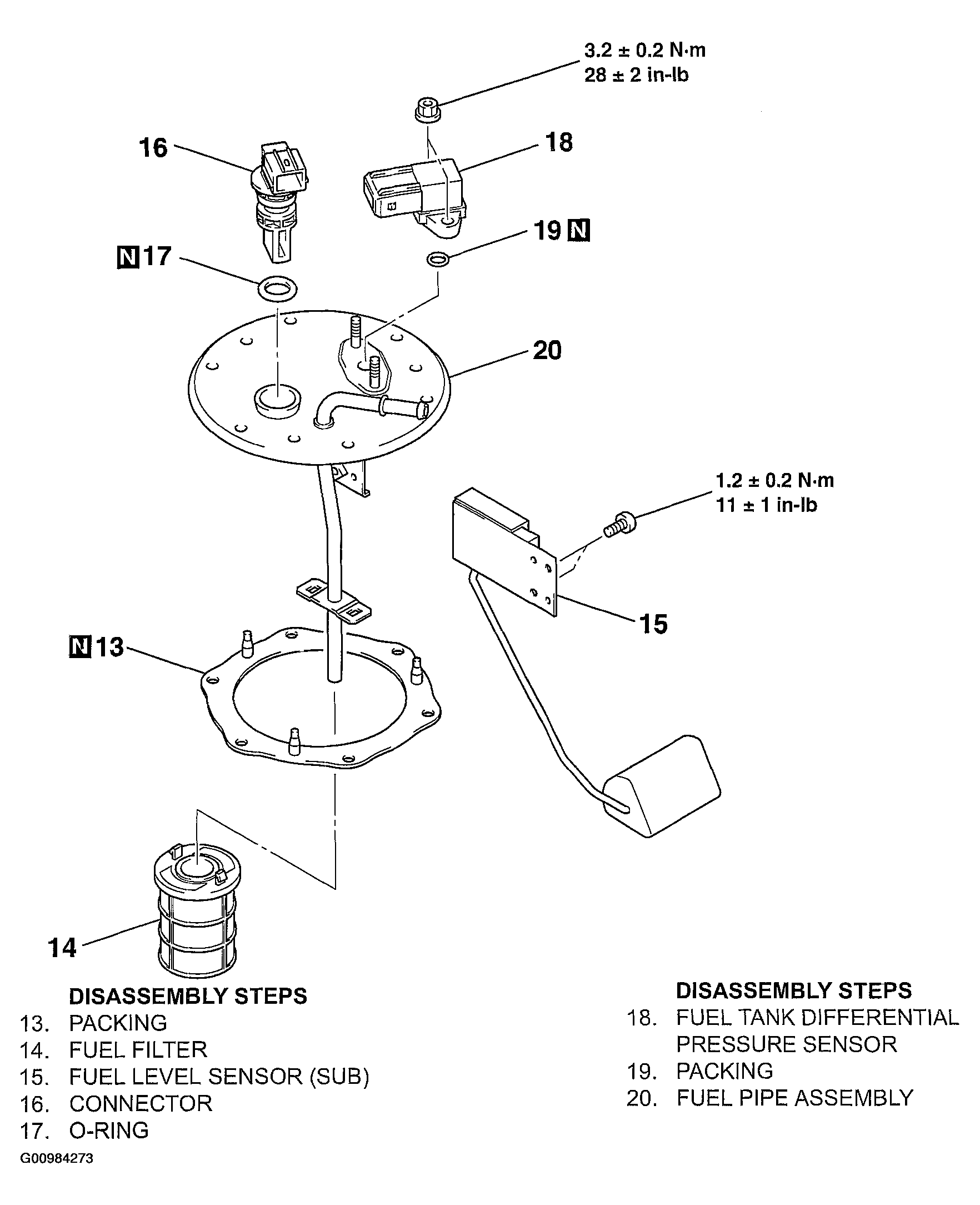

Fig 1: Exploded View Of Fuel Pipe And Gauge Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
