Fuel Pump Module Disassembly And Assembly
›
< Fuel Pump Module >
< Fuel Pump Module >

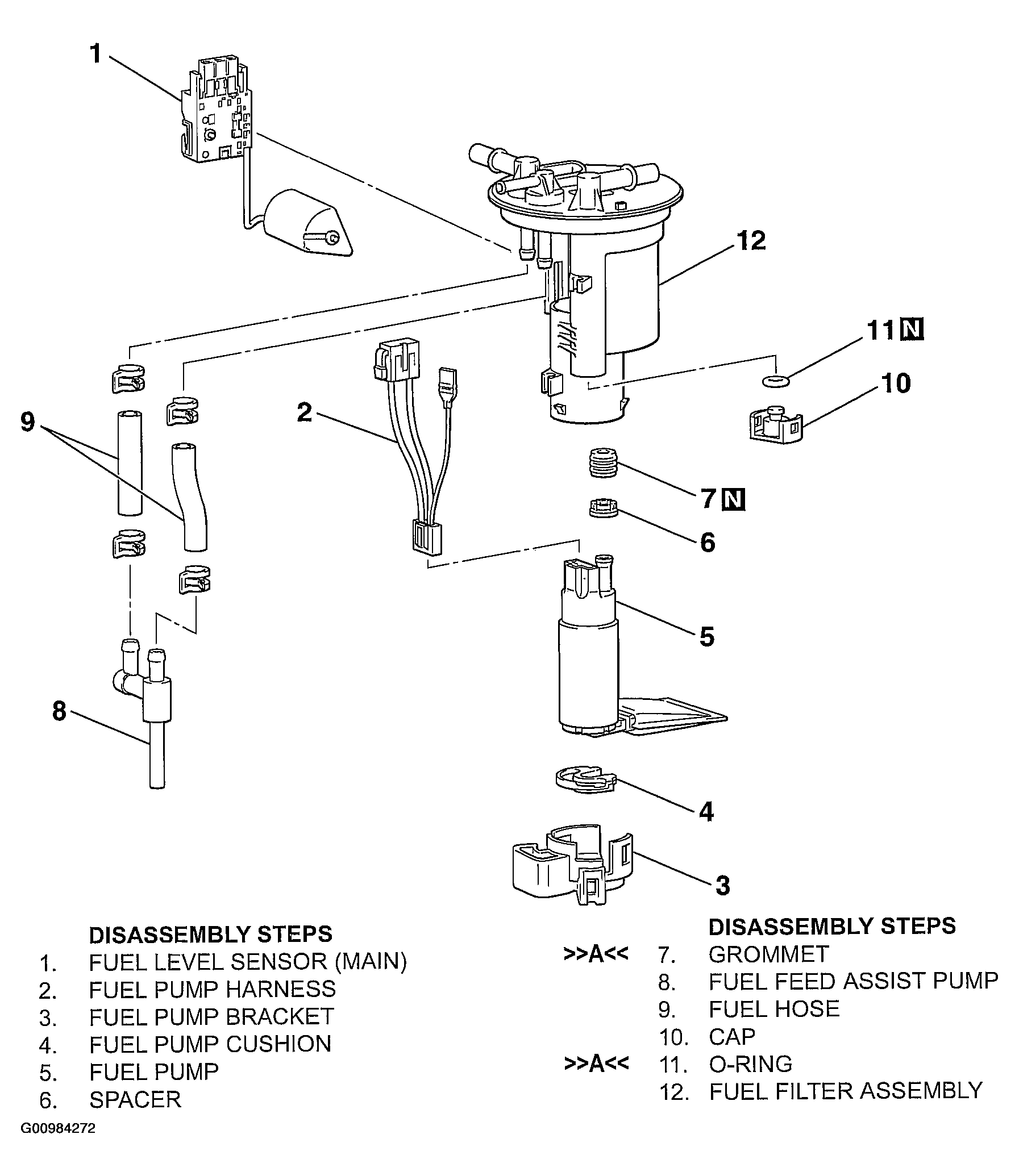

Fig 1: Exploded View Of Fuel Pump Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
