Removal And Installation: Notes

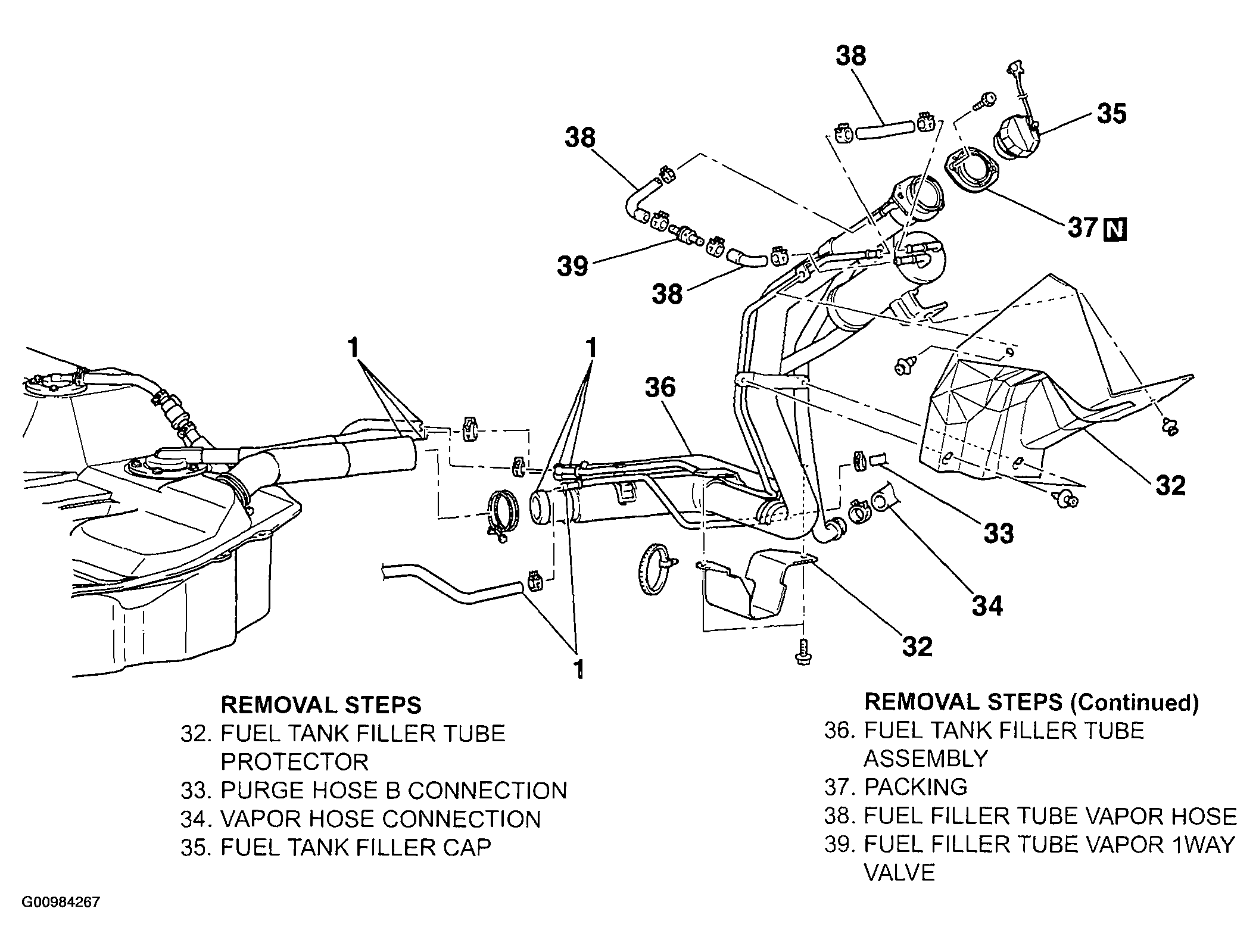

Fig 1: Removing Fuel Tank (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

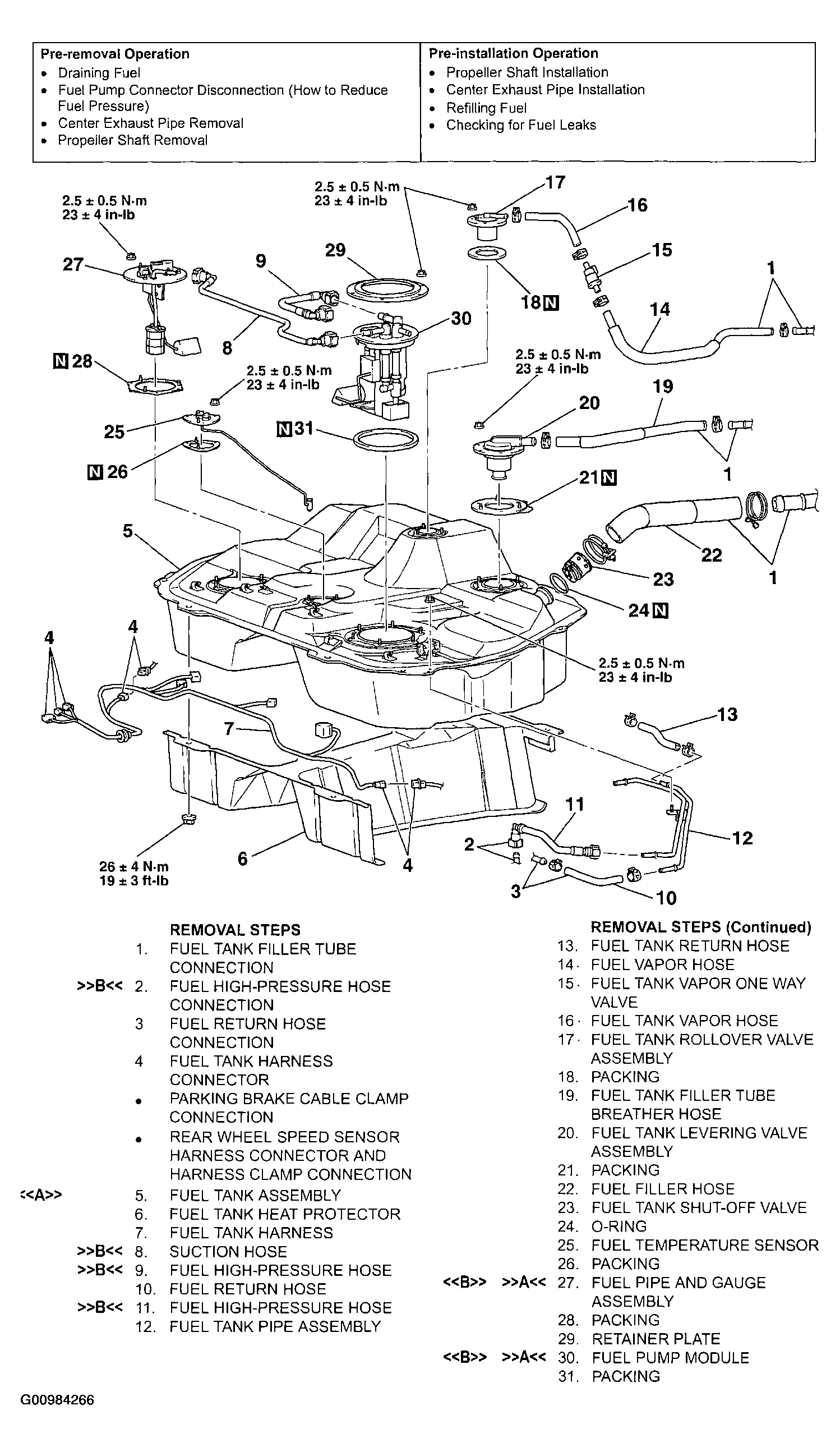

Fig 2: Removing Fuel Tank (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991348: Test Harness Set
