Component Locations

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for SRS component locations. See Fig 1 .

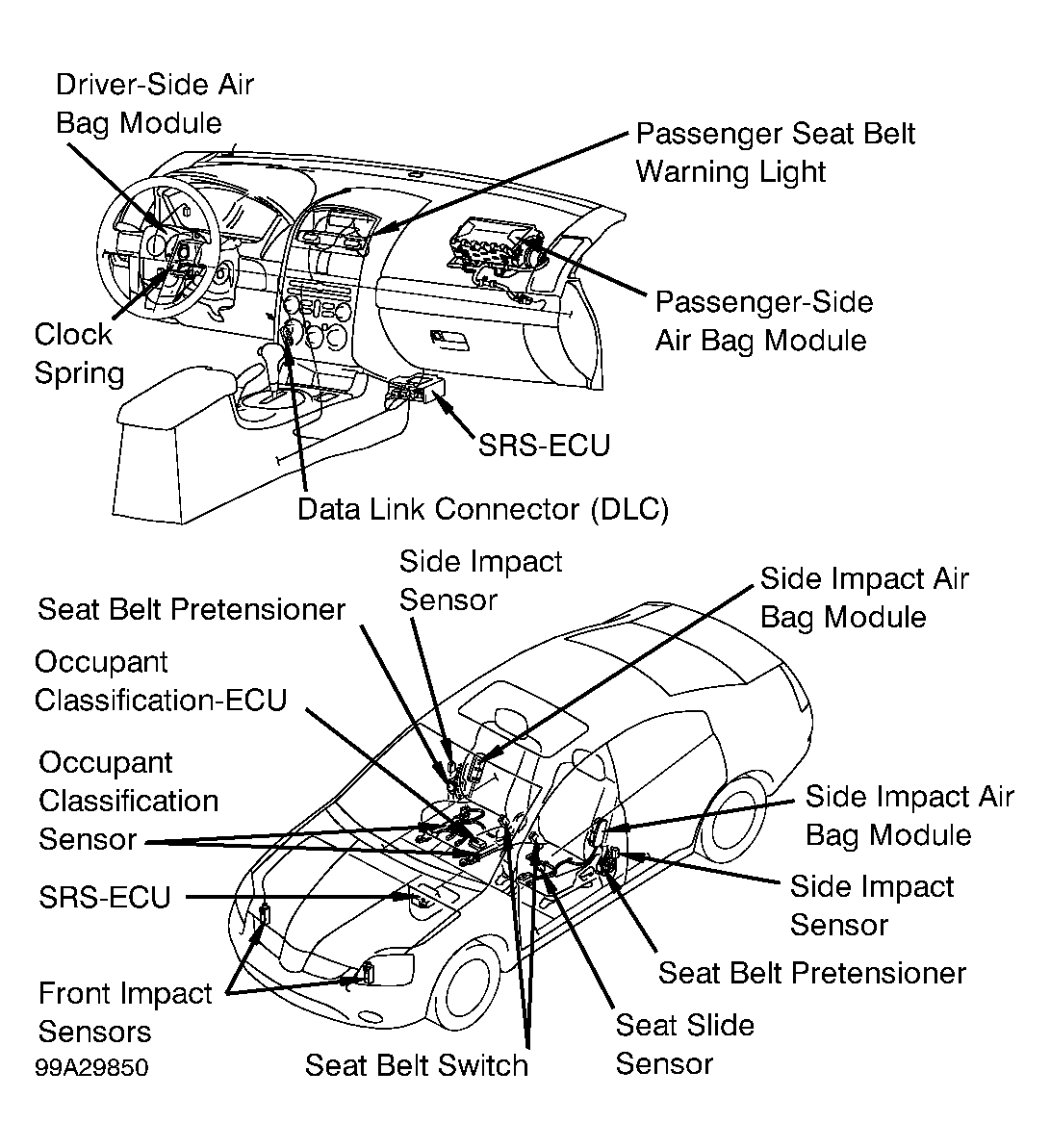

Fig 1: Locating Restraint System Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
