Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

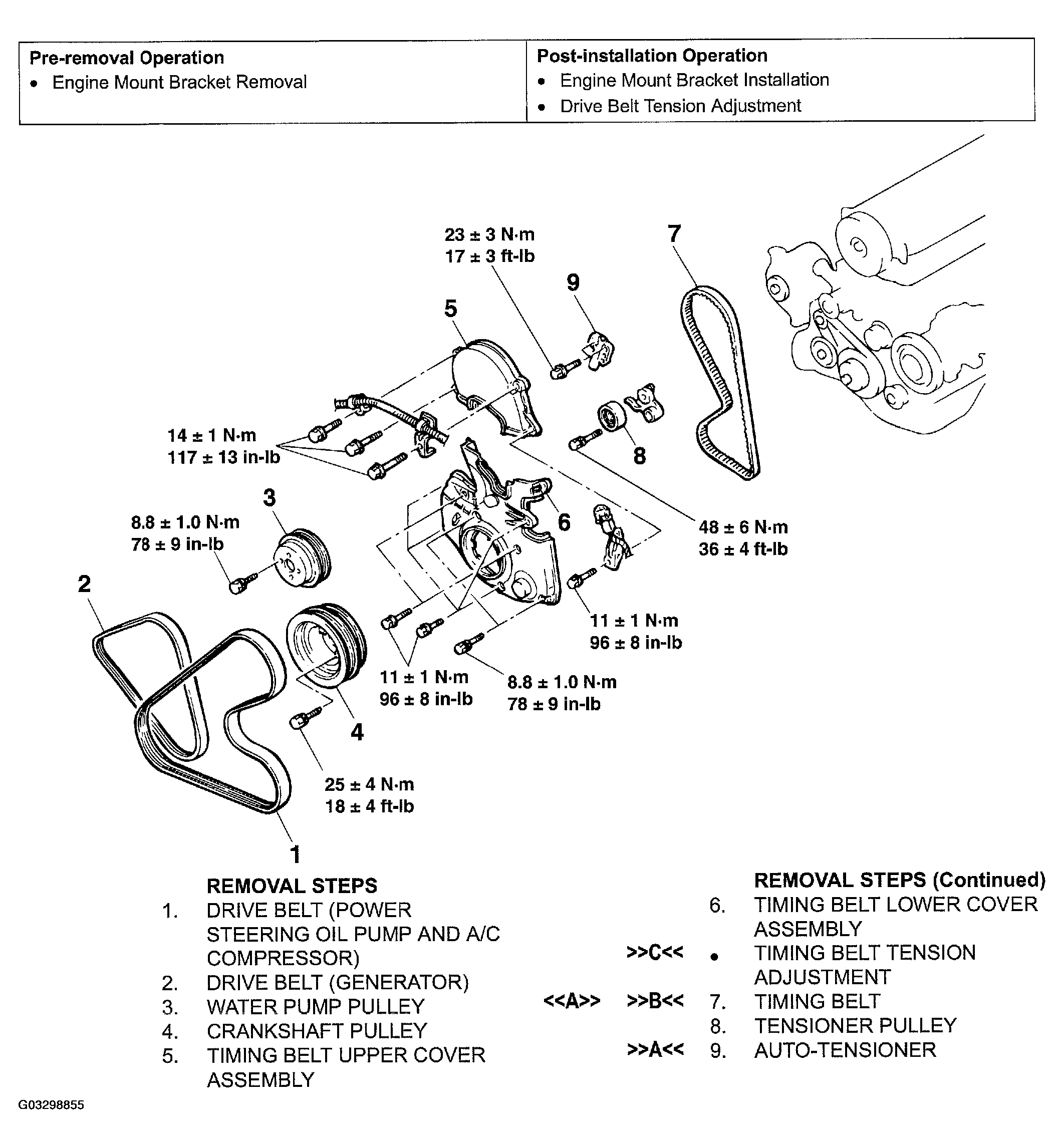

Fig 1: Removing & Installing Timing Belt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998738: Adjusting Screw
MD998767: Tensioner Wrench
