Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal and Post-installation Operation

Engine Coolant Draining and Supplying (Refer to 14. ENGINE COOLANT (CHANGE) .)
Timing Belt Tensioner Pulley Removal and Installation (Refer to TIMING BELT .)

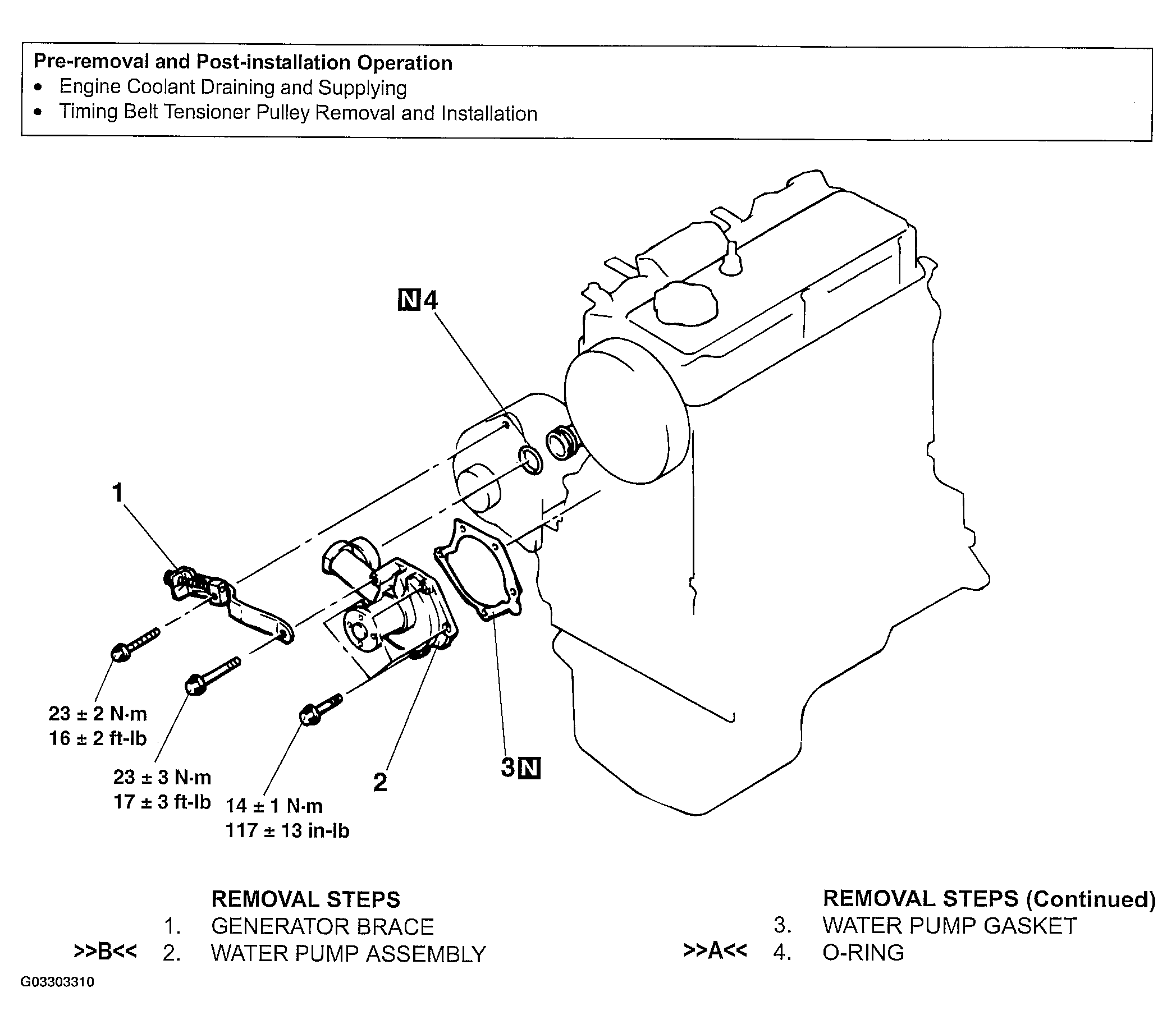

Fig 1: Removing And Installing Water Pump Components (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Pre-removal and Post-installation Operation

Engine Coolant Draining and Supplying (Refer to .)
Timing Belt Removal and Installation (Refer to REMOVAL AND INSTALLATION .)

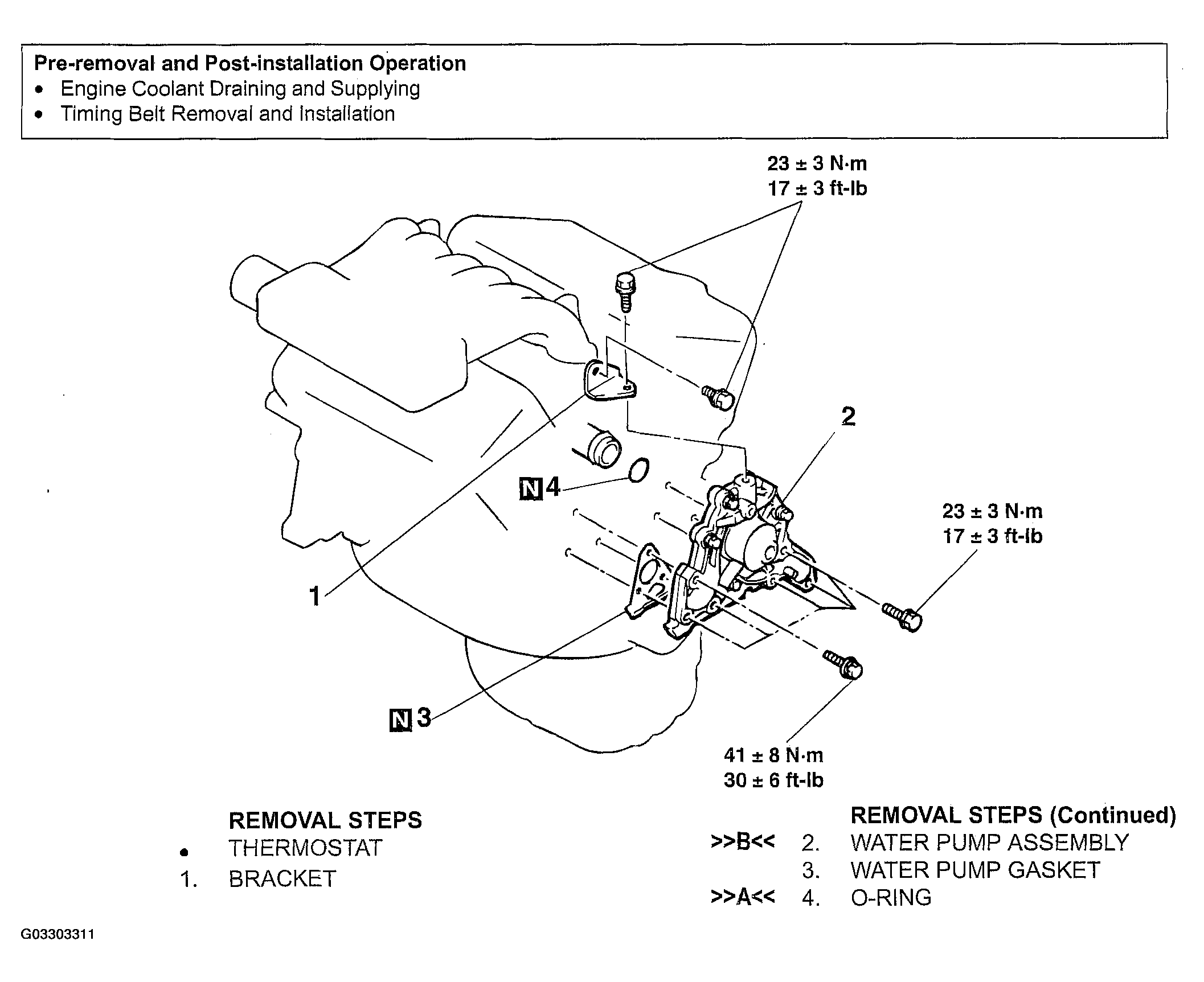

Fig 2: Removing And Installing Water Pump Components (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
