2.4L Engine

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: An Asterisk indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

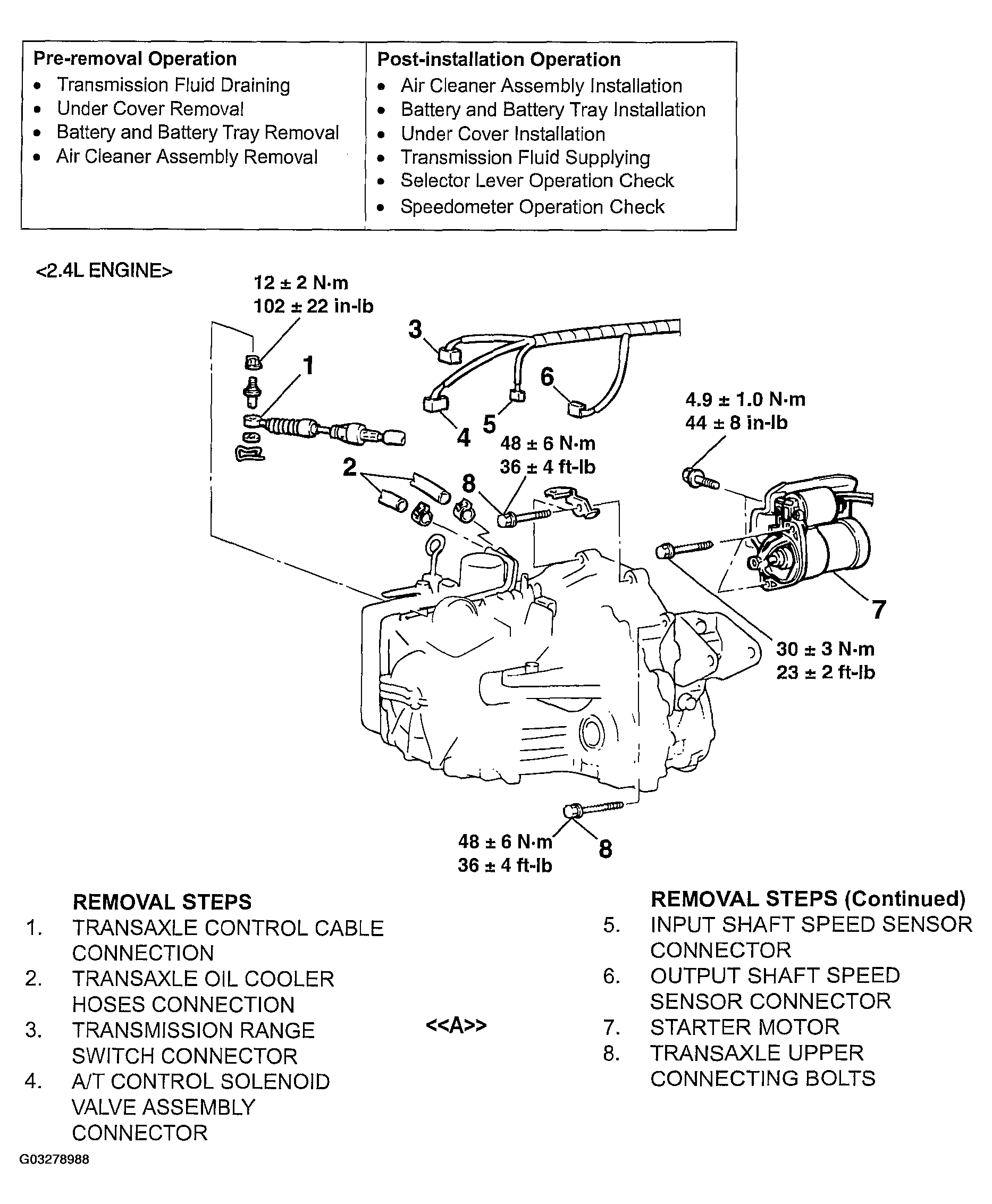

Fig 1: Removal/Installation Of Transaxle Assembly (2.4L Engine) (1 Of 2)
G03278988Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: An Asterisk indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

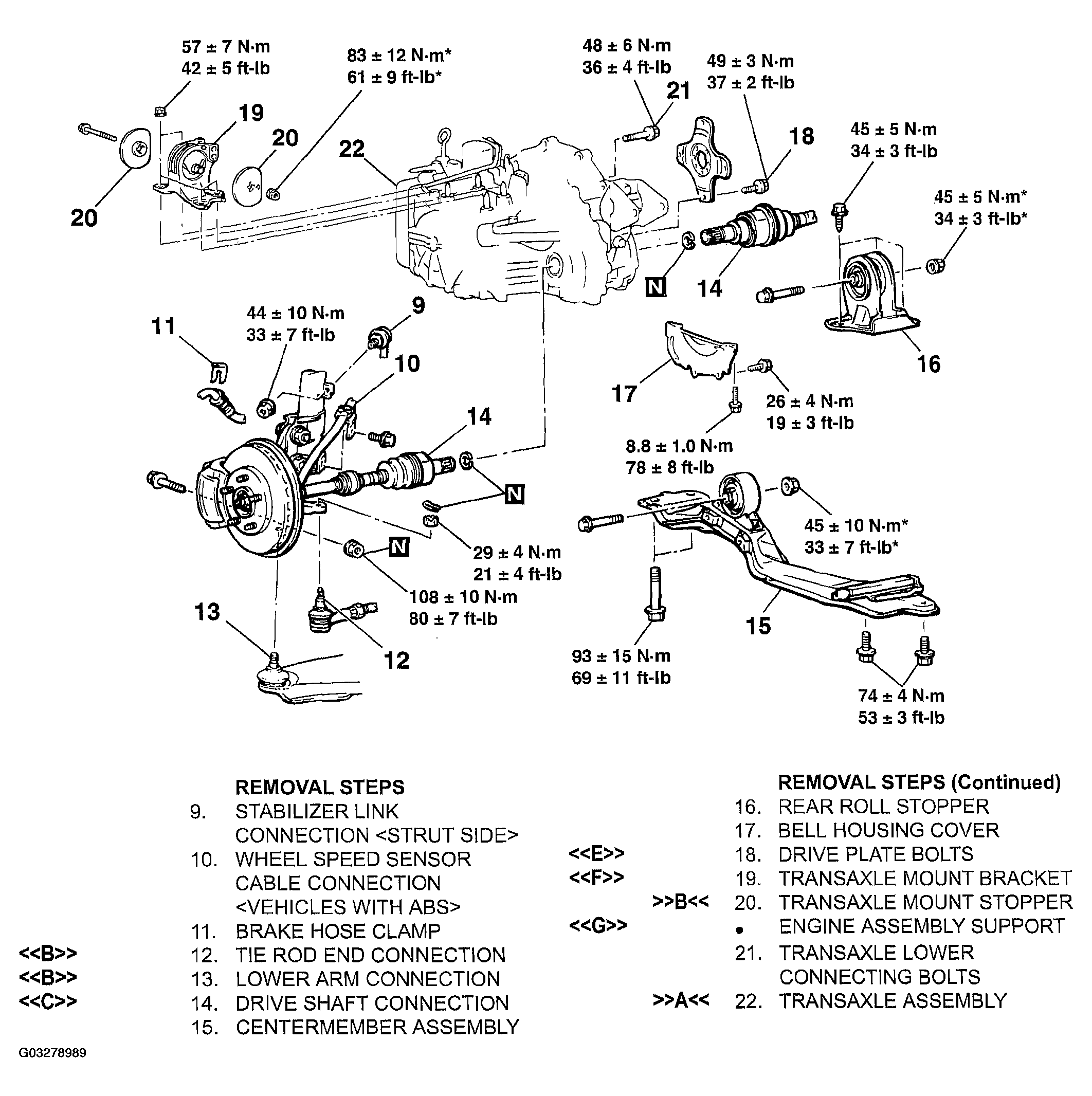

Fig 2: Removal/Installation Of Transaxle Assembly (2.4L Engine) (2 Of 2)
G03278989Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special Tools:
