Transaxle Control: Inspection

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

Check the cable assembly for function and for damage.

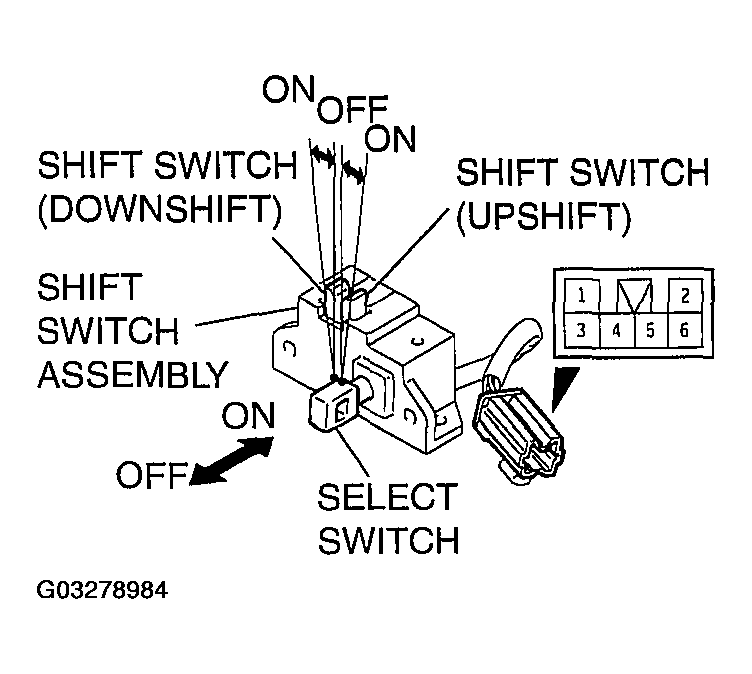

Fig 1: Identifying Shift Switch Positions And Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

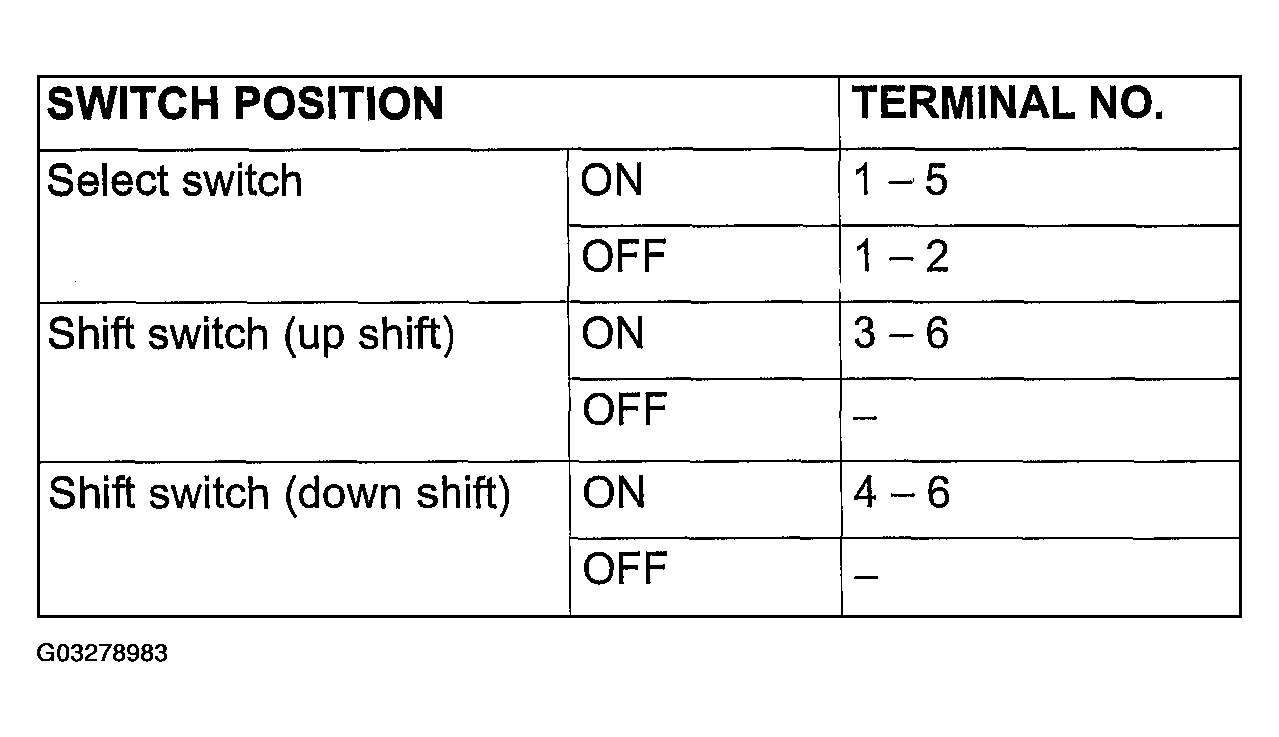

Fig 2: Shift Switch Assembly Continuity Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
