Fan Control Relay Continuity Check

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

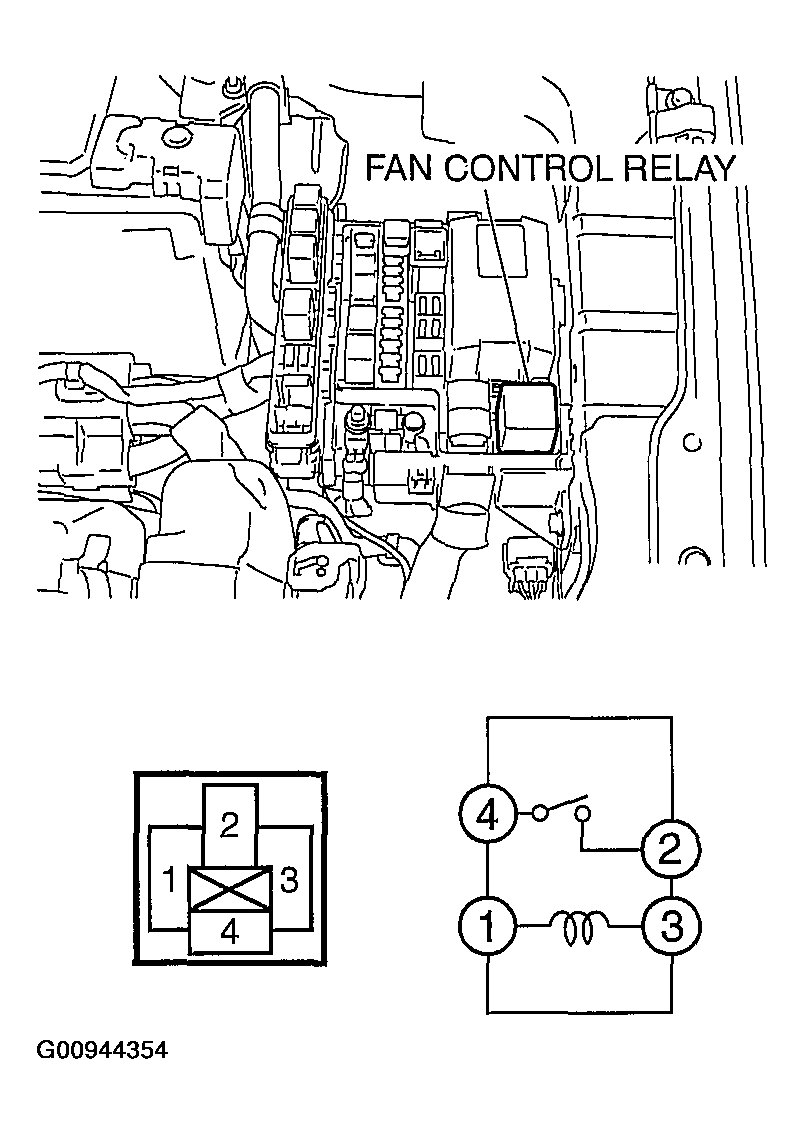

Fig 1: Identifying Fan Control Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

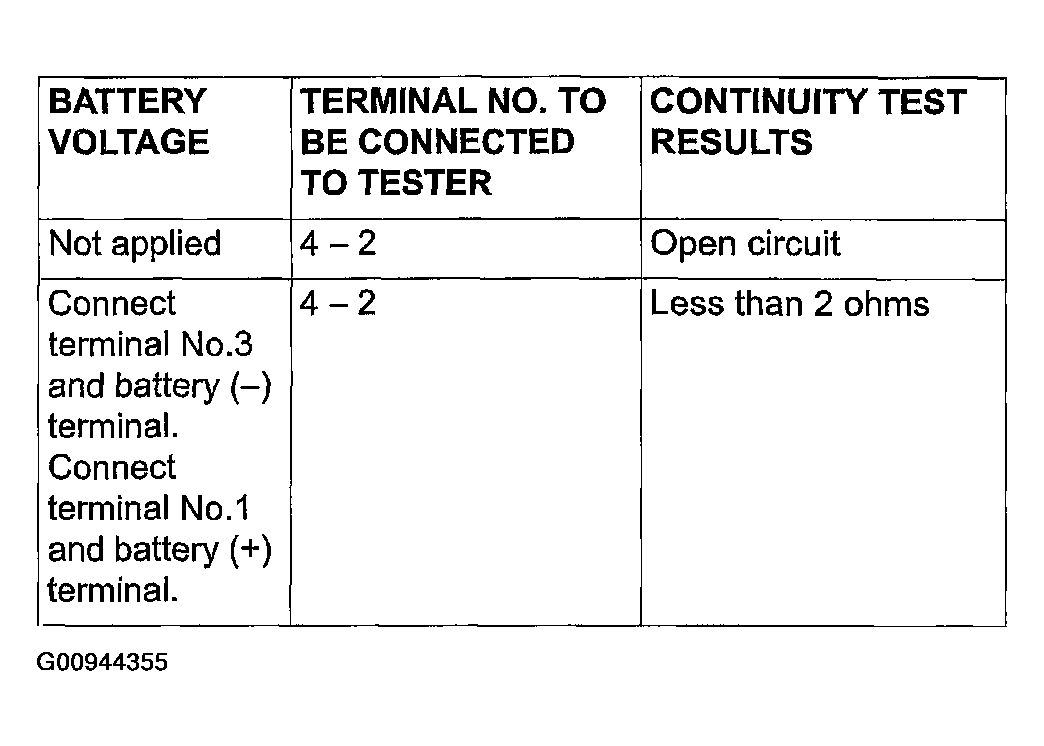

Fig 2: Fan Control Relay Continuity Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
